Altima GXE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Vehicle Security (Theft Warning) System
>>
Diagnostic Strategies
Diagnostic Strategies

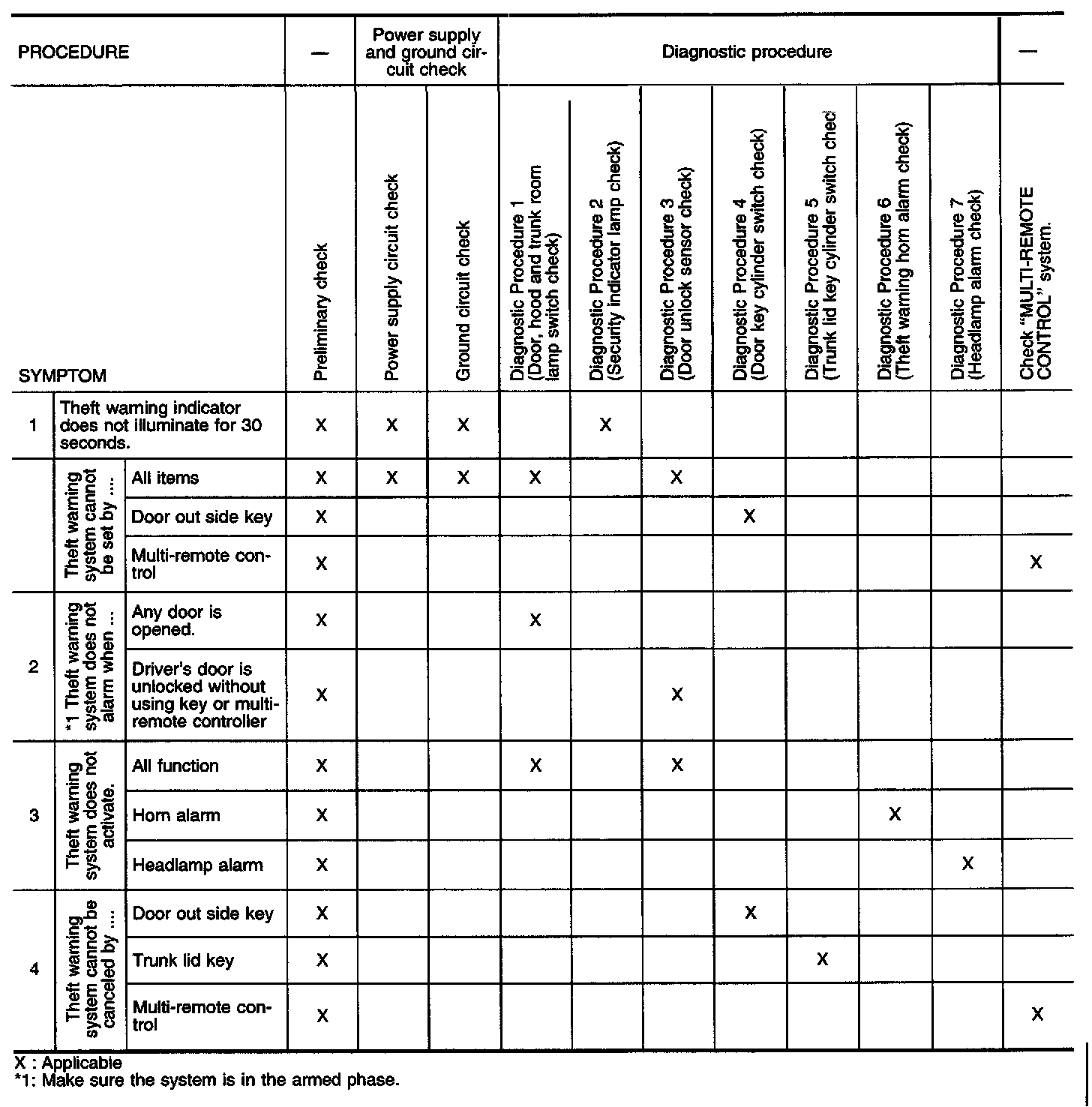

SYMPTOM CHART
Before starting trouble diagnoses below, perform preliminary check.
Symptom numbers in the symptom chart correspond with those of preliminary check.
