Home >> Nissan-Datsun >> 2000 >> Altima GXE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Vehicle Security (Theft Warning) System >> Diagnosis By Symptom >> Diagnostic Procedure 1 >> 1-3

1-3

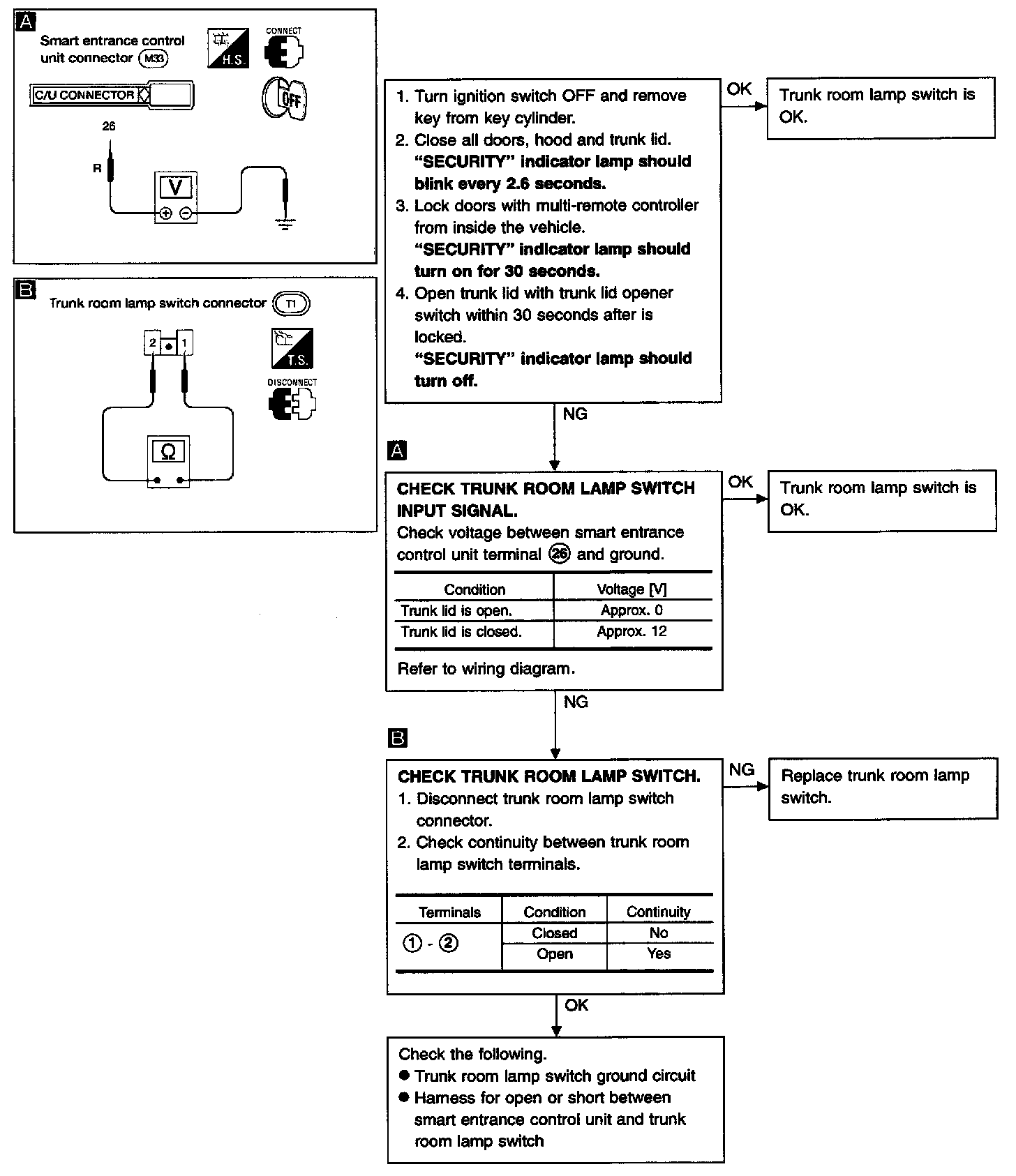

Diagnostic Procedure 1-3
(Trunk room lamp switch check)
