With Manufacturer's Scan Tool

CONSULT-II INSPECTION PROCEDURE





1. Turn ignition switch OFF.

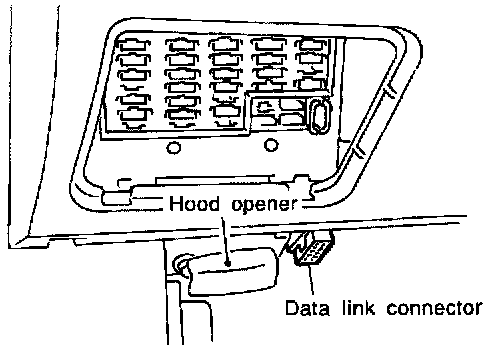

2. Connect "CONSULT-II" to Data link connector for CONSULT-II.





3. Insert NATS program card into CONSULT-II.
<-: Program card
NATS
4. Turn ignition switch ON.

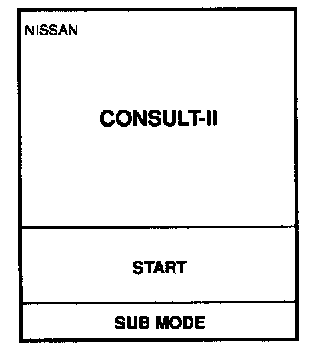

5. Touch "START".

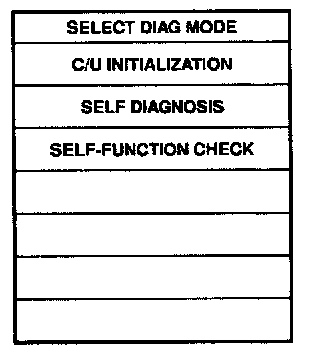

6. Perform each diagnostic test mode according to each service procedure.

For further Information, see the CONSULT-II Operation Manual, IVIS/NVIS.

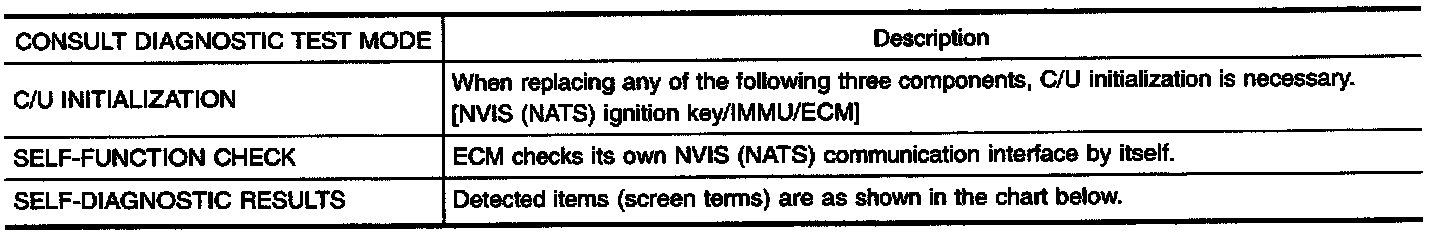

CONSULT-II DIAGNOSTIC TEST MODE FUNCTION

NOTE: When any initialization is performed, all ID previously registered will be erased and all NVIS (NATS) ignition keys must be registered again. The engine cannot be started with an unregistered key. in this case, the system will show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.







HOW TO READ SELF-DIAGNOSTIC RESULTS

*If trip number is more than 1, MIL does not blink.
