NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnosis By Symptom
>>
Symptom Matrix Chart
Symptom Matrix Chart

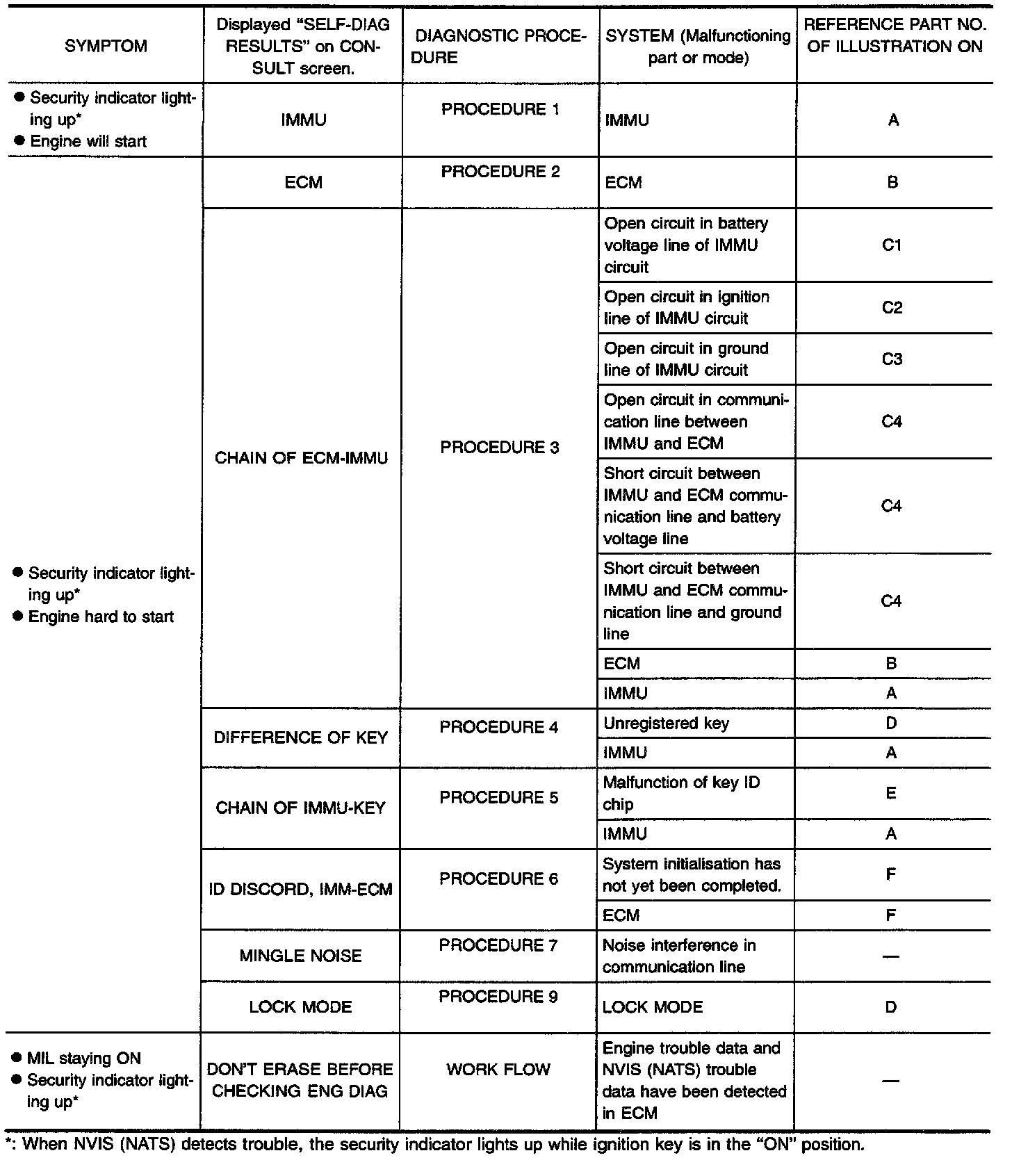

SYMPTOM MATRIX CHART 1
(Self-diagnosis related item)

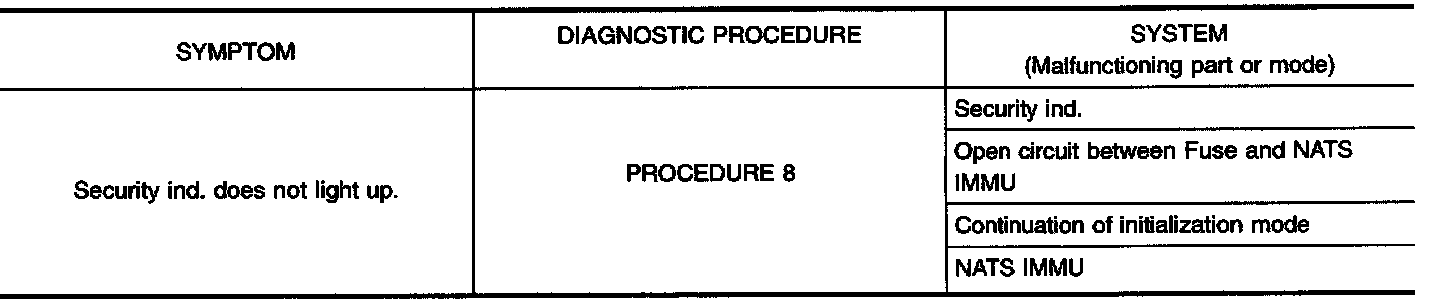

SYMPTOM MATRIX CHART 2
(Non self-diagnosis related item)
