Electrical Component Inspection

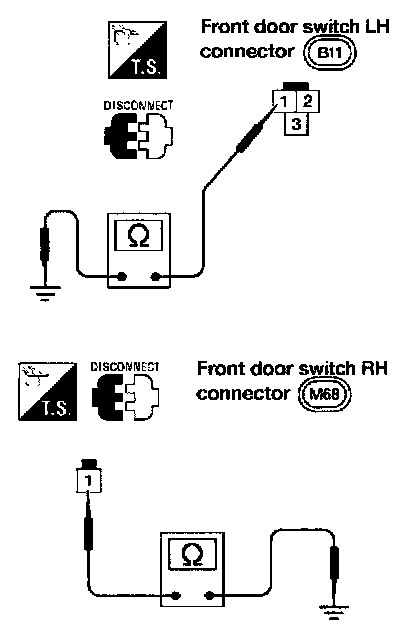

DOOR SWITCHES

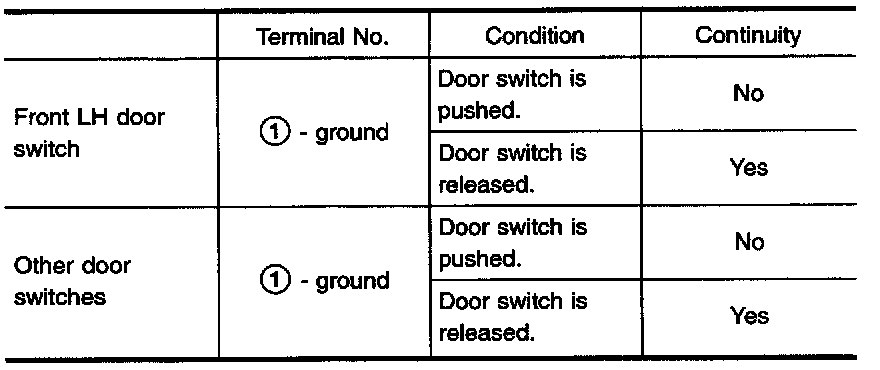

Check continuity between terminals when door switch is pushed and released.

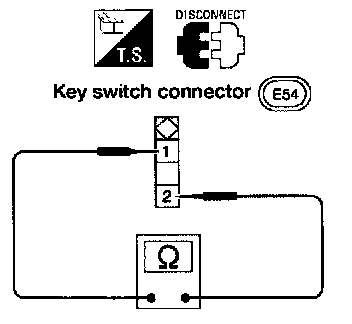

KEY SWITCH (Insert)

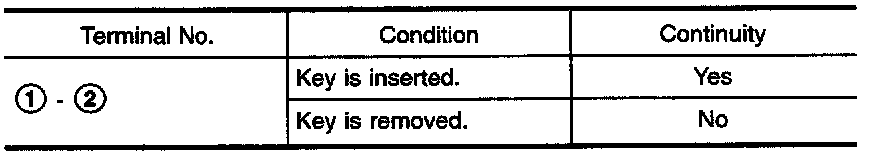

Check continuity between terminals when key is inserted in ignition key cylinder and key is removed from ignition key cylinder.
