Smart Entrance Control Unit

The following Systems are controlled by the smart entrance control unit.
- Warning chime
- Rear window defogger timer
- Power door lock
- Interior lamp timer
- Multi-remote control system
- Theft warning system.
- Battery saver
For detailed description and wiring diagrams, refer to the relevant pages for the each system.

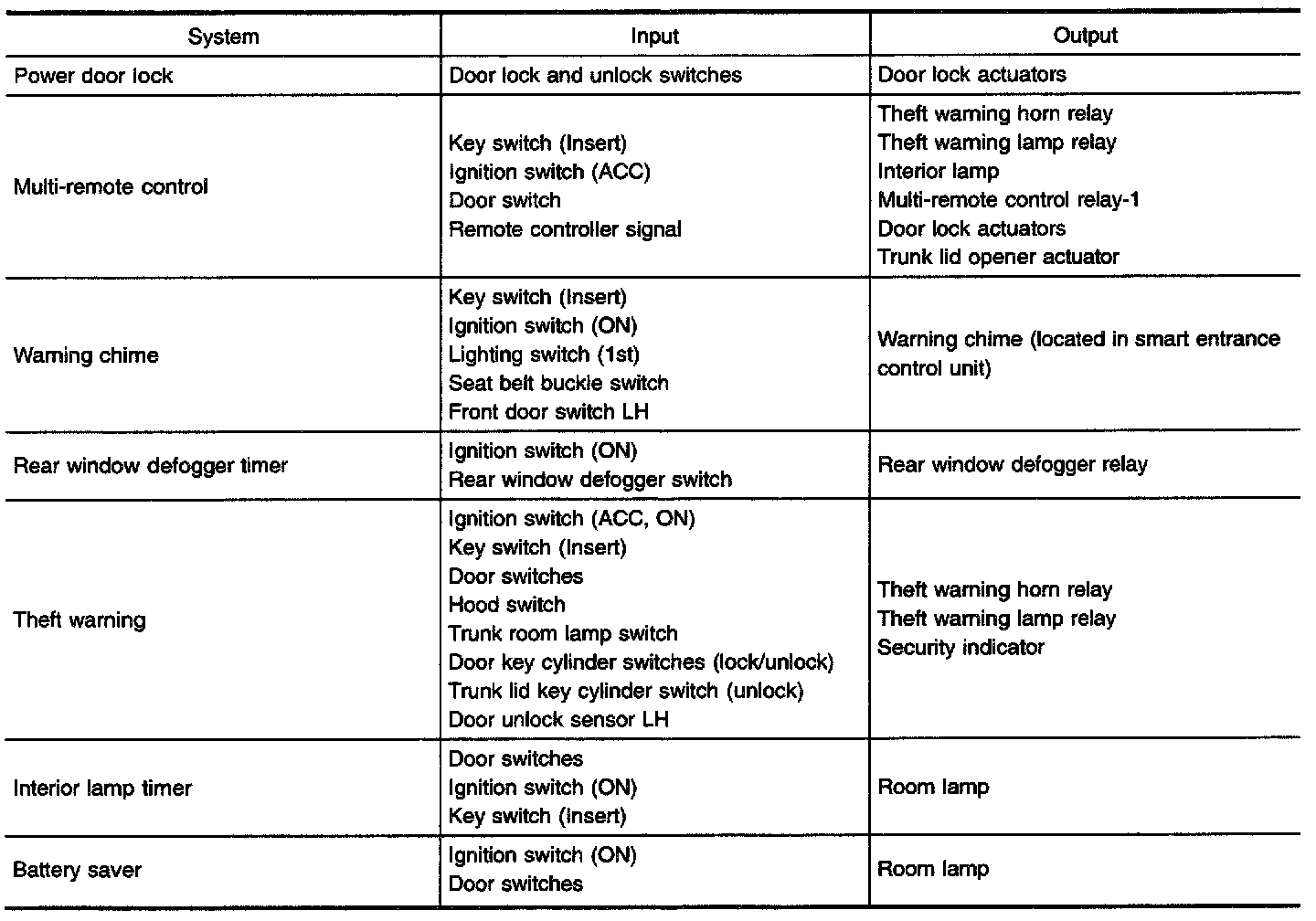

The control unit receives data from the switches and sensors to control their corresponding system relays and actuators.

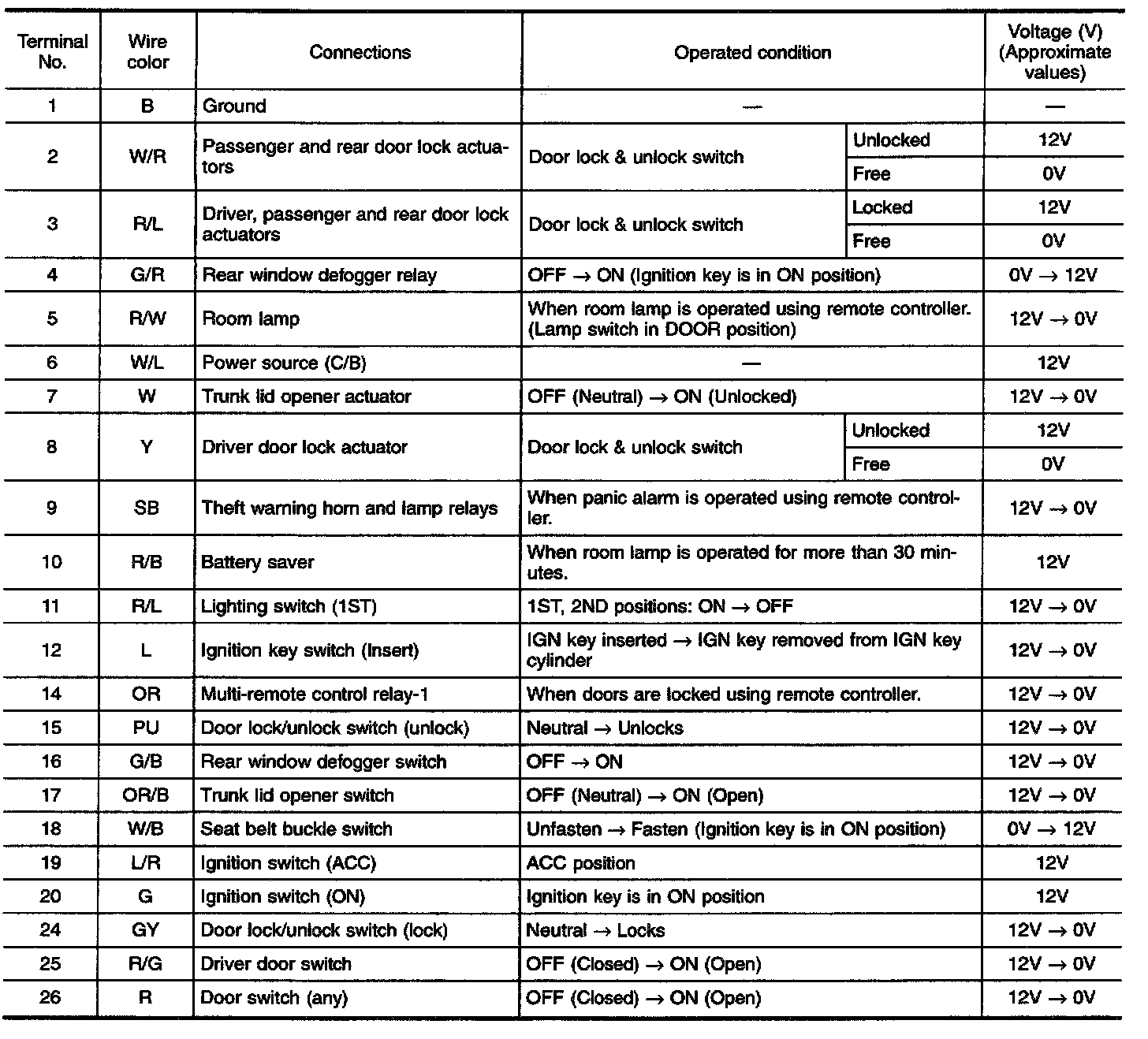

Input/Output Operation Signal





- With theft warning system





- Without theft warning system
