P1400

COMPONENT DESCRIPTION

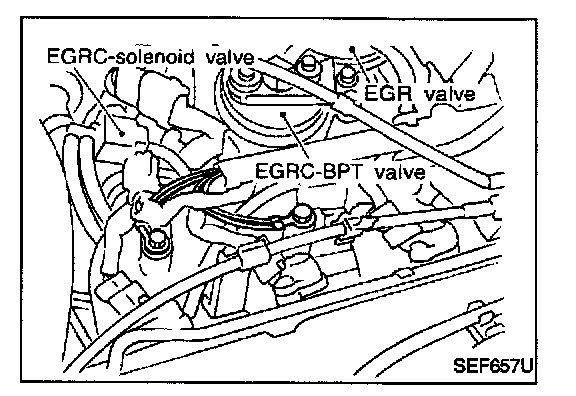

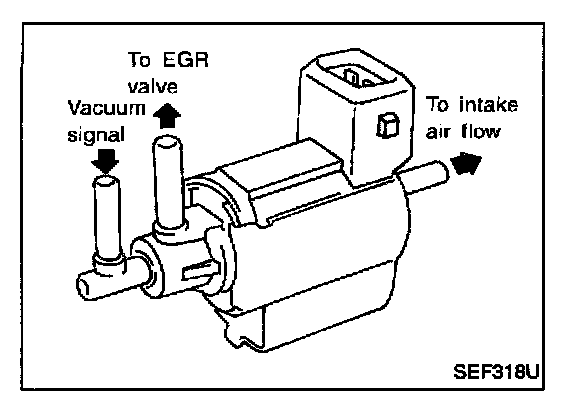

The EGRC-solenoid valve responds to signals from the ECM. When the ECM sends an ON (ground) signal, the coil in the solenoid valve is energized. The vacuum signal passes through the solenoid valve. The signal then reaches the EGR valve. When the ECM sends an OFF signal, a plunger will then move to cut the vacuum signal from the throttle body to the EGR valve.

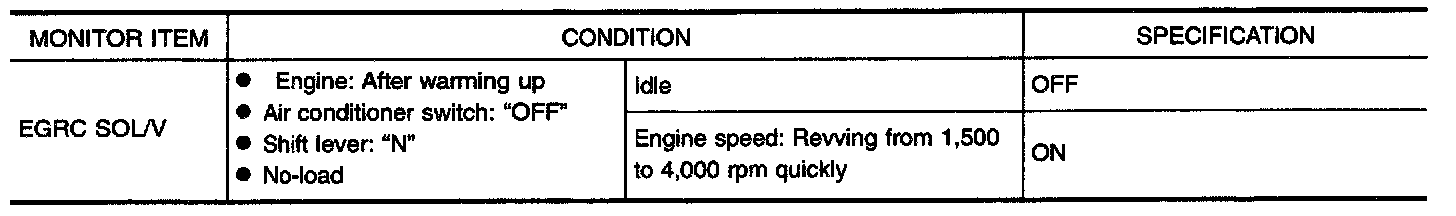

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

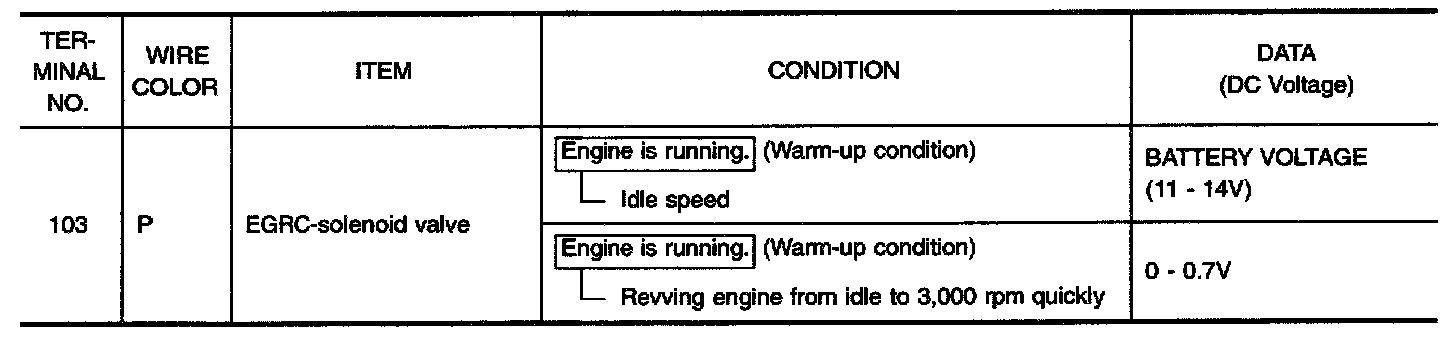

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

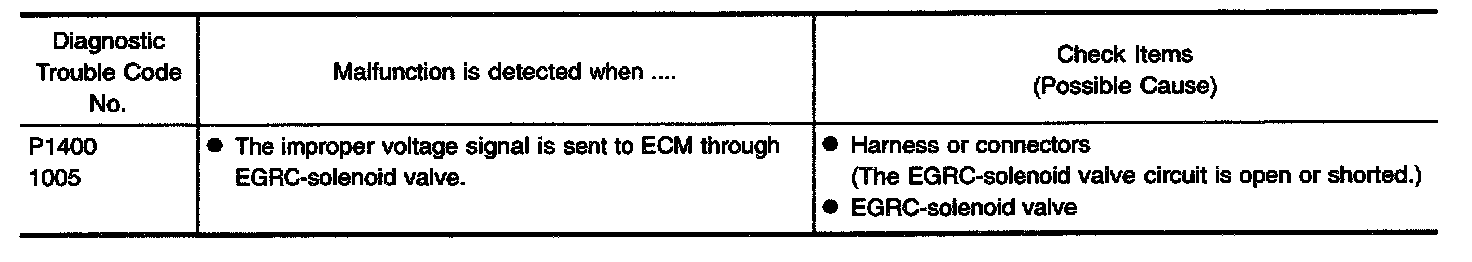

ON BOARD DIAGNOSIS LOGIC:

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With Consult
1. Turn ignition switch "ON".

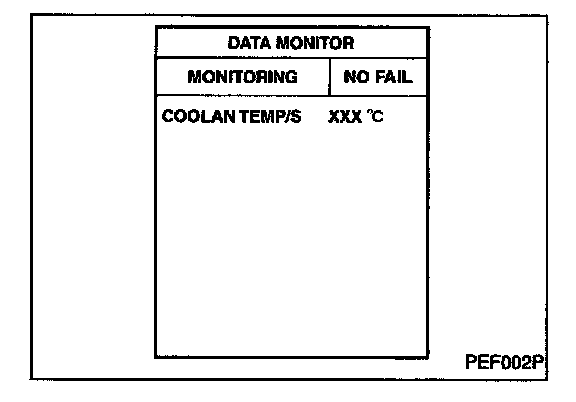

2. Select "DATA MONITOR" mode with CONSULT-II and wait at least 5 seconds .
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

With Generic Scan Tools
1. Turn ignition switch "ON" and wait at least 5 seconds .
2. Select "MODE 7" with GST.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

Without Scan Tools
1. Turn ignition switch "ON" and wait at least 5 seconds .
2. Turn ignition switch "OFF" and wait at least 5 seconds .
3. Turn ignition switch "ON" and perform "Diagnostic Test Mode (Self-diagnostic results)" with ECM.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

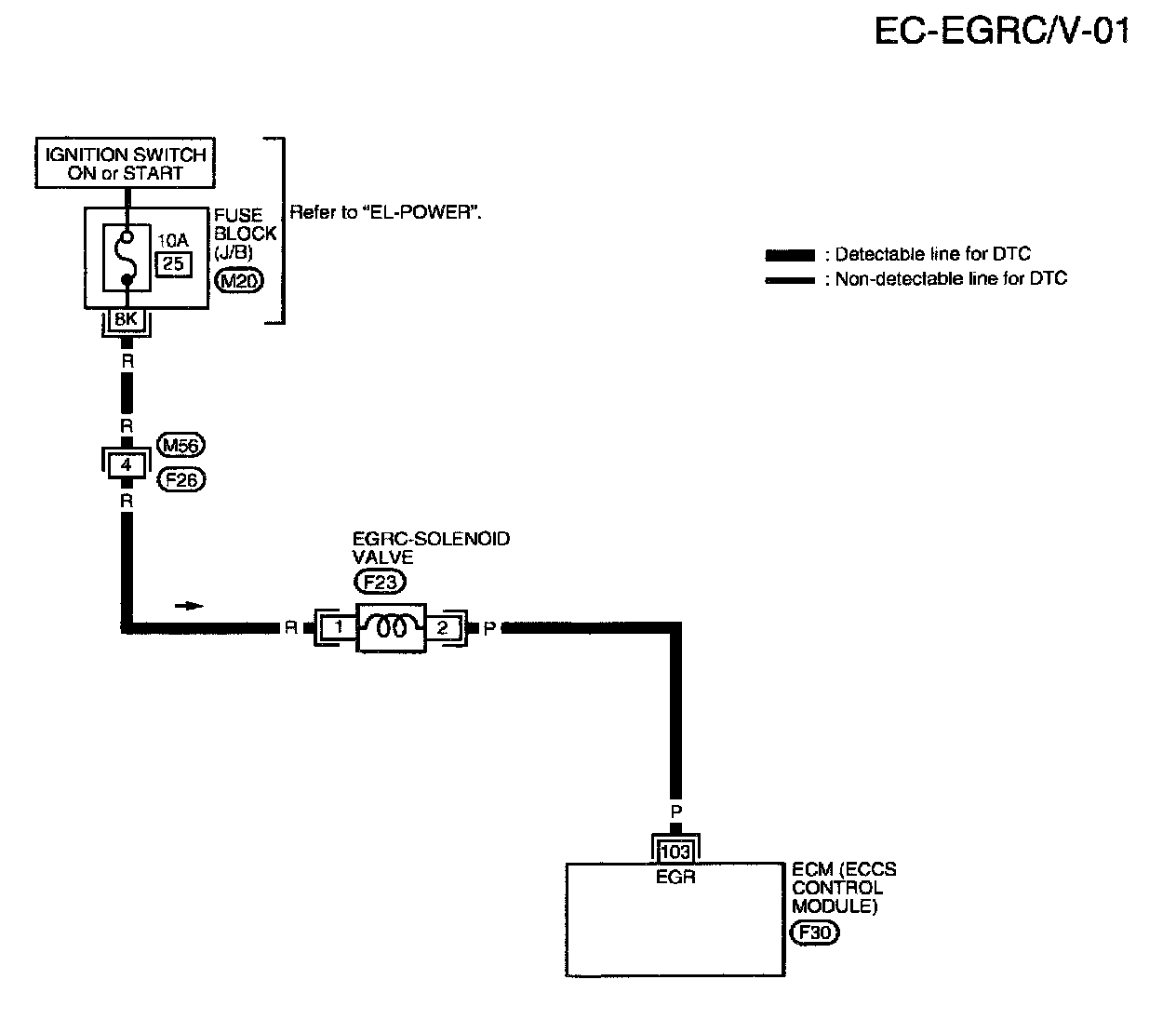

EC-EGRC/V-01:

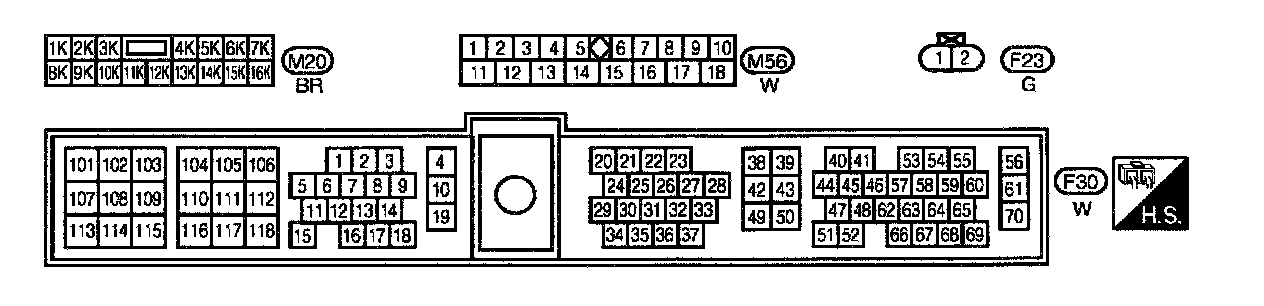

EC-EGRC/V-01 - Connector View:

WIRING DIAGRAM

Diagnostic Procedure:

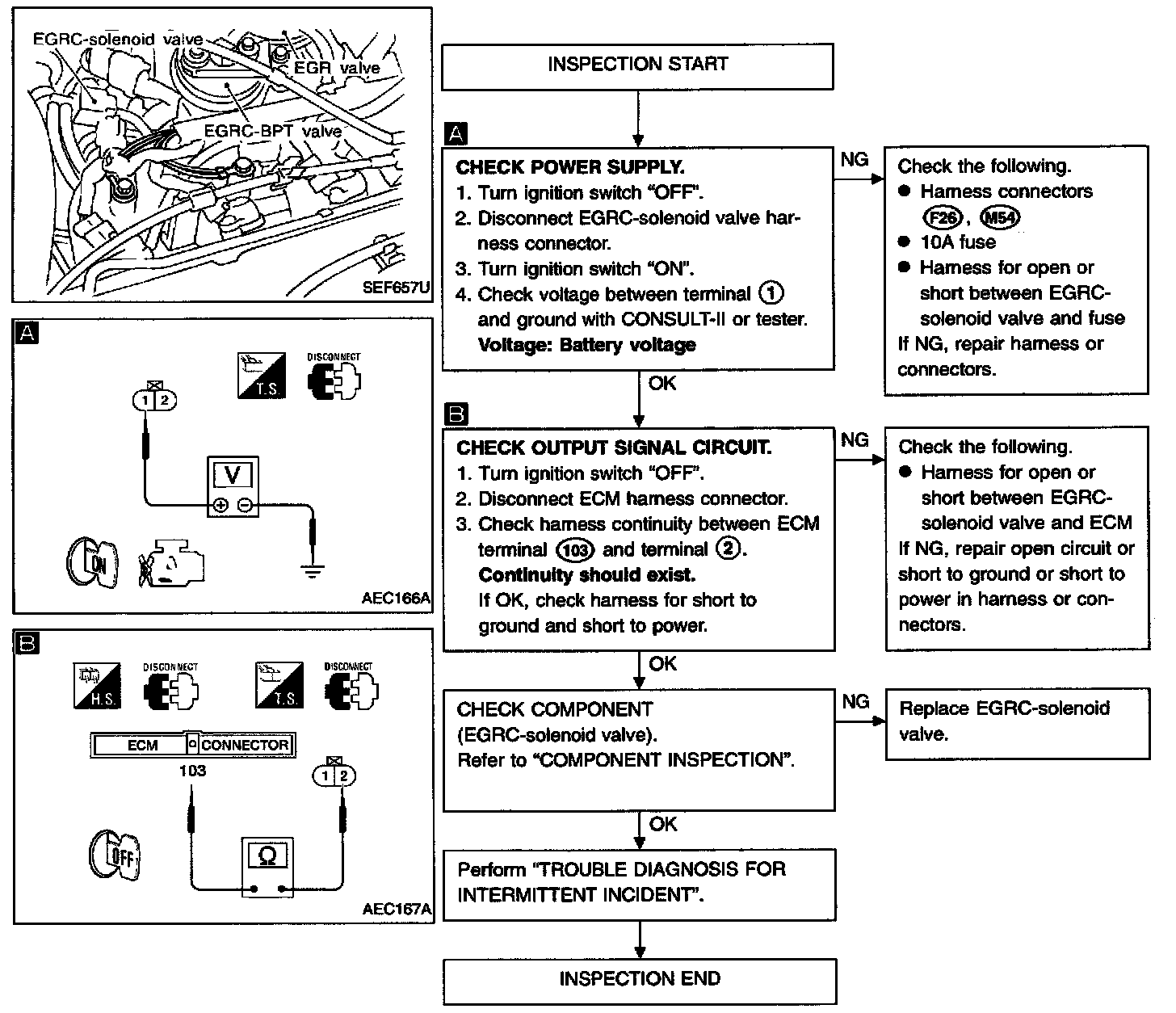

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

EGRC-solenoid valve







With Consult

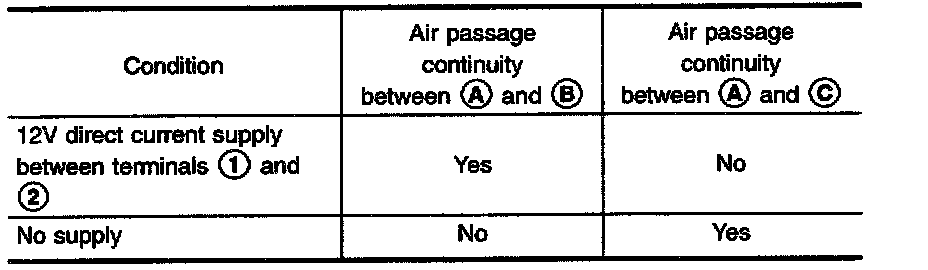

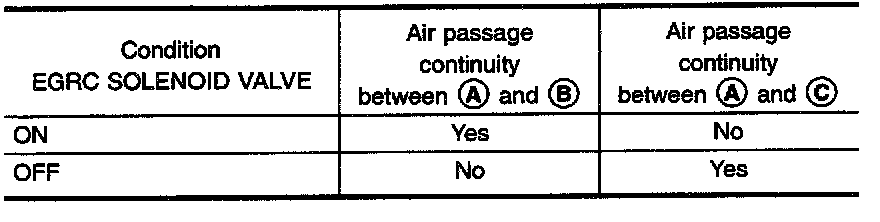

Check air passage continuity.

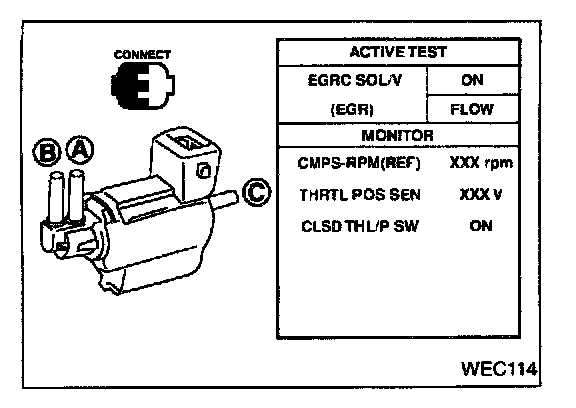

Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode

OR

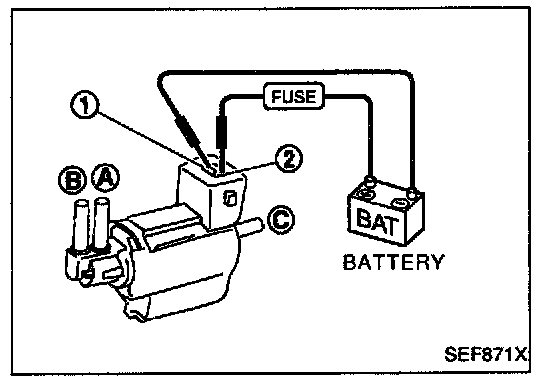

Without Consult
If NG or operation takes more than 1 second, replace EGRC- solenoid valve.
