P0510

COMPONENT DESCRIPTION
A closed throttle position switch and wide open throttle position switch are built into the throttle position sensor unit. The wide open throttle position switch is used only for A/T control.
When the throttle valve is in the closed position, the closed throttle position switch sends a voltage signal to the ECM. The ECM only uses this signal to open or close the EVAP canister purge volume control solenoid valve when the throttle position sensor is malfunctioning.

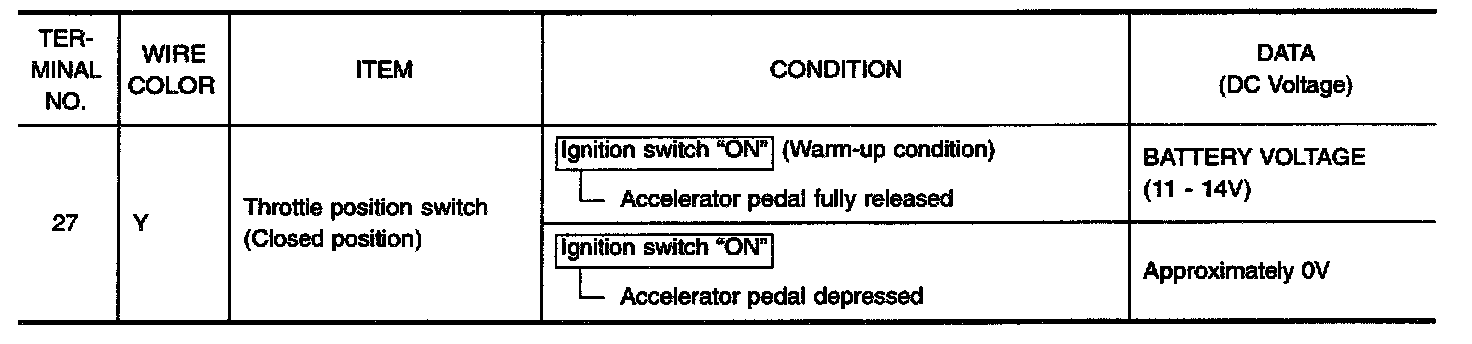

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

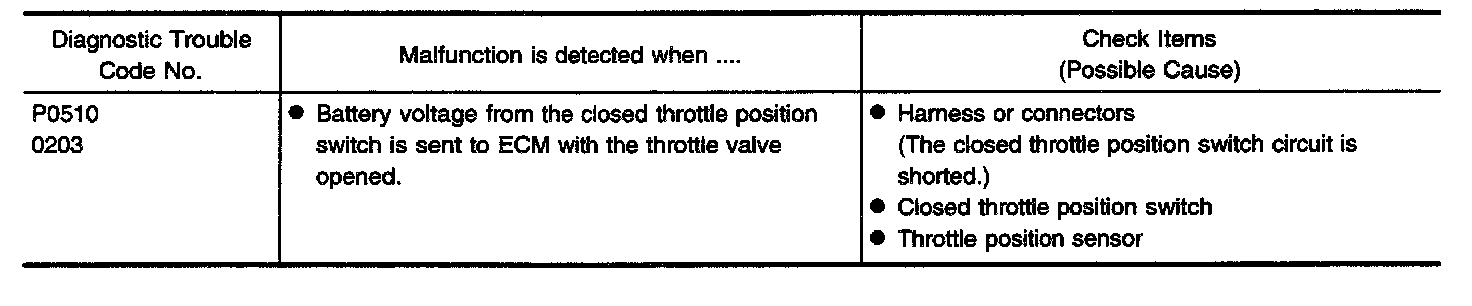

ON BOARD DIAGNOSIS LOGIC:

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With Consult
1. Start engine and warm it up to normal operating temperature.

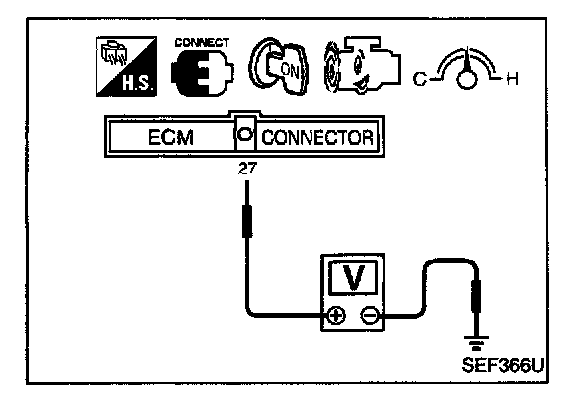

2. Check voltage between ECM terminal (27) and ground under the following conditions.
At idle: Battery voltage
At 2,000 rpm: 0 - 1V
If the check result is NG, go to "Diagnostic Procedure" below.
If OK, go to following step.

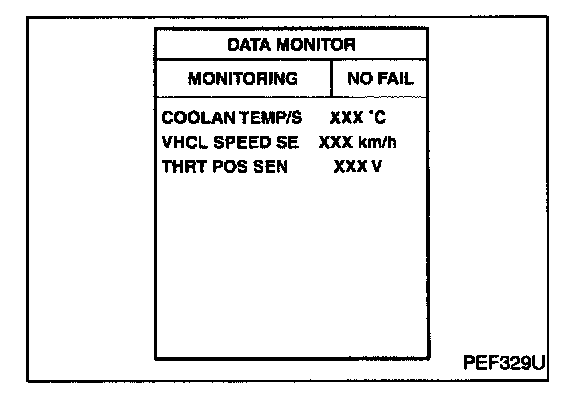

3. Select "DATA MONITOR" mode with CONSULT-II at the start of the test.
4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
THRTL POS SEN: More than 2.5V
VHCL SPEED SE: More than 4 kph (2 MPH)
Selector lever: Suitable position
Driving pattern: Driving vehicle uphill (Increased engine load) will help maintain the driving conditions required for this test.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the closed throttle position switch circuit. During this check, a 1st trip DTC might not be confirmed.

Without Consult
1. Start engine and warm it up to normal operating temperature.
2. Check the voltage between ECM terminal (27)and ground under the following conditions.
At idle: Battery voltage
At 2,000 rpm: Approximately 0V
3. If NG, go to "Diagnostic Procedure" below.

EC-TP/SW-01:

EC-TP/SW-01 - Connector View:

WIRING DIAGRAM

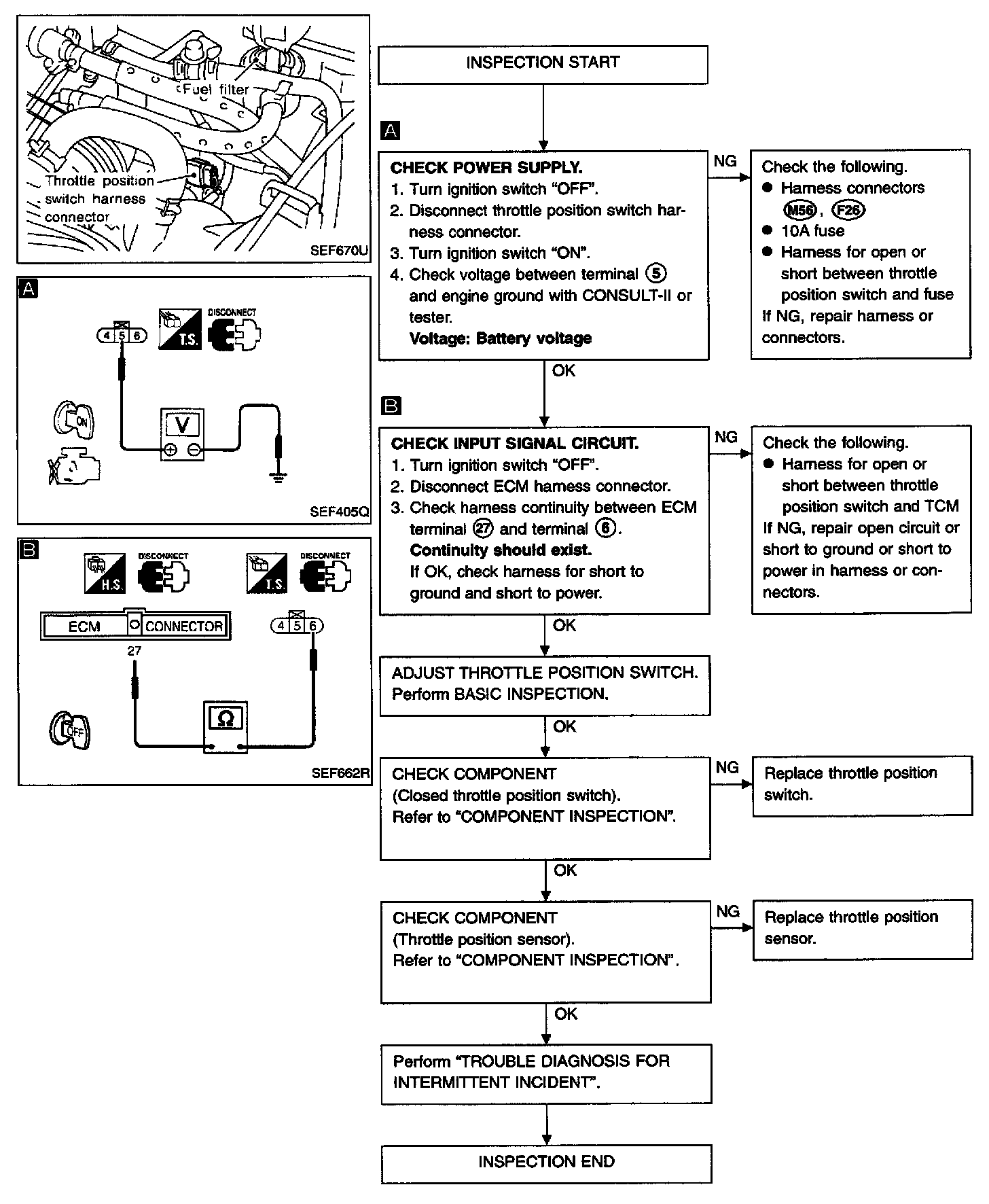

Diagnostic Procedure:

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION
Closed throttle position switch







With Consult
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and turn ignition switch "ON ".
3. Select "DATA MONITOR" mode with CONSULT-II.
4. Check indication of "CLSD THL/P SW".
Measurement must be made with closed throttle position switch installed in vehicle.
If NG, adjust closed throttle position switch. Refer to "Basic Inspection".
5. If it is impossible to adjust closed throttle position switch in "Basic Inspection", replace closed throttle position switch.

OR







Without Consult
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF ".
3. Disconnect closed throttle position switch harness connector.
4. Check continuity between terminals (5)and (6).
Resistance measurement must be made with closed throttle position switch installed in vehicle.
If NG, adjust closed throttle position switch. Refer to "Basic Inspection".
5. If it is impossible to adjust closed throttle position switch in "Basic Inspection", replace closed throttle position switch.










Throttle position sensor

With Consult
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and turn ignition switch "ON".

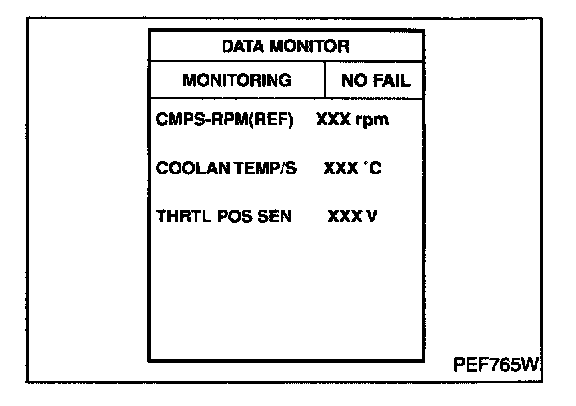

3. Select "DATA MONITOR" mode with CONSULT-II.

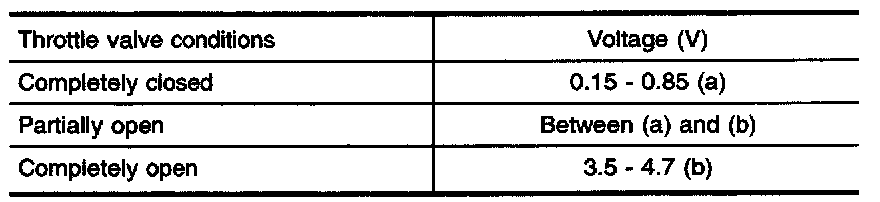

4. Check voltage of "THRTL POS SEN".
Voltage measurement must be made with throttle position sensor installed in vehicle.
If NG, adjust closed throttle position switch. Refer to "Basic Inspection".
5. If it is impossible to adjust closed throttle position switch in "Basic Inspection", replace throttle position sensor.

OR

Without Consult
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and turn ignition switch "ON".

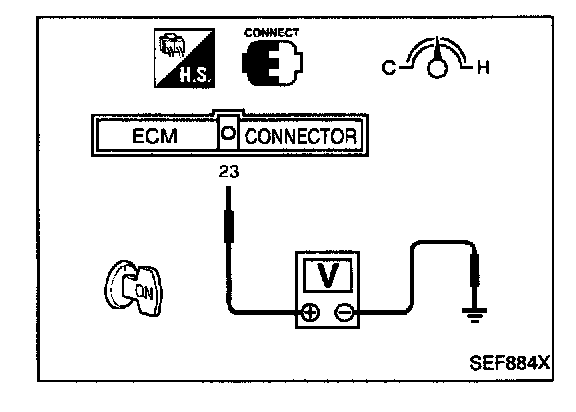

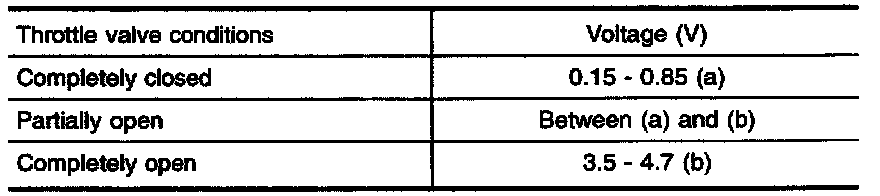

3. Check voltage between ECM terminal (23) (Throttle position sensor signal) and ground.
Voltage measurement must be made with throttle position sensor installed in vehicle.
If NG, adjust closed throttle position switch. Refer to "Basic Inspection".




4. If it is impossible to adjust closed throttle position switch in "Basic Inspection", replace throttle position sensor.
