P0450

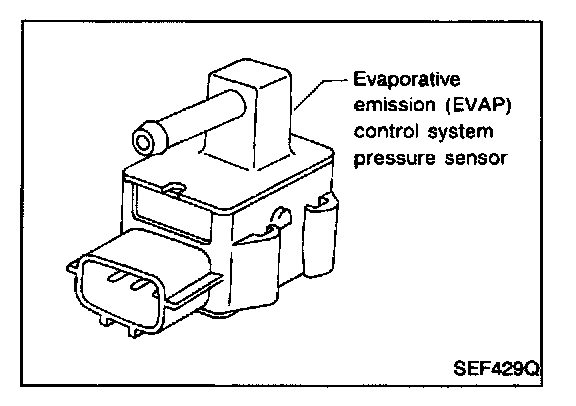

COMPONENT DESCRIPTION

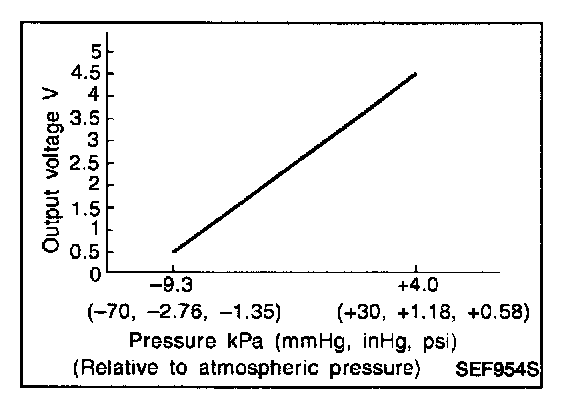

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases. The EVAP control system pressure sensor is not used to control the engine system. It is used only for on board diagnosis.

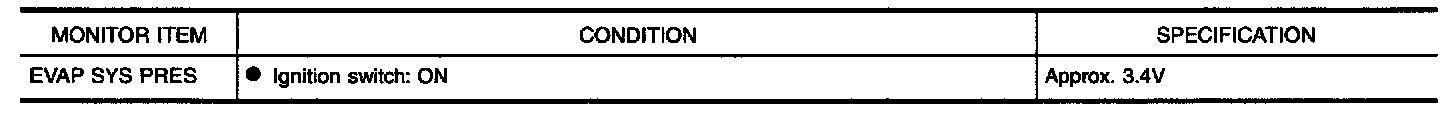

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values

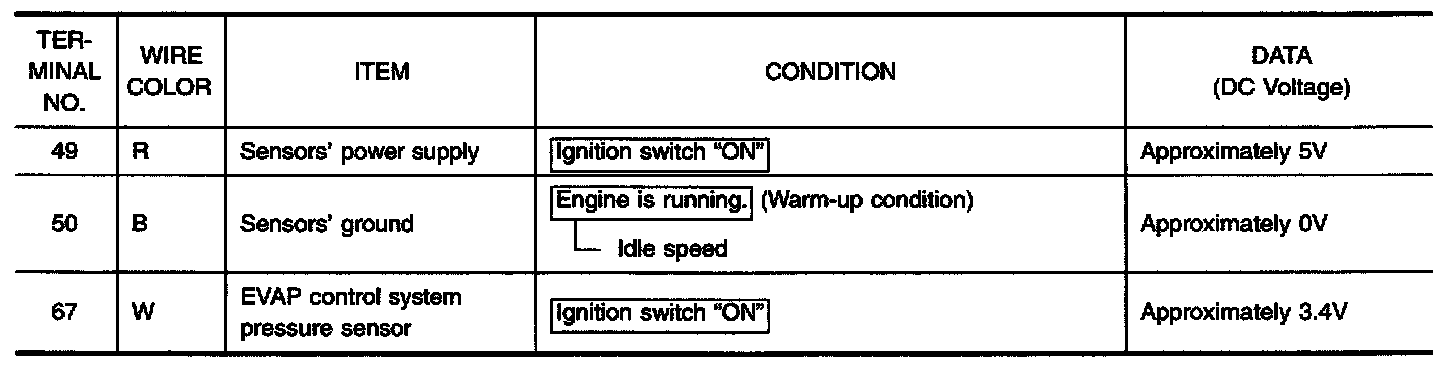

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

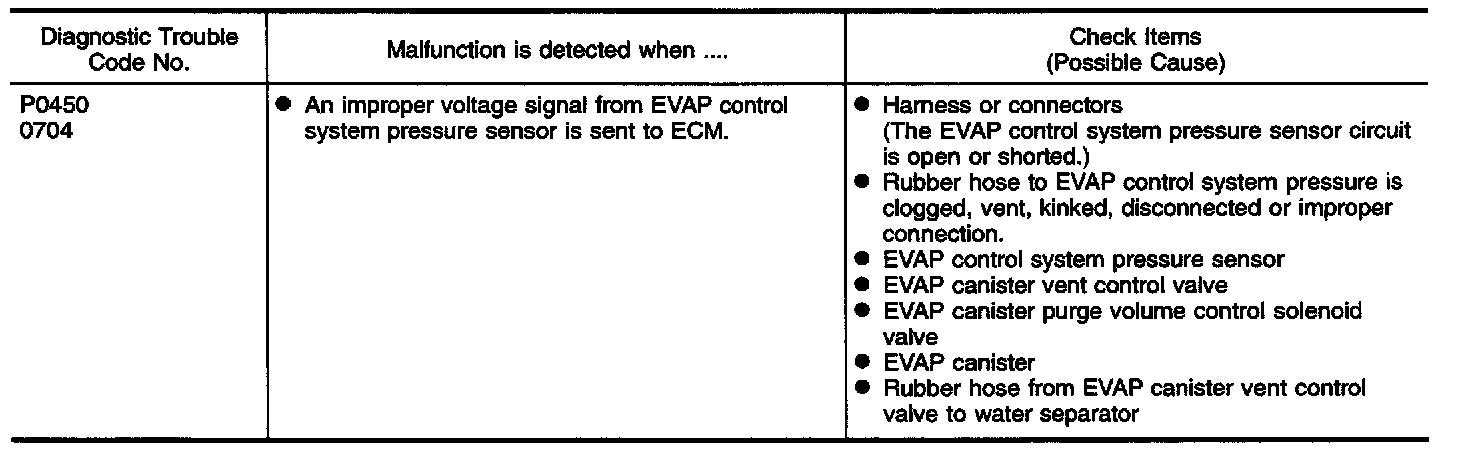

ON BOARD DIAGNOSIS LOGIC:

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and waft at least 5 seconds before conducting the next test.

TESTING CONDITION: Always perform at a temperature above 0°C (32°F).

With Consult
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 5 seconds .
3. Turn ignition switch "ON ".

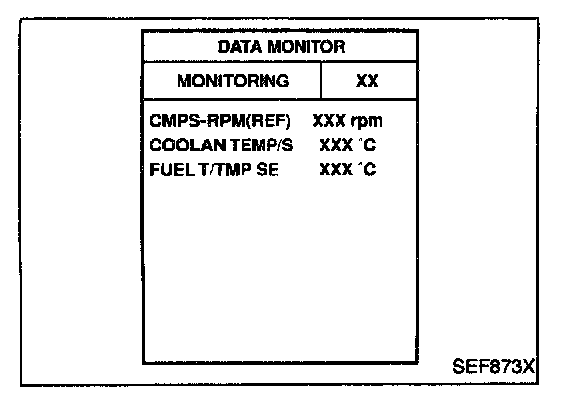

4. Select "DATA MONITOR" mode with CONSULT-II.
5. Make sure that "FUEL T/TMP SE" is more than 0°C (32°F).
6. Start engine and wait at least 20 seconds.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

With Generic Scan Tools
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal (63) and ground is less than 4.2V.
3. Turn ignition switch "OFF" and wait at least 5 seconds .
4. Start engine and wait at least 20 seconds.
5. Select "MODE 7", with GST.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

Without Scan Tools
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal (63) and ground is less than 4.2V.
3. Turn ignition switch "OFF" and wait at least 5 seconds .
4. Start engine and wait at least 20 seconds.
5. Turn ignition switch "OFF ", wait at least 5 seconds and then turn "ON".
6. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

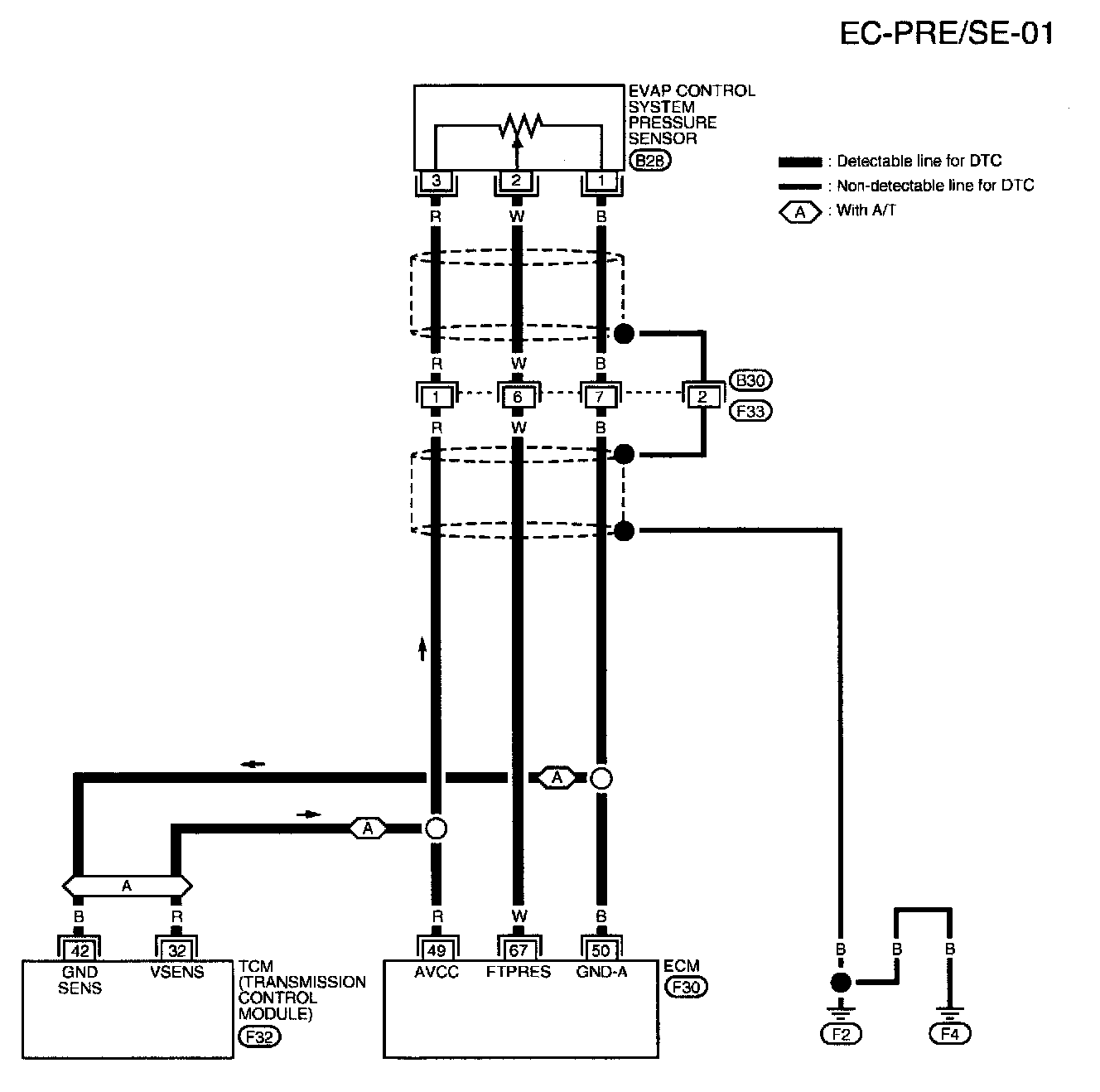

EC-PRE/SE-01:

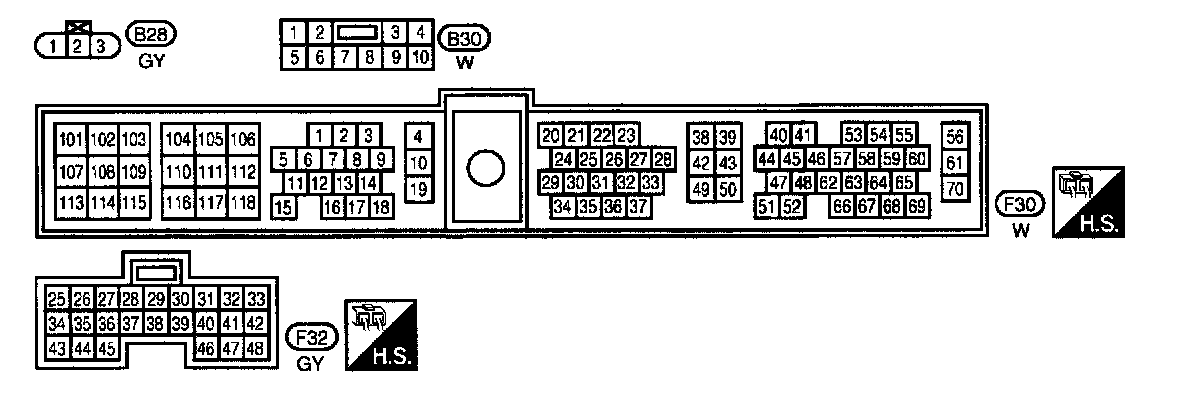

EC-PRE/SE-01 - Connector View:

WIRING DIAGRAM

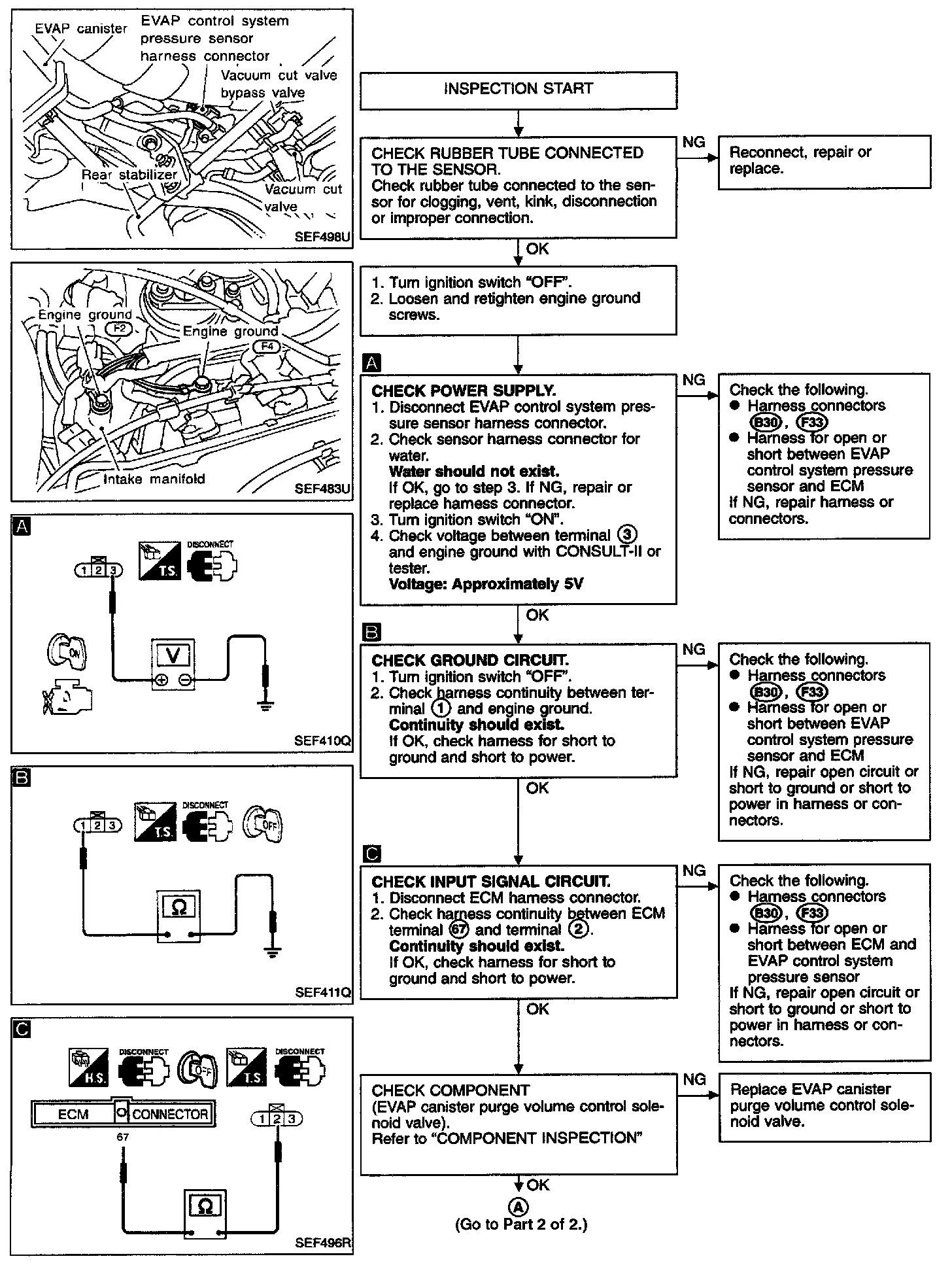

Diagnostic Procedure (Part 1 Of 2):

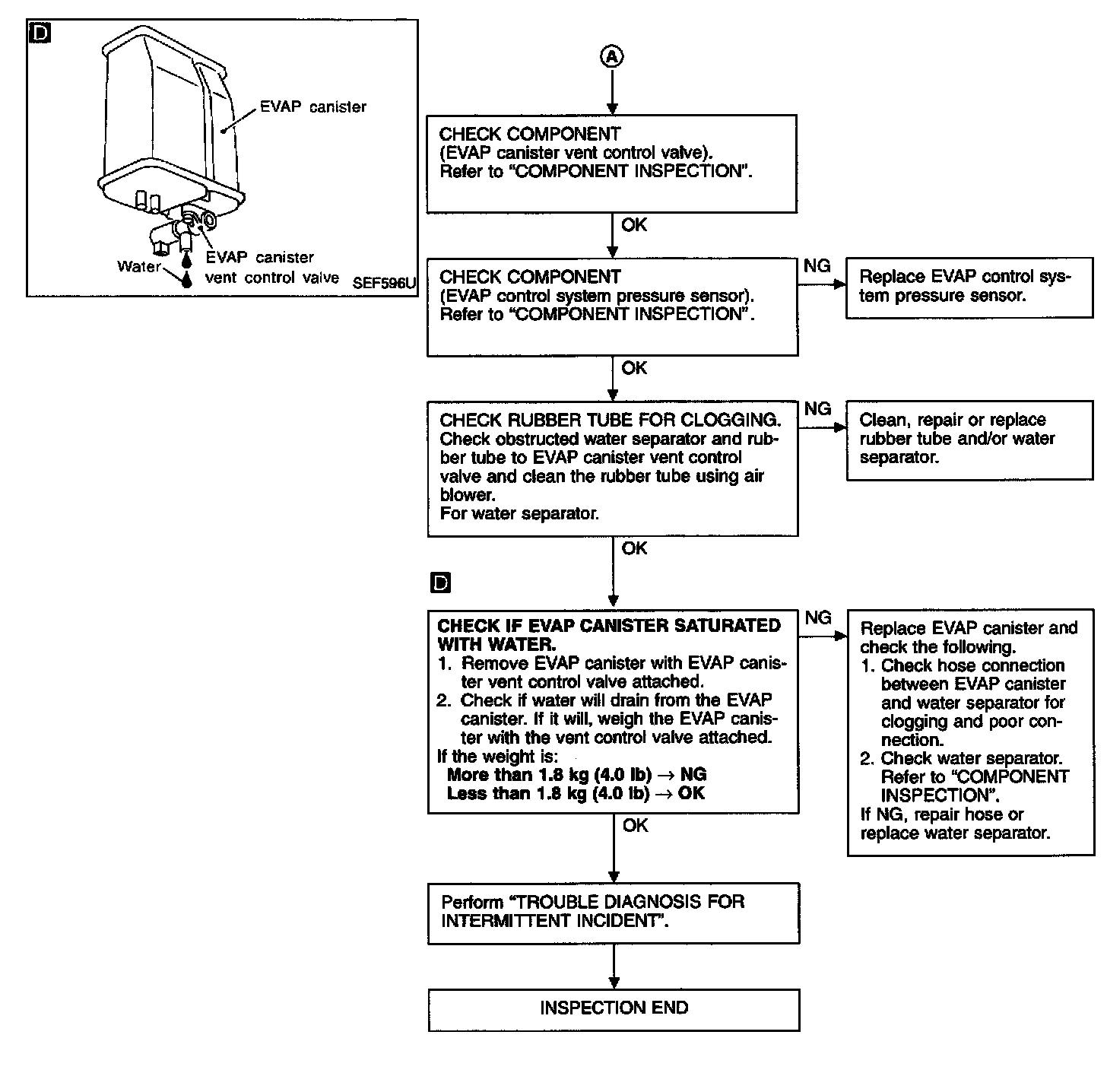

Diagnostic Procedure (Part 2 Of 2):

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION










EVAP control system pressure sensor

1. Remove EVAP control system pressure sensor with its harness connector connected.
2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch "ON ".

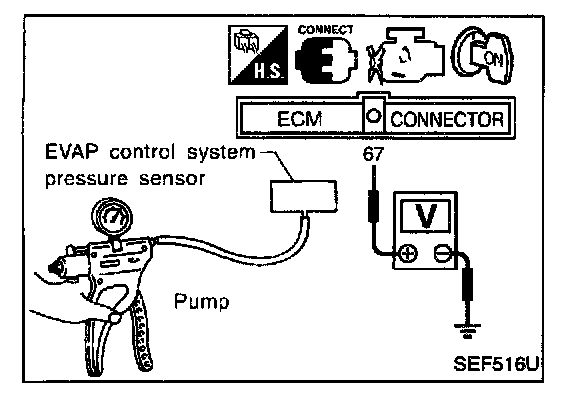

4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

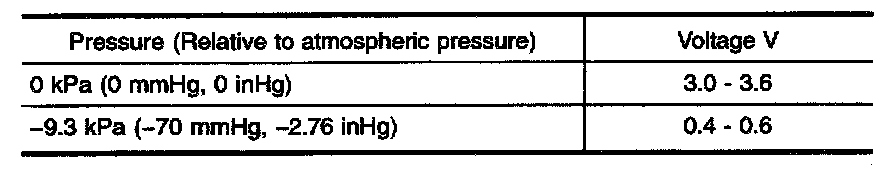

5. Check output voltage between ECM terminal (67) and engine ground.

CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply pressure over 20.0 kPa (150 mmHg, 5.91 in Hg) or vacuum below -20.0 kPa (-150 mmHg, -5.91 inHg).

6. If NG, replace EVAP control system pressure sensor.

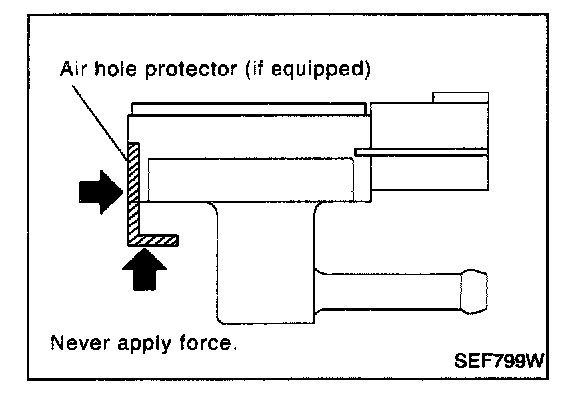

- Never apply force to the air hole protector of the sensor, if equipped.
- Discard any EVAP control system pressure sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
