Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Tools and Equipment

Manual Transmission/Transaxle: Tools and Equipment

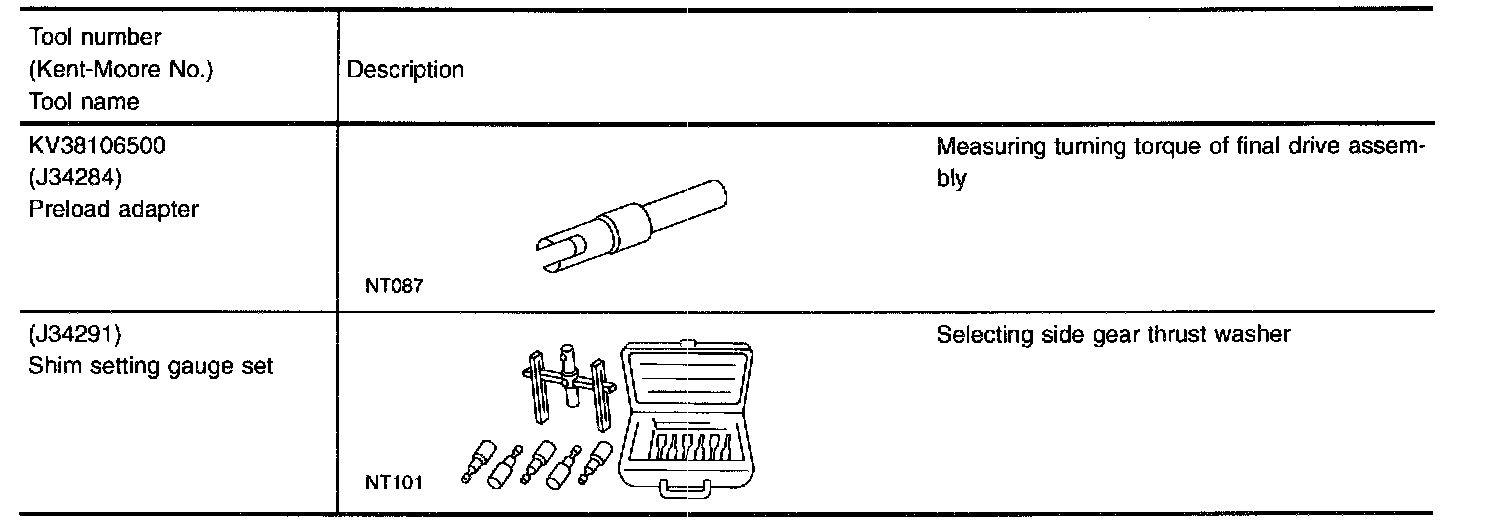

Part 1 Of 3:

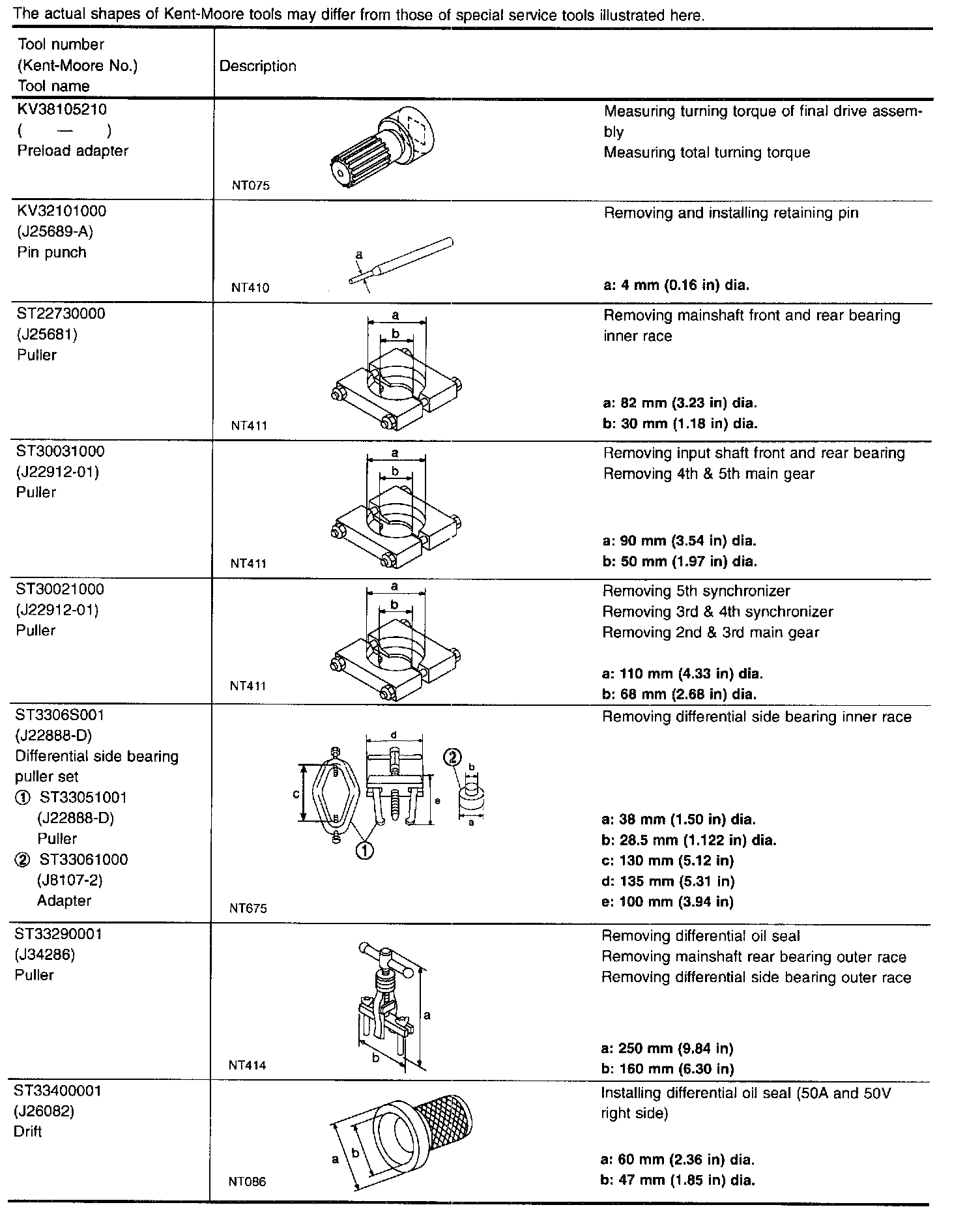

Part 2 Of 3:

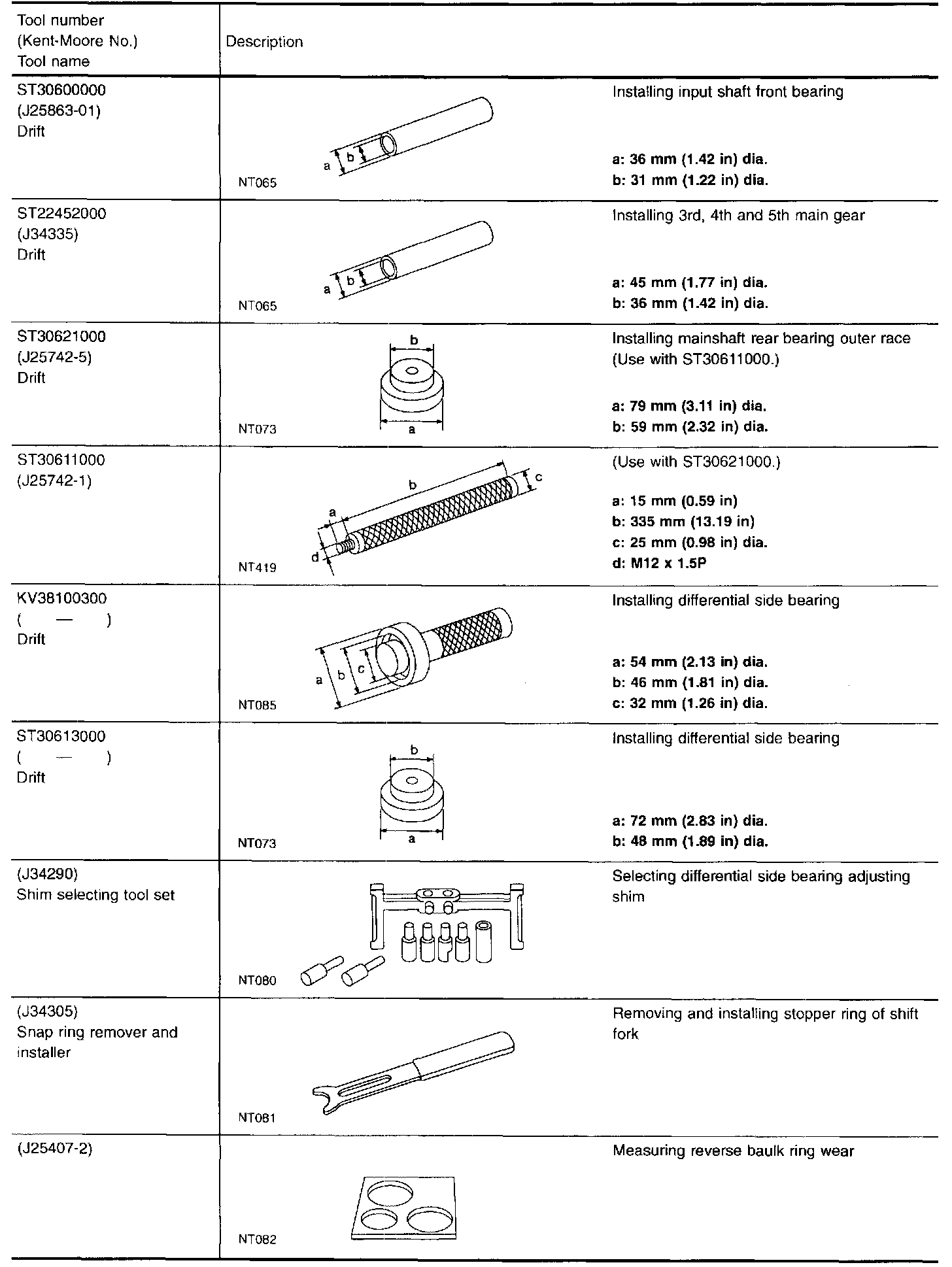

Part 3 Of 3:





Special Service Tools

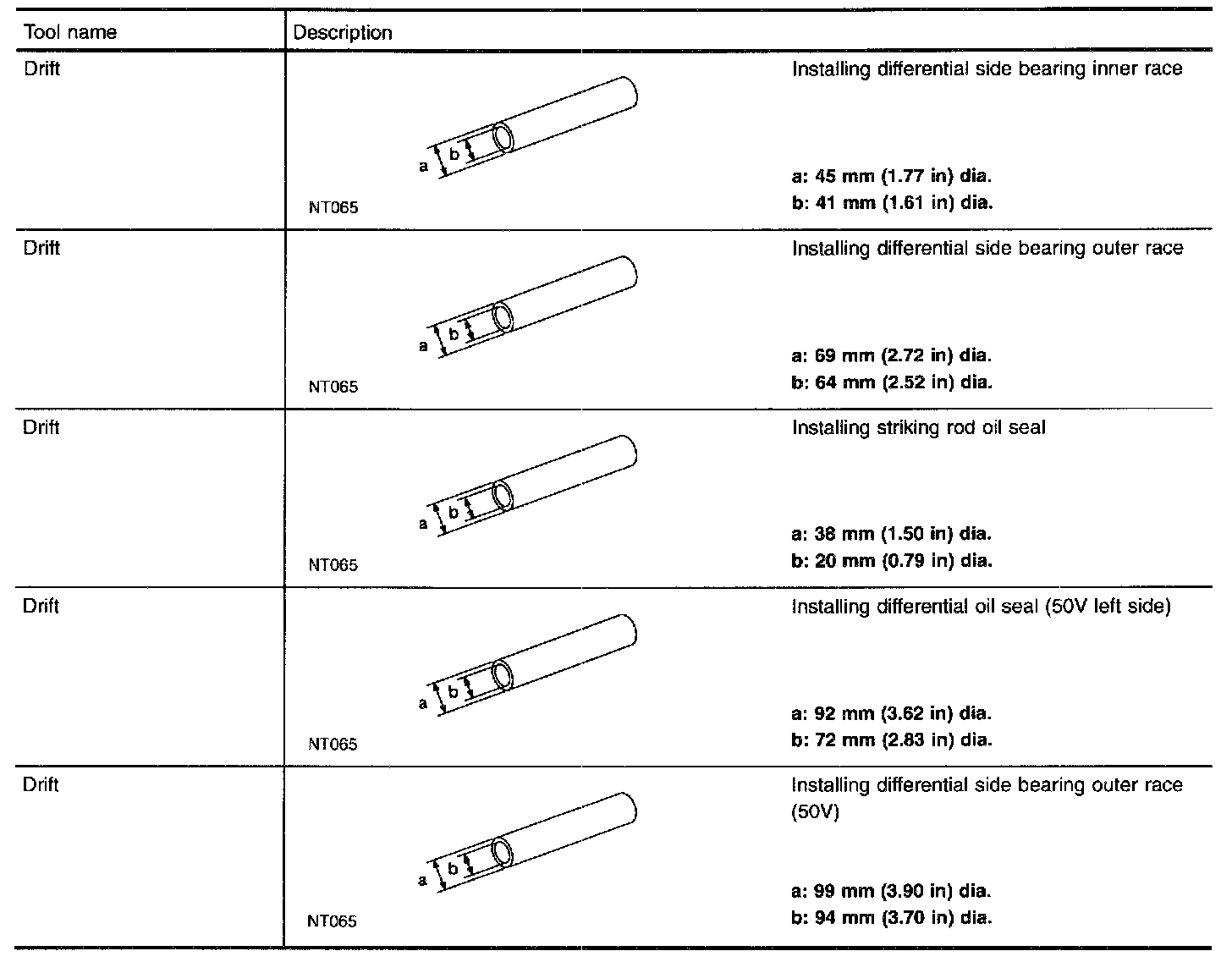

Commercial Service Tools
