Shift Linkage: Service and Repair

STRIKING ROD OIL SEAL

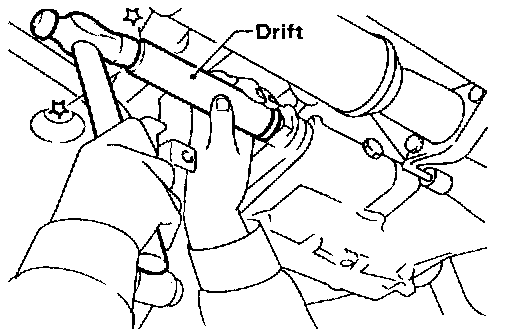

1. Remove transaxle control rod from yoke.

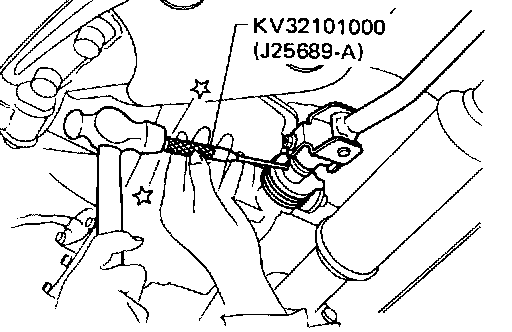

2. Remove retaining pin.
- Be careful not to damage boot.





3. Remove striking rod oil seal.

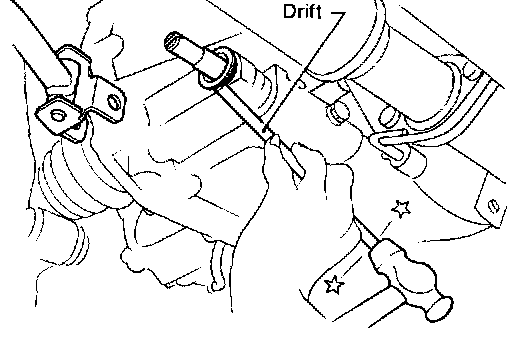

4. Install striking rod oil seal.
- Apply multi-purpose grease to seal lip of oil seal before installing.
