Component Testing Procedures

Component Check

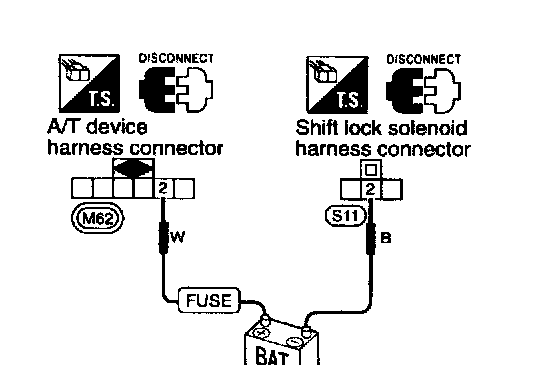

SHIFT LOCK SOLENOID
- Check operation by applying battery voltage to A/T device harness terminal (2) and shift lock solenoid harness terminal (2).

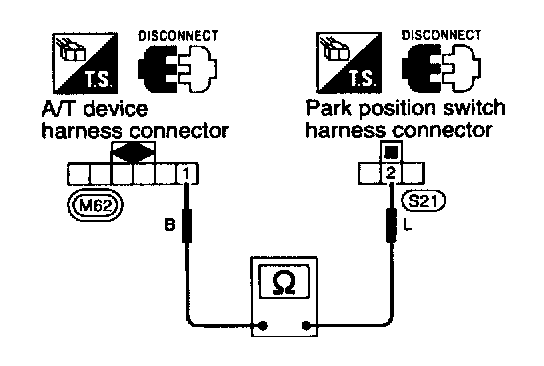

PARK POSITION SWITCH

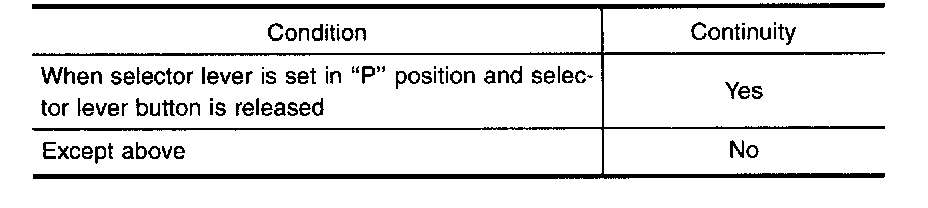

- Check continuity between A/T device harness terminal (1) and park position switch harness terminal (2).

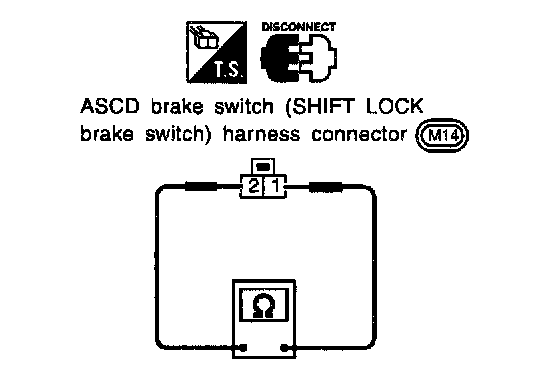

ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

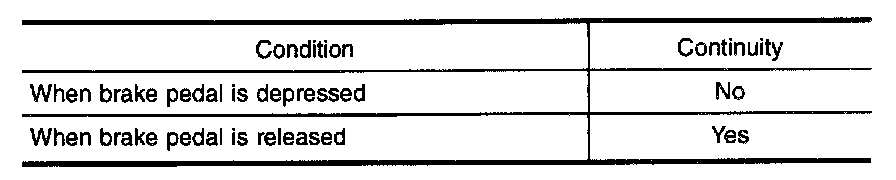

- Check continuity between terminals (1) and (2).

Check ASCD brake switch (SHIFT LOCK brake switch) after adjusting brake pedal.
