Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement





1. Remove drive shaft assembly.

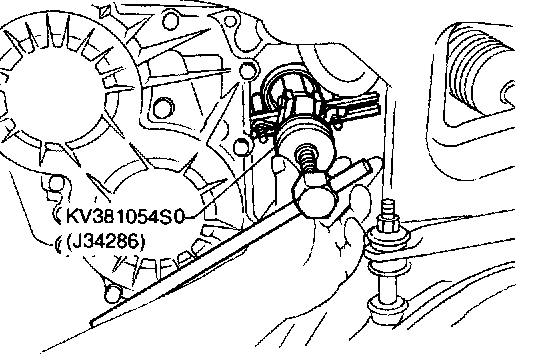

2. Remove oil seal.

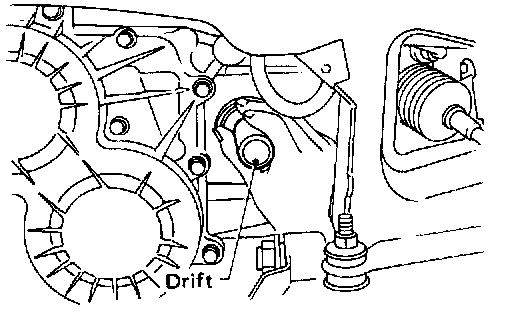

3. Install oil seal.





- Apply ATF before installing.

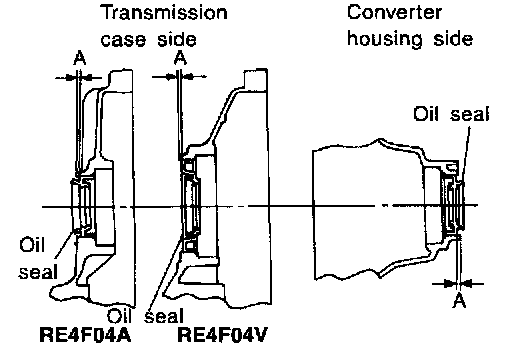

- Install oil seals so that dimension "A" is within specifications.
Dimension "A": -0.5 mm (-0.020 inch) to 0.5 mm (0.020 inch)
4. Reinstall any part removed.
