Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views >> Repair For Component Parts >> Output Shaft, Gear, Idler Gear, Red. Pinion Gear & Brg Retainer

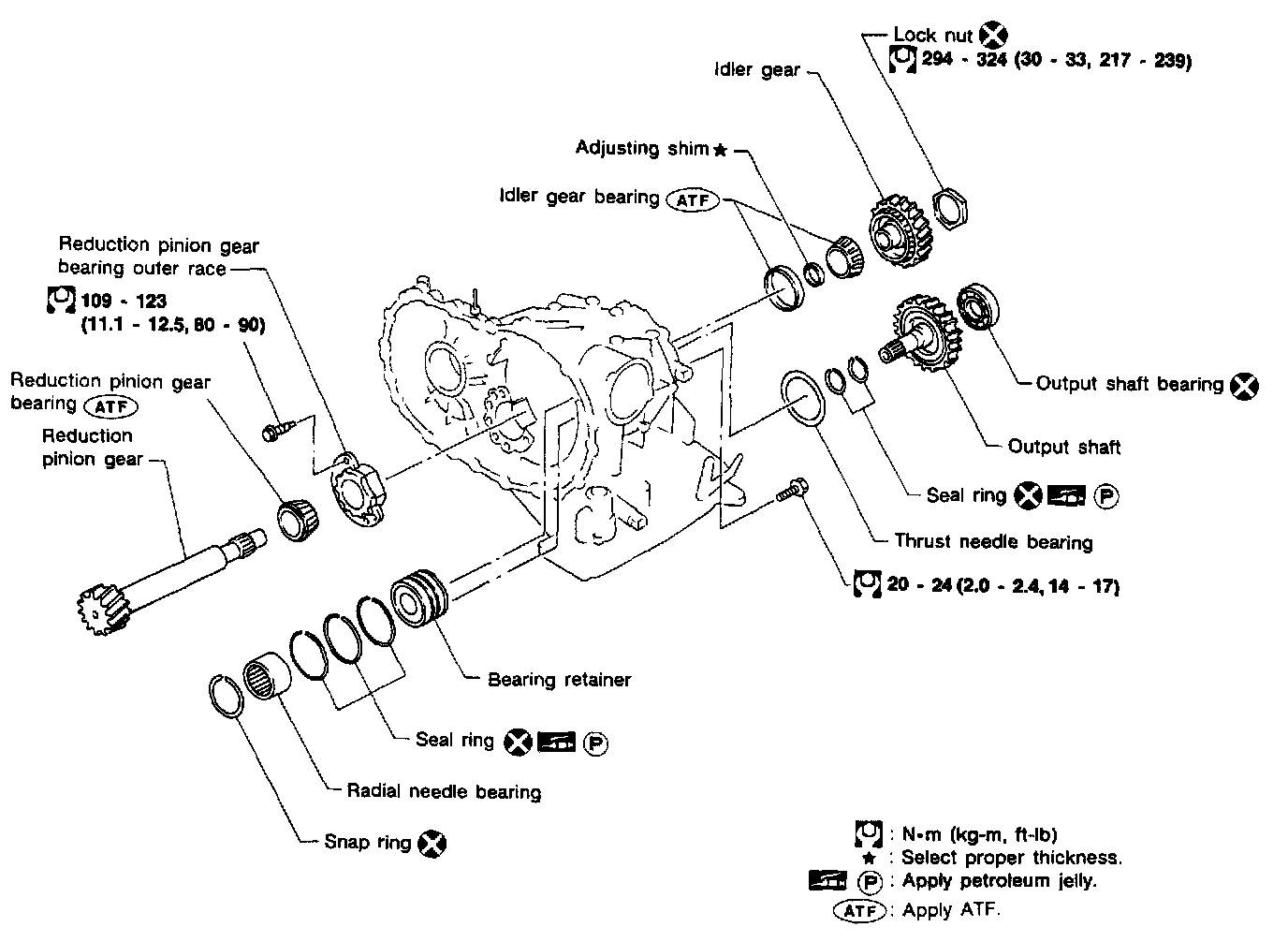

Output Shaft, Gear, Idler Gear, Red. Pinion Gear & Brg Retainer
