Front

REMOVAL AND INSTALLATION

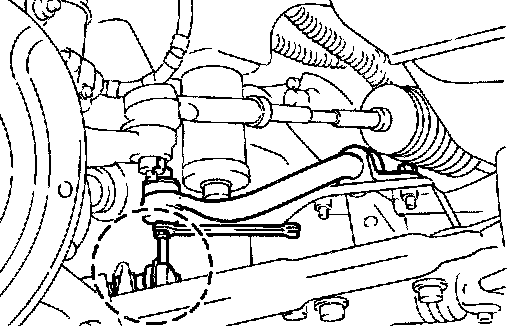

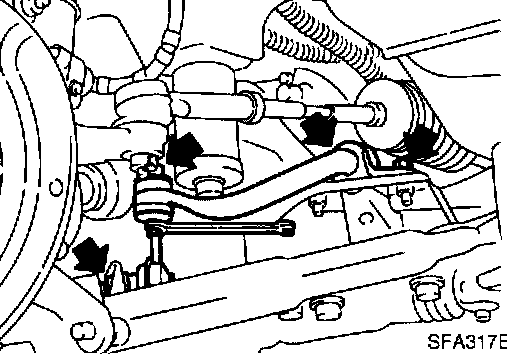

- Remove stabilizer bar.

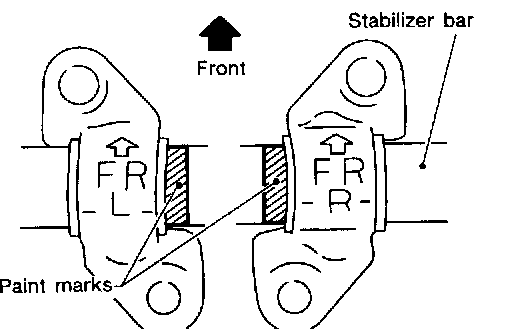

- When installing stabilizer, make sure that paint mark and clamp face in their correct directions.

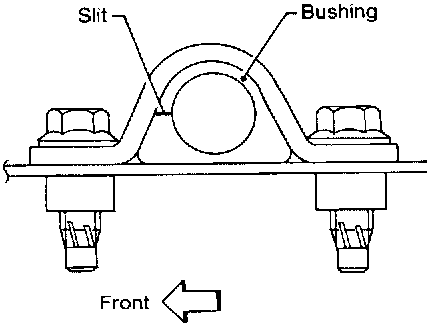

- Make sure that slit in bushing is in the position shown in the figure.





- When removing and installing stabilizer bar.

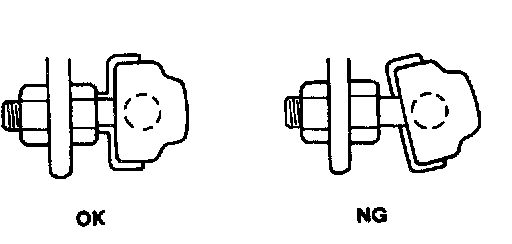

- Install stabilizer bar with ball joint socket properly placed.

INSPECTION
- Check stabilizer for deformation or cracks. Replace if necessary.
- Check rubber bushings for deterioration or cracks. Replace if necessary.

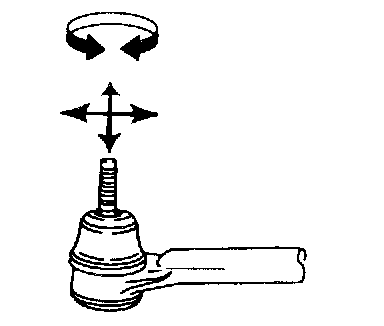

- Check ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.
