Radius Arm: Service and Repair

DISASSEMBLY
- Remove torsion beam assembly.
- Remove lateral link and control rod from torsion beam.

INSPECTION





- Check for cracks, distorsion or other damage. Replace if necessary.

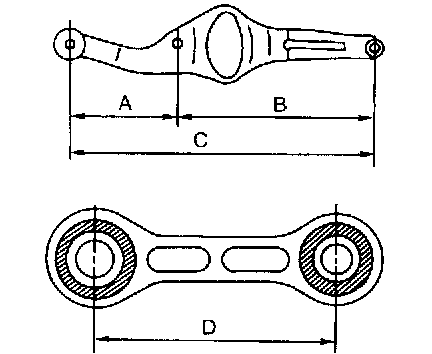

Standard length:
A 207 - 208 mm (8.15 - 8.19 inch)
B 394 - 395 mm (15.51 - 15.55 inch)
C 601 - 603 mm (23.66 - 23.74 inch)
D 106 - 108 mm (4.17 - 4.25 inch)

- Check all rubber parts for wear, cracks or deformation. Replace if necessary.

ASSEMBLY

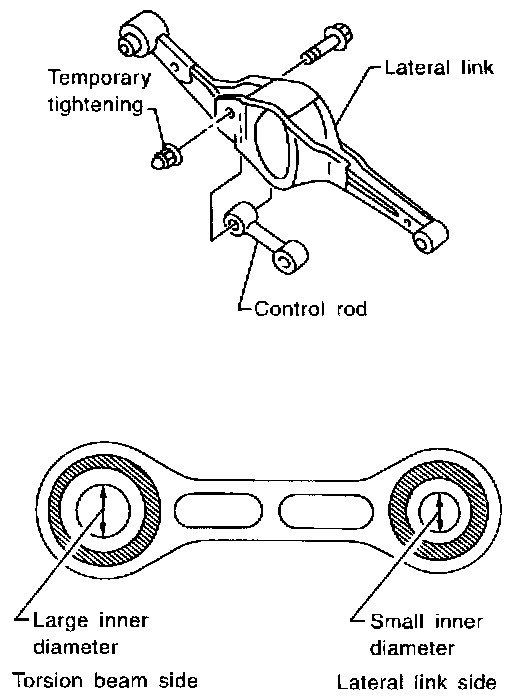

1. Temporarily assemble lateral link and control rod.
- When installing the control rod, connect the bush with the smaller inner diameter to the lateral link.

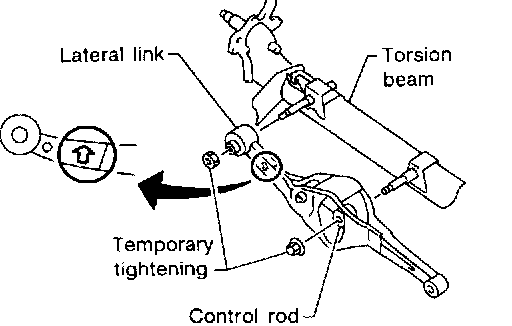

2. Temporarily install lateral link and control rod on torsion beam.
- When installing, place lateral link with the arrow top side.

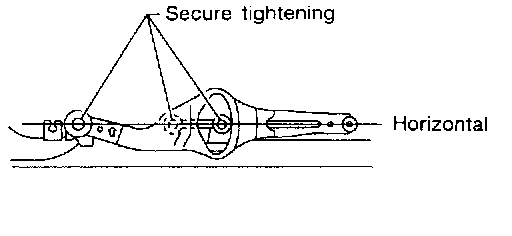

3. Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque.
4. Install torsion beam assembly.
