Checking Steering Wheel Play

CHECKING STEERING WHEEL PLAY

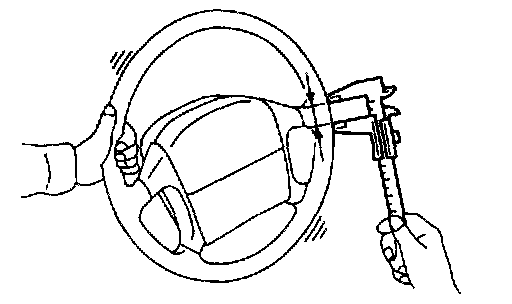

- With wheels in a straight-ahead position, check steering wheel play.

Steering wheel play: 35 mm (1.38 inch) or less

- If it is not within specification, check the following for loose or worn components.
Steering gear assembly
Steering column
Front suspension and axle
