Checking Fluid Level

Check fluid level.

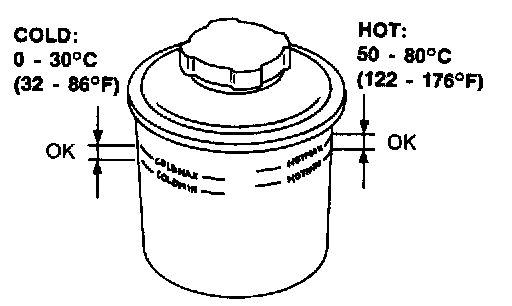

Use the correct range of the tank depending on the fluid temperature. Use the "HOT" range at 50 to 80°C (122 to 176°F), or the "COLD" range at 0 to 30°C (32 to 86°F).

CAUTION:
^ Do not overfill.
^ Recommended fluid is Automatic Transmission Fluid type DEXRON (TM) III or equivalent.
