Neutral Safety Switch: Adjustments

Park/Neutral Position Switch Adjustment

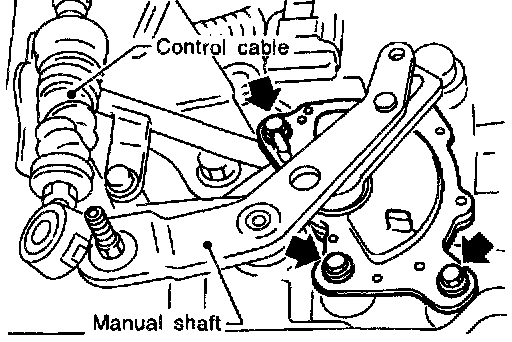

1. Remove control cable from manual shaft.
2. Set manual shaft in "N" position.
3. Loosen PNP switch fixing bolts.

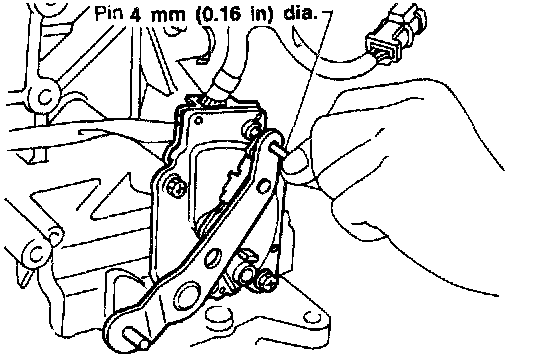

4. Insert pin into adjustment holes in both PNP switch and manual shaft as near vertical as possible.
5. Reinstall any part removed.








6. Check continuity of PNP switch.
