Transmission Pan Bolt Torque Values

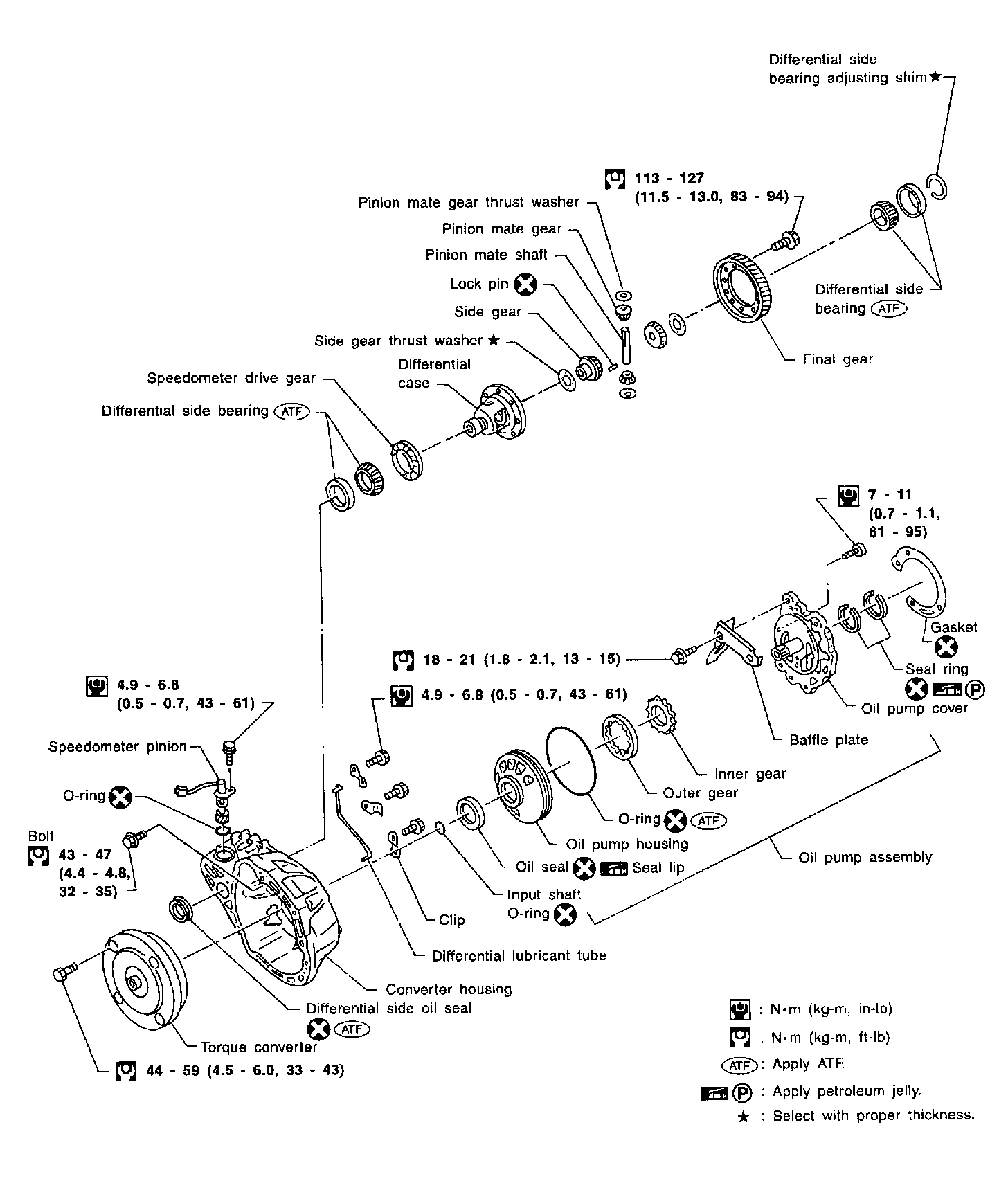

Part 1 Of 3:

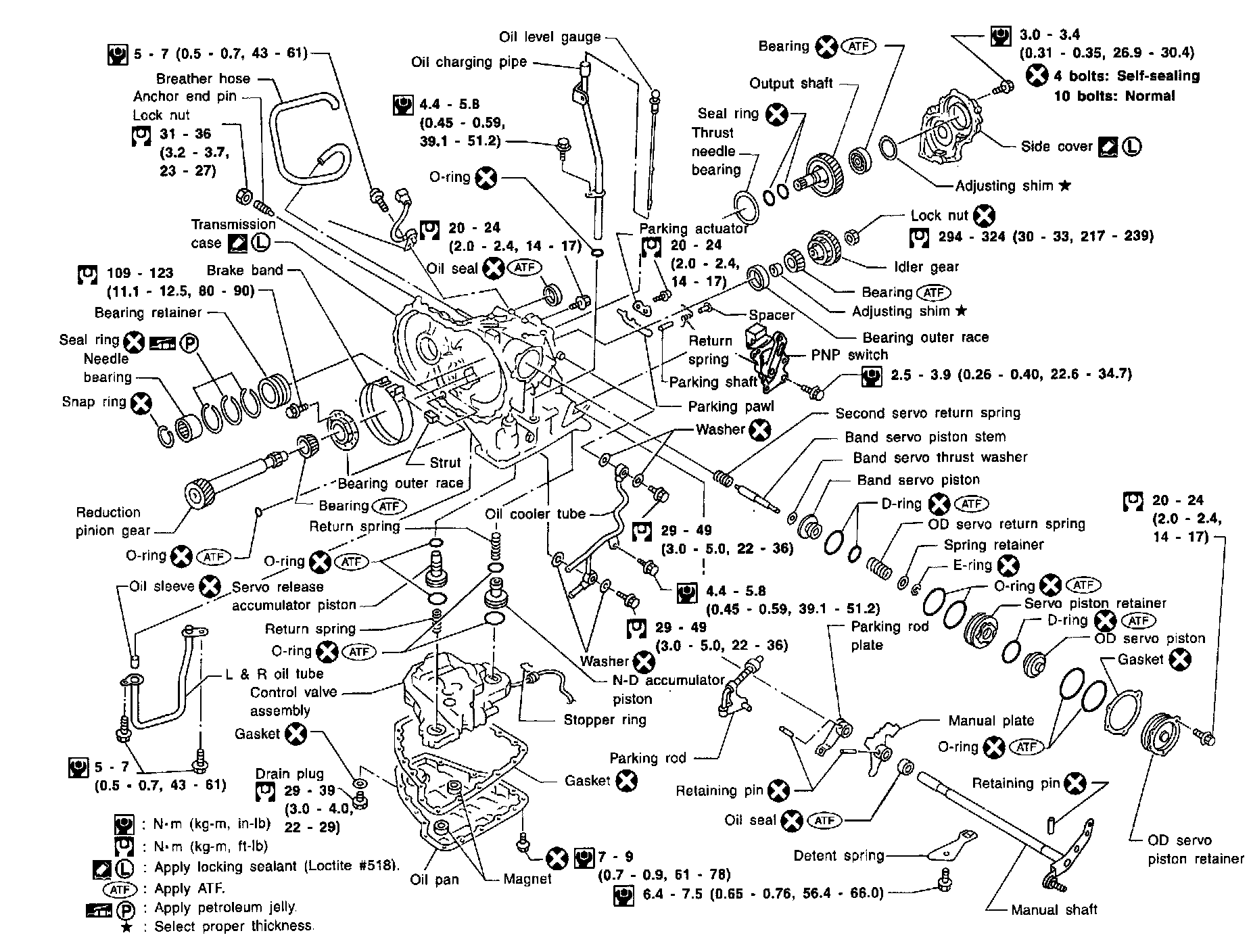

Part 2 Of 3:

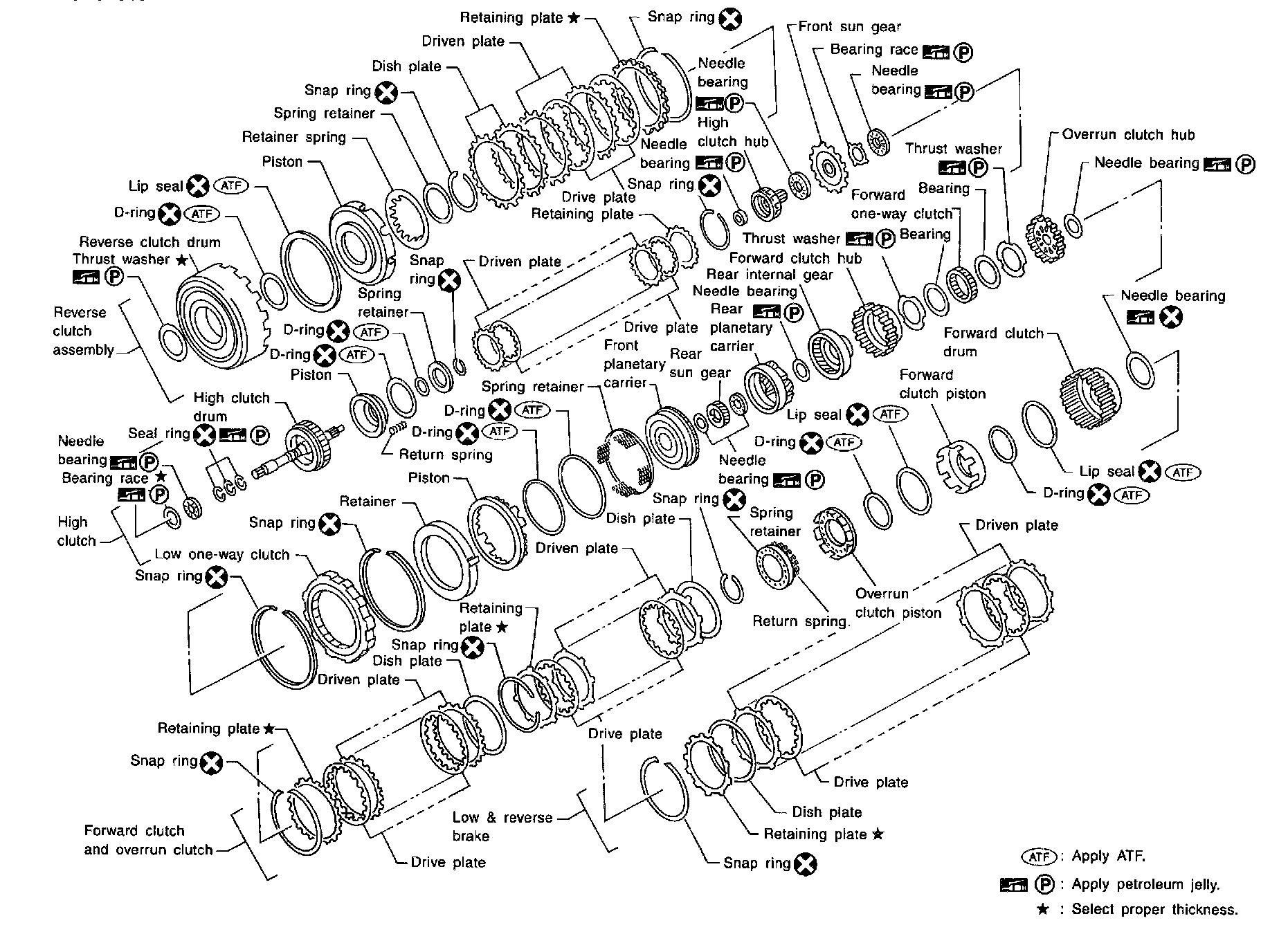

Part 3 Of 3:





Major Overhaul

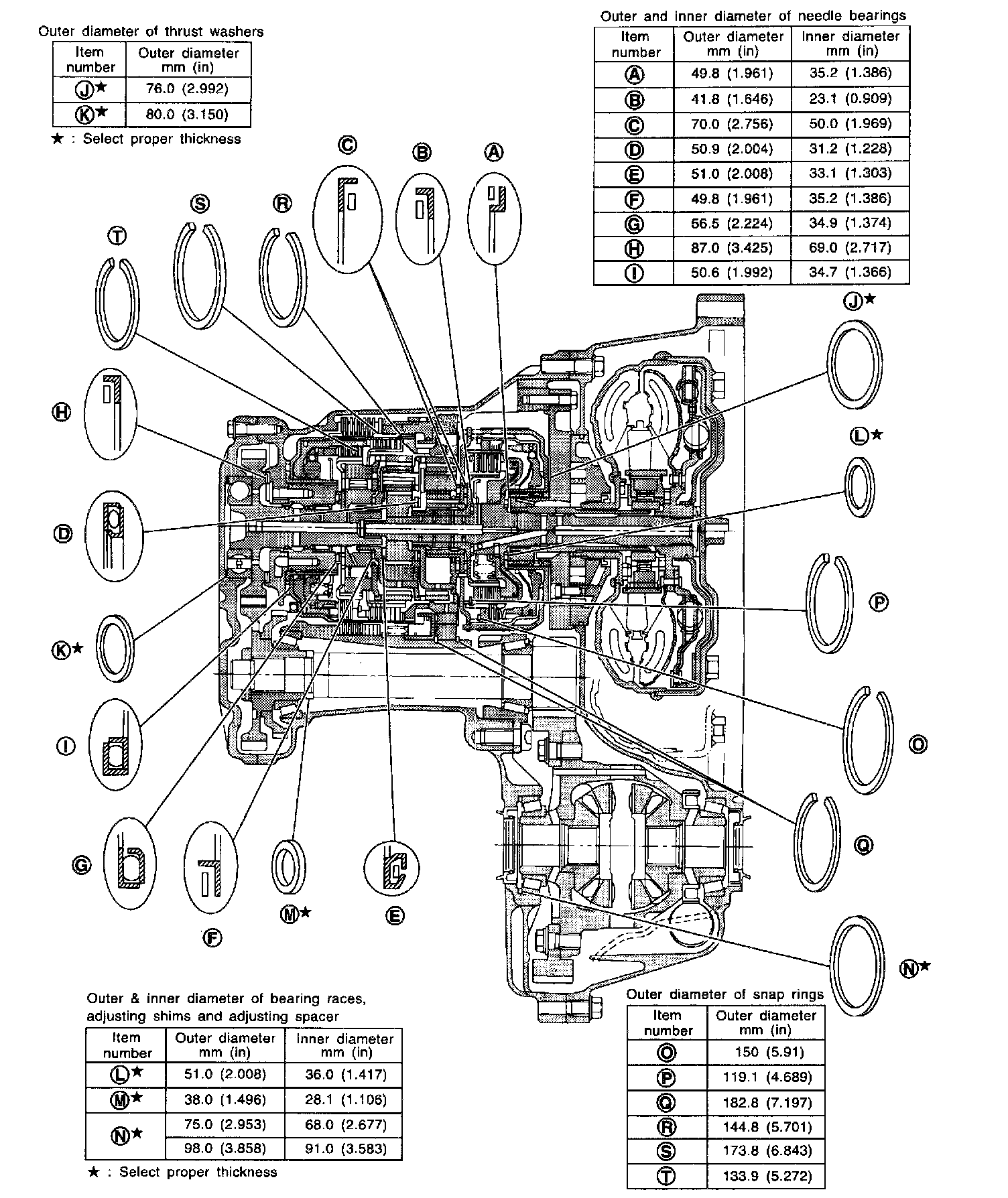

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

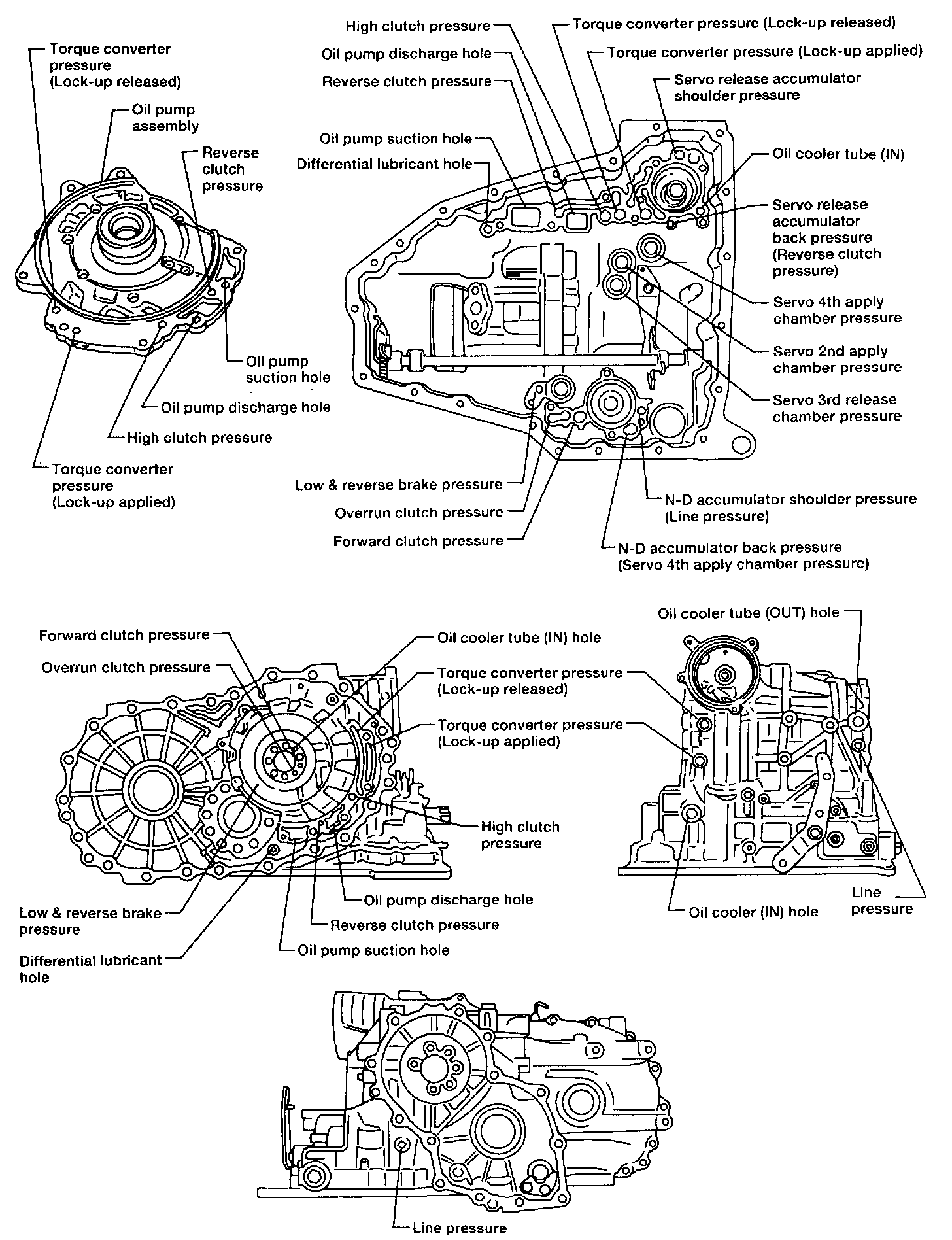

Oil Channel
