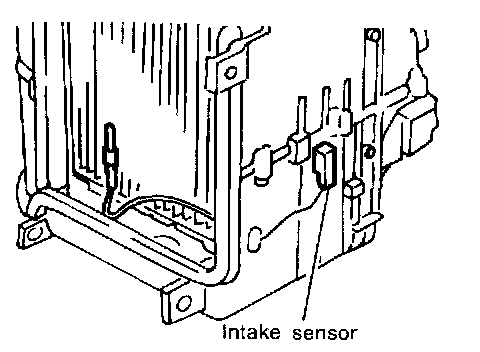

Intake Sensor

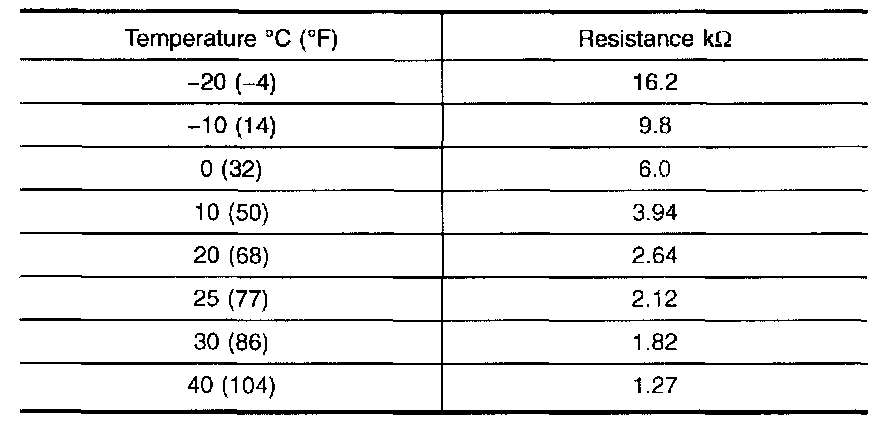

After disconnecting intake sensor harness connector, measure resistance between terminals (1) and (2) at sensor harness side, using the table.
