Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Procedures >> Procedure 11

Procedure 11

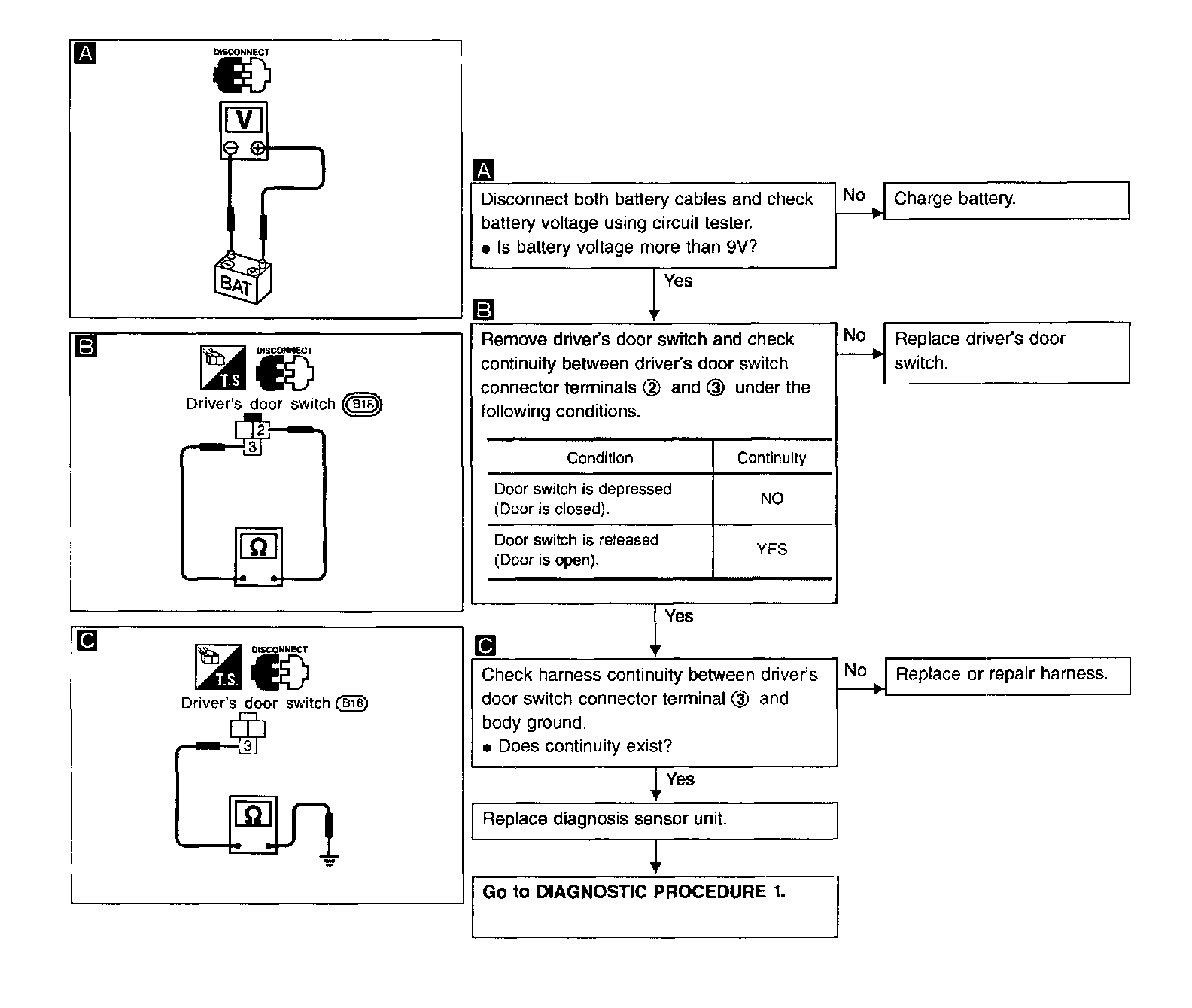

Diagnostic Procedure 11 - SRS Does Not Enter Diagnosis Mode:
