Side Air Bag Module

REMOVAL

CAUTION:
- Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Always work from the rear of air bag module.






1. Remove seat back finisher.
When using a clip removal tool to remove the seat back finisher, take care not to damage the air bag harness.

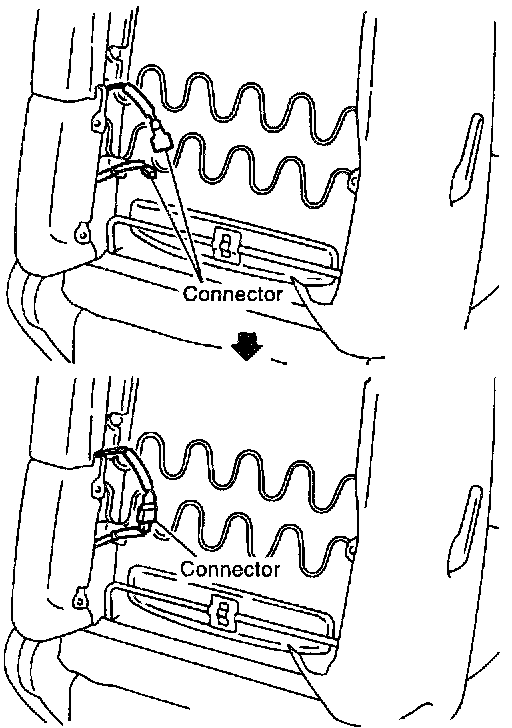

2. Disconnect side air bag module connector.

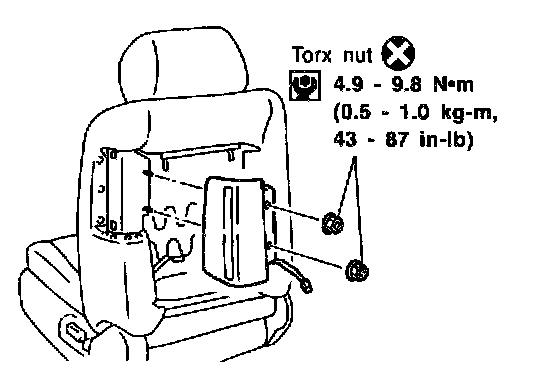

3. Remove torx nuts from air bag module. Air bag module can then be removed.






CAUTION:

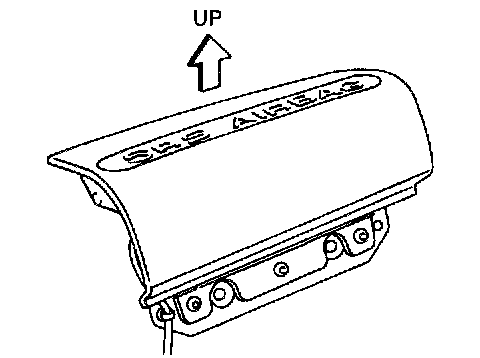

- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The torx nuts are coated with bonding agent. Do not use old nuts after removal; replace with new coated nuts.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.

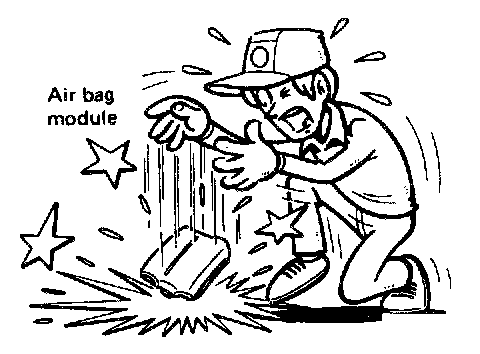

- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90° C (194° F).
- Do not allow oil, grease or water to come in contact with the air bag module.
- After air bag inflates, the front seat should be replaced if damaged.


INSTALLATION

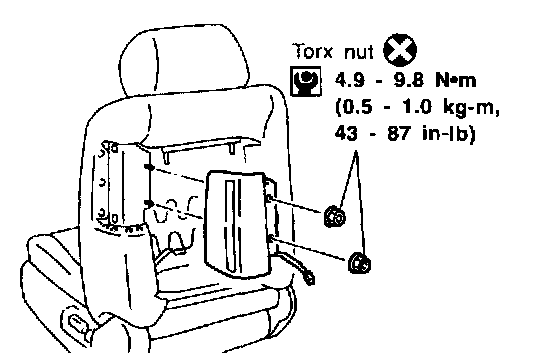

1. Install side air bag module on front seat.

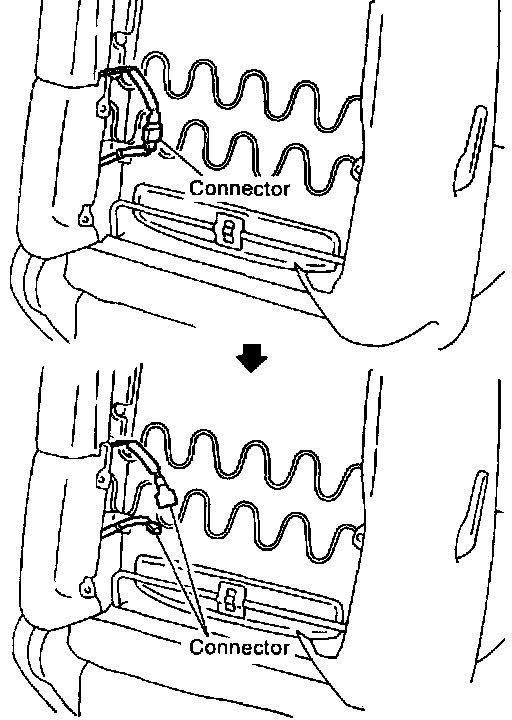

2. Connect side air bag module connector.
3. Install seatback finisher with new clips.
Ensure harness is not caught between seatback finisher and seatback.

4. Connect both battery cables.
5. Conduct self-diagnosis, to ensure SRS operates properly. (Use CONSULT or air bag warning lamp). Clearing Trouble Codes
