Seat Belt Pre-Tensioner

Unless the vehicle is being scrapped, deploying the air bag in the vehicle is not recommended. This may cause damage to the vehicle interior.
Anchor air bag module bracket [KV99105300 (J41246)] in a vise secured to a firm foundation during deployment.






Deployment of seat belt pre-tensioner (outside of vehicle)

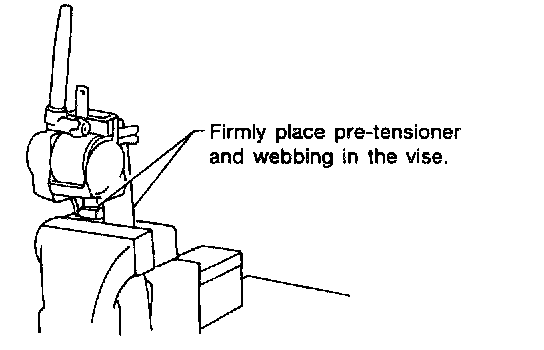

1. Firmly anchor seat belt pre-tensioner in a vise.

CAUTION: Ensure bracket and webbing are placed in the vise.

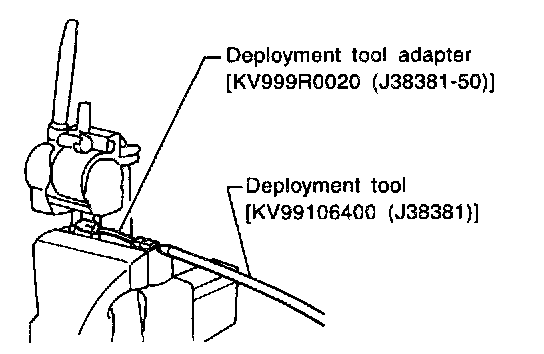

2. Connect deployment tool adapter [SST: kV999R0020 (J38381-50)] to deployment tool [SST: KV99106400 (J38381)] connector and seat belt pre-tensioner connector.

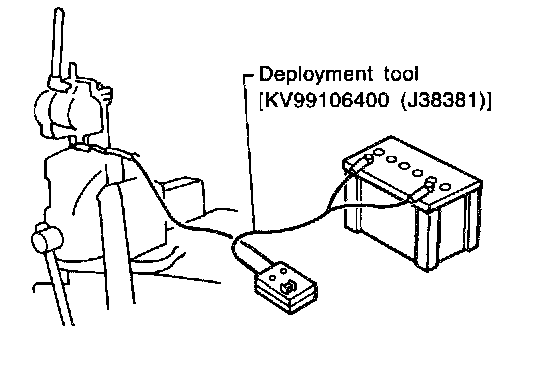

3. Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
4. The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
5. Press the button on the deployment tool. The left side lamp on the tool, marked "seat belt pre-tensioner connector voltage", will illuminate and the seat belt pre-tensioner will deploy.

CAUTION: When deploying the seat belt pre-tensioner, stand at least 5 m (16 ft) away from the seat belt pre-tensioner.
