FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1999
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Displaying & Reading Trouble Codes
>>
Without Scan Tools
>>
TCM Self-Diagnostic Procedure
TCM Self-Diagnostic Procedure
Part 1 Of 2:
Part 2 Of 2:
TCM

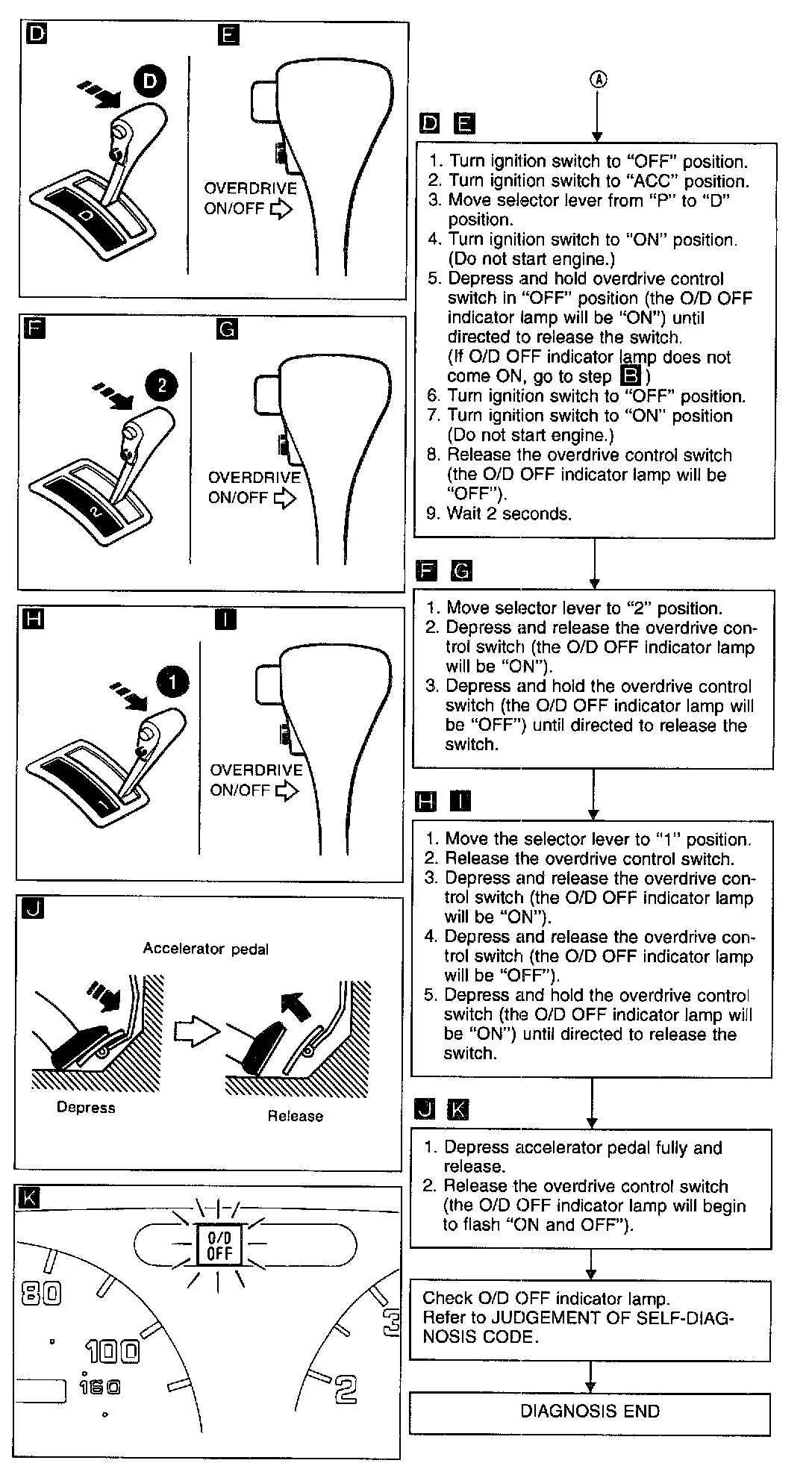

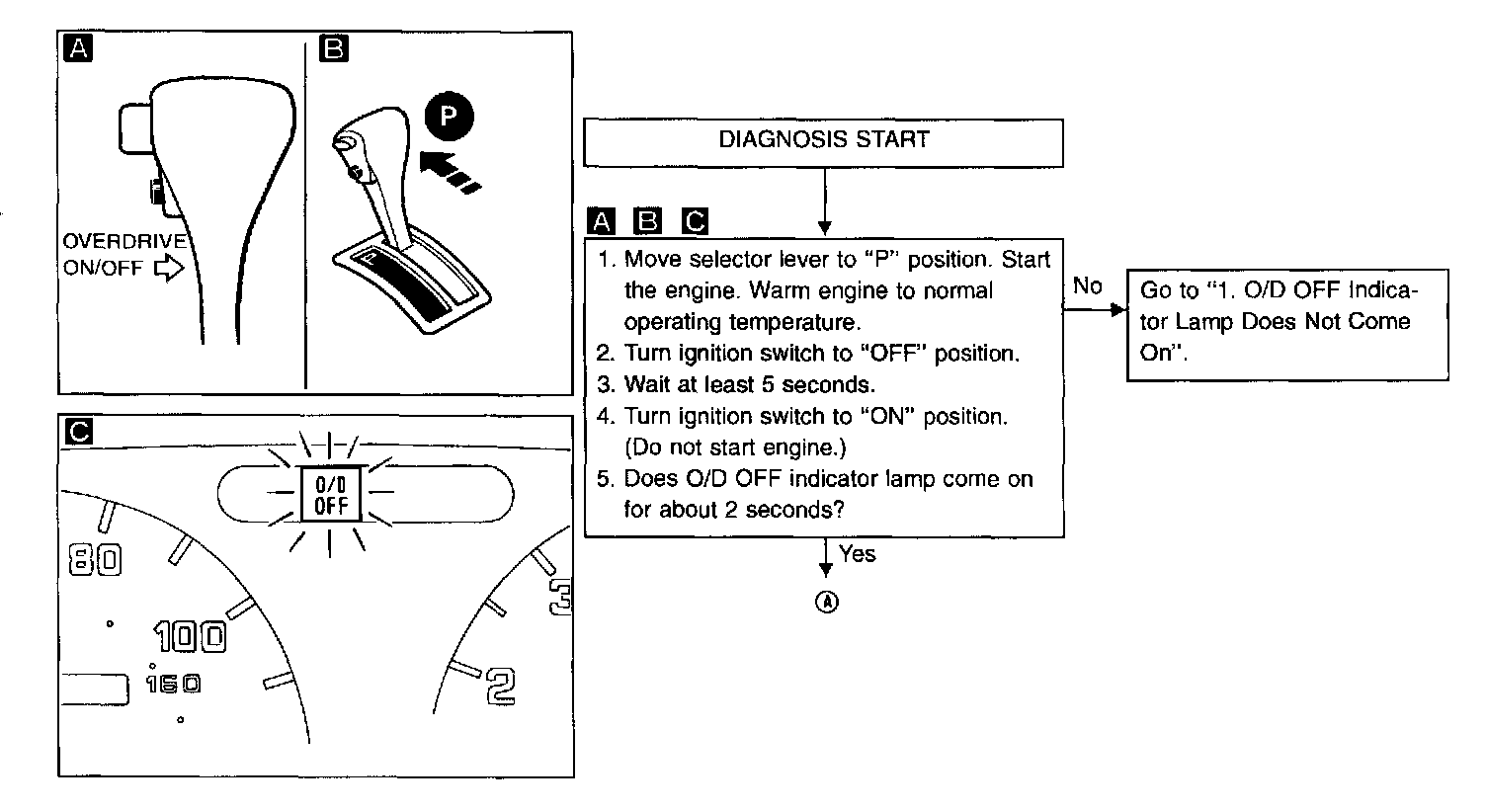

SELF-DIAGNOSTIC PROCEDURE (WITHOUT SCAN TOOLS)
Part 1 Of 2:
Part 2 Of 2:

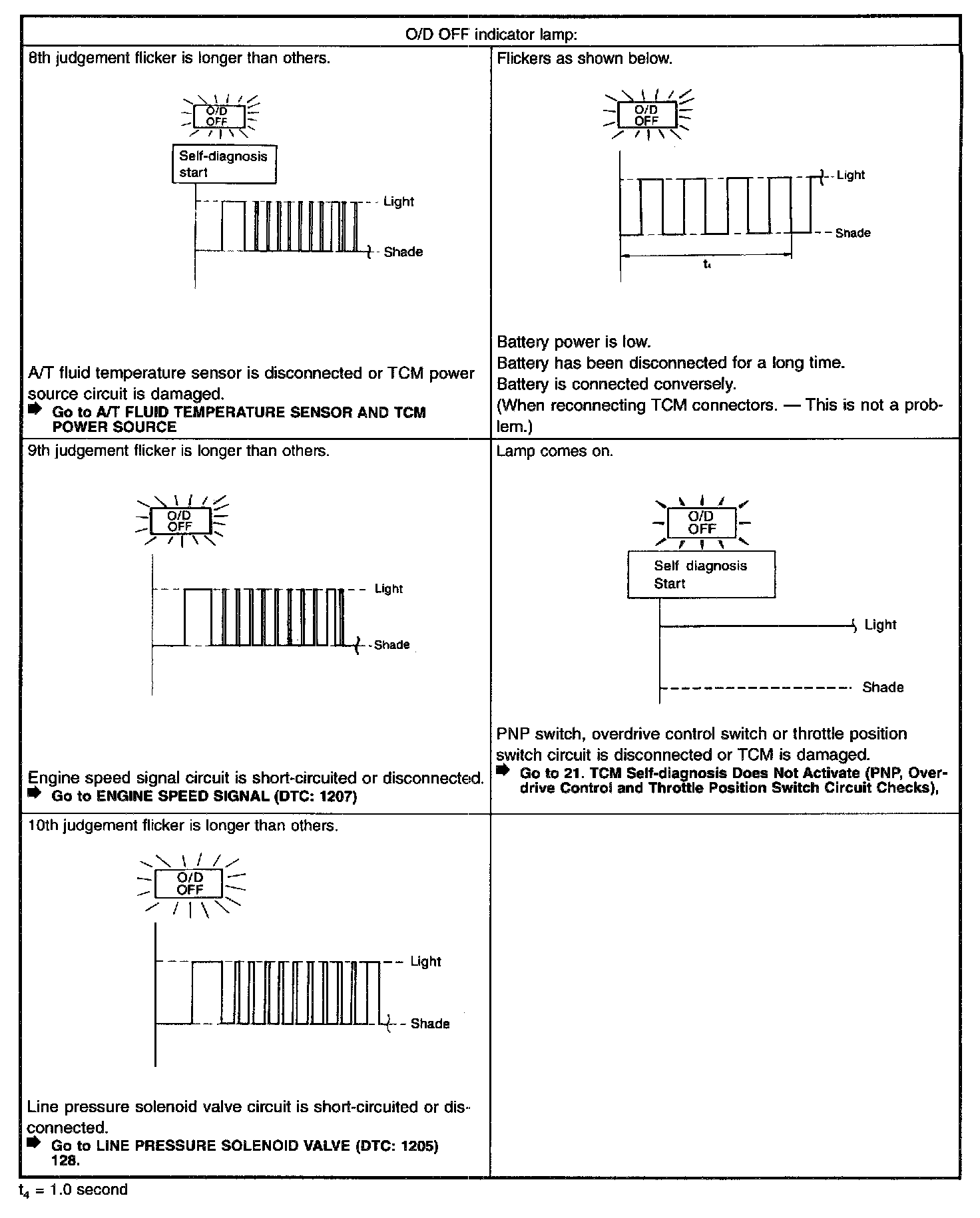

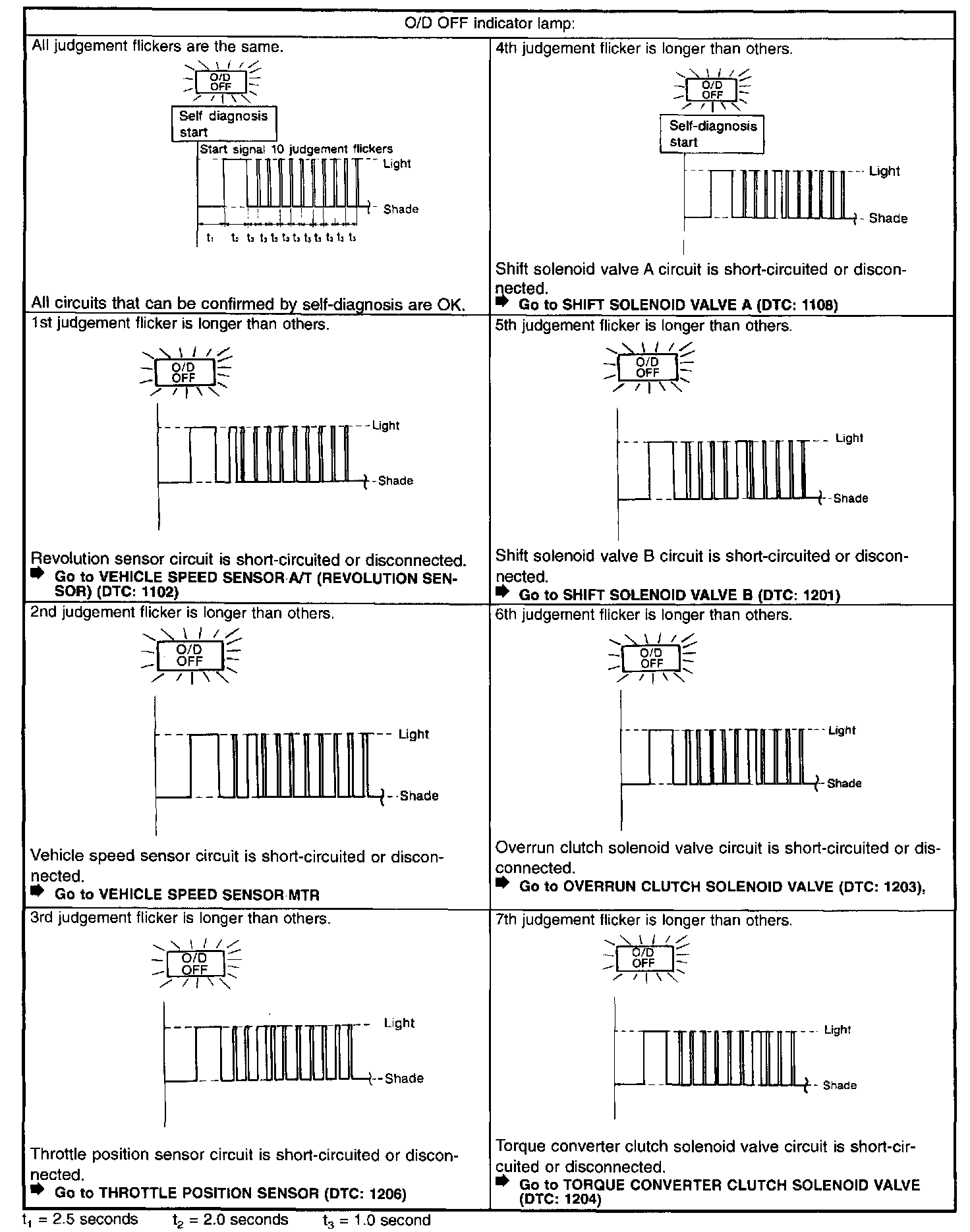

JUDGEMENT OF SELF-DIAGNOSIS CODE
