Ignition Control Module: Testing and Inspection

COMPONENT INSPECTION




Ignition coil with power transistor
1. Disconnect ignition coil with power transistor harness connector.

Ignition Coil Resistance:

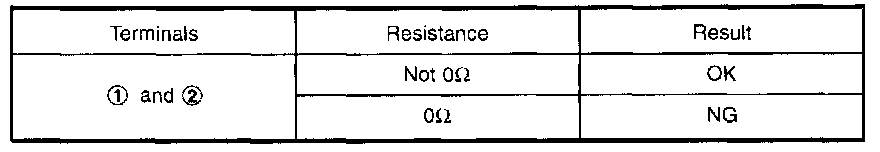

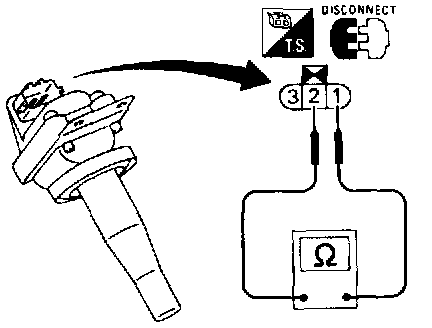

2. Check ignition coil with power transistor for resistance between terminals (1) and (2).





Condenser

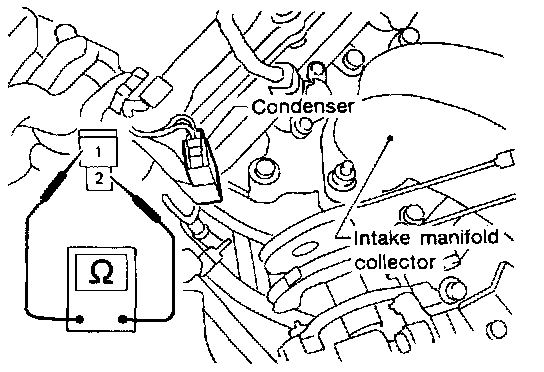

1. Disconnect condenser harness connector.

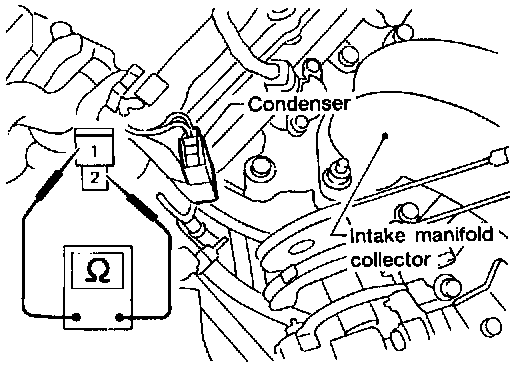

2. Check condenser continuity between terminals (1) and (2)

Resistance Above 1 M Ohms at 25°C (77°F)
