One-Way Fuel Valve

ONE-WAY FUEL VALVE





1. Drain fuel from the tank.
Refer to "COMPONENT INSPECTION" of refueling EVAP vapor cut valve.
2. Remove fuel tiller tube and hose.

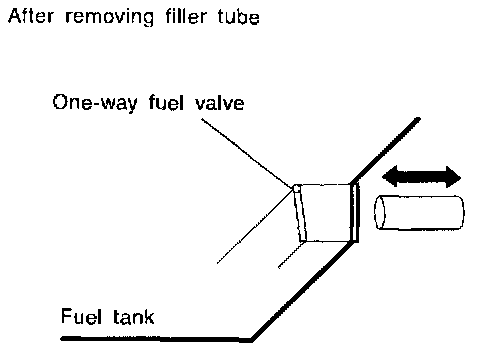

3. Check one-way fuel valve for operation as follows. When a stick is inserted, the valve should open, when removing stick it should close.

Do not drop any material into the tank.
If NG, replace one-way fuel valve with fuel tank.
