CONSULT Inspection Procedure

1. Turn ignition switch OFF.

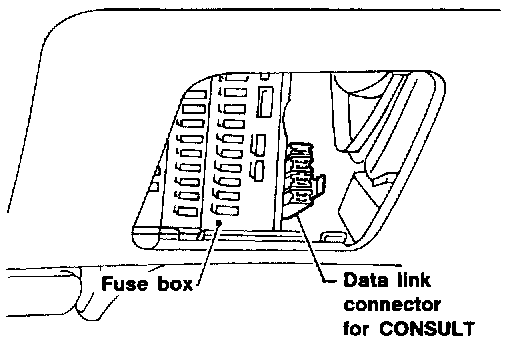

2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located behind the fuse box cover.)




3. Turn ignition switch ON.

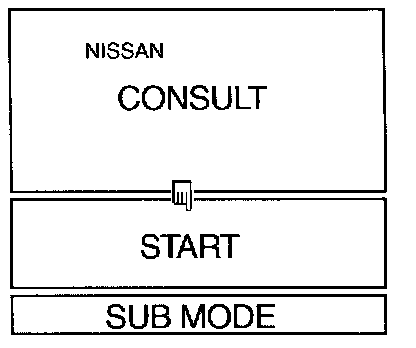

4. Touch "START".

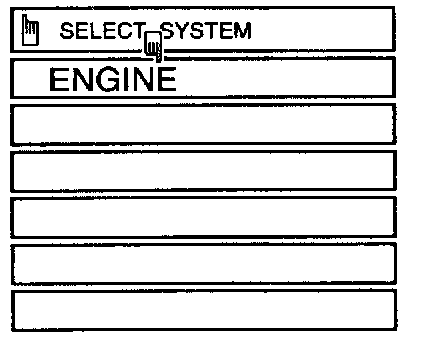

5. Touch "ENGINE".







6. Perform each diagnostic test mode according to each service procedure.

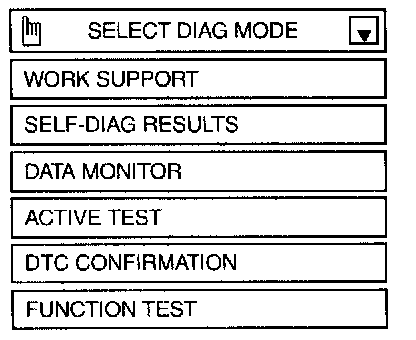

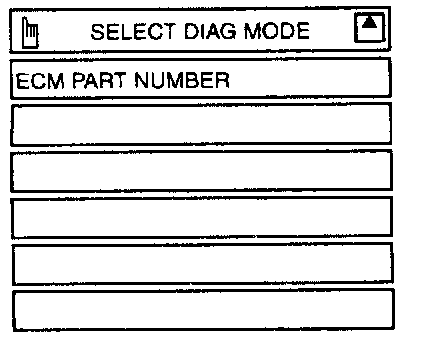

For further information, see the CONSULT Operation Manual. This example shows the display when using the UE990 program card. The screen differs according to the program card used.
