Power Supply Testing

MAIN POWER SUPPLY AND GROUND CIRCUIT

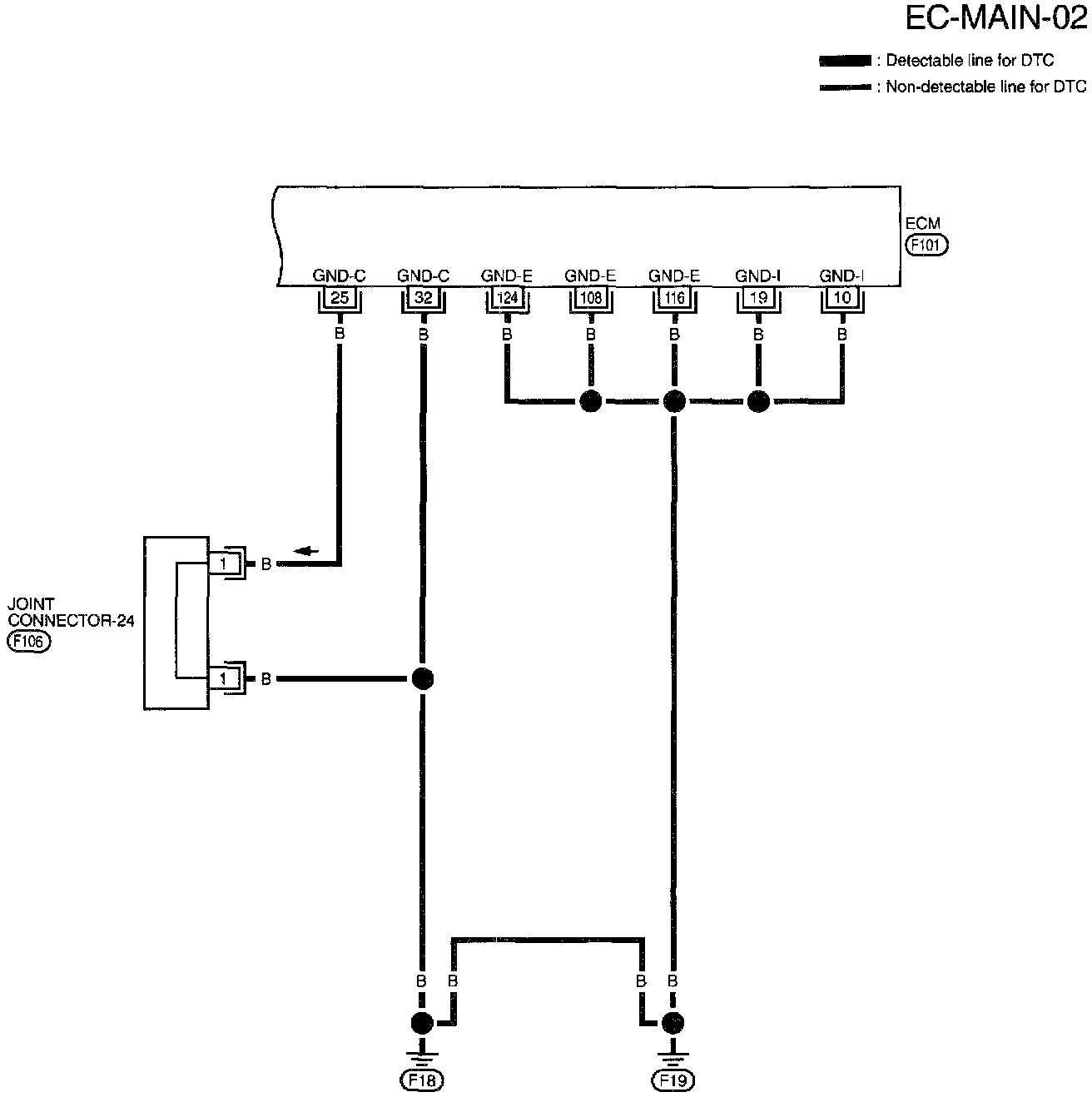

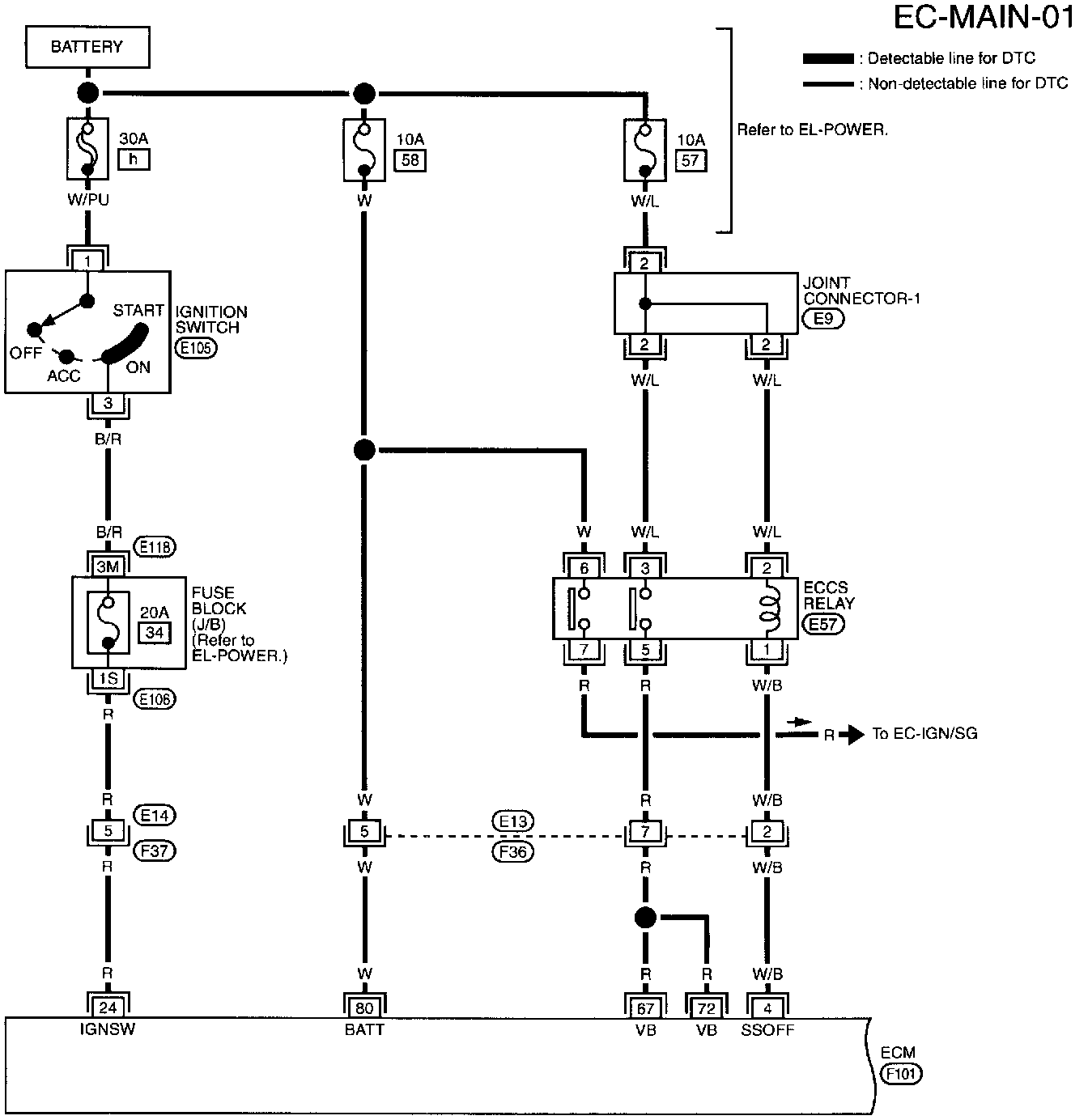

WIRING DIAGRAM

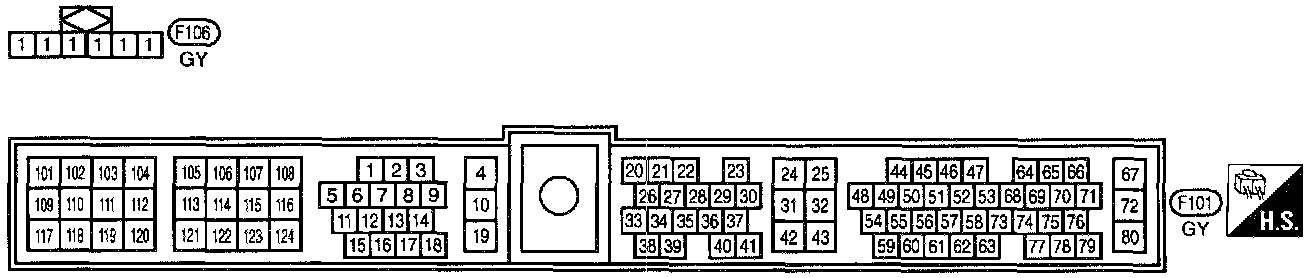

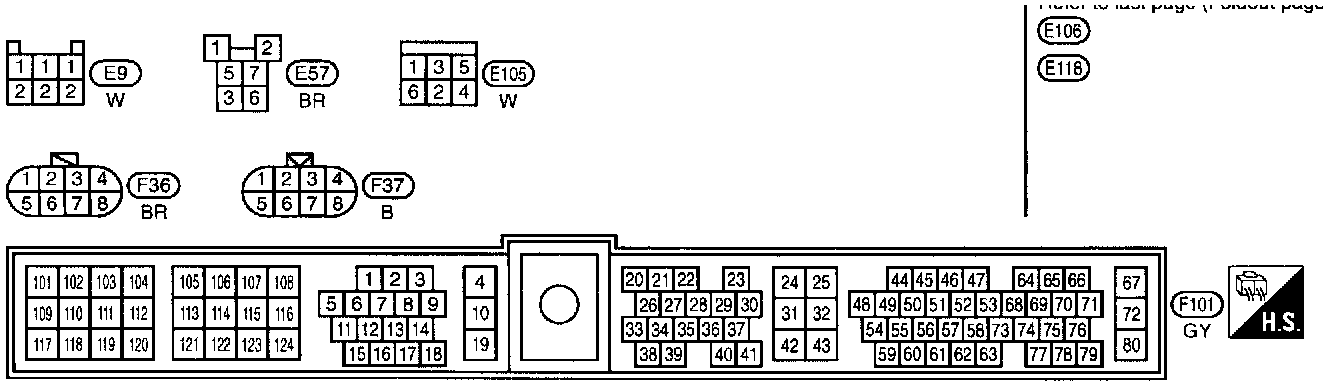

E106, E118 Fuse Block - Junction Box (J/B)

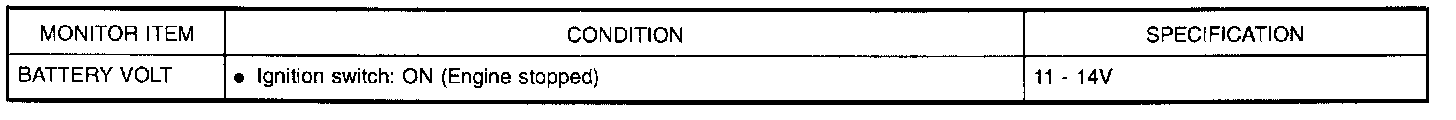

CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values.

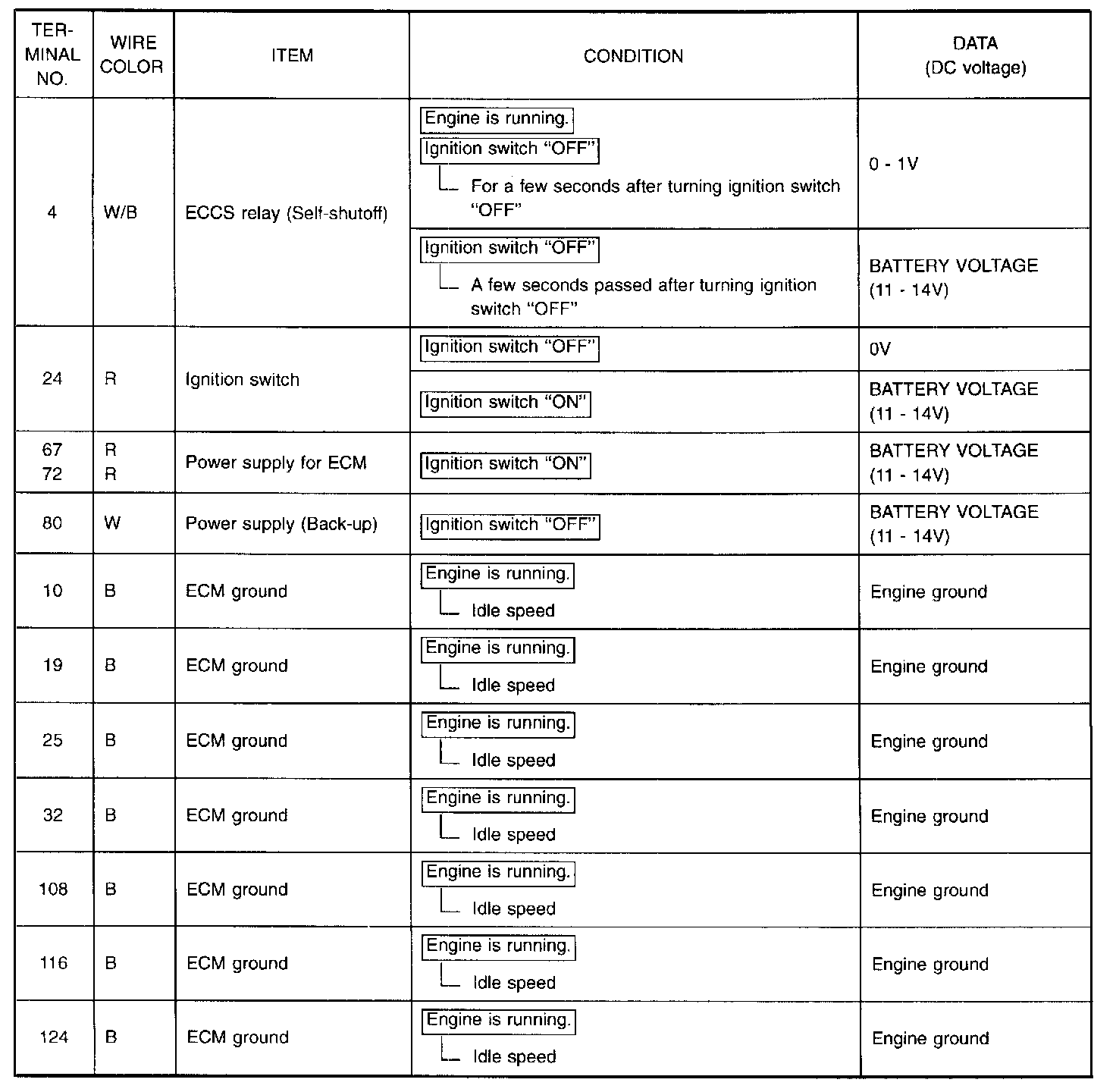

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values, and are measured between each terminal and (25) (ECM ground).





DIAGNOSTIC PROCEDURE

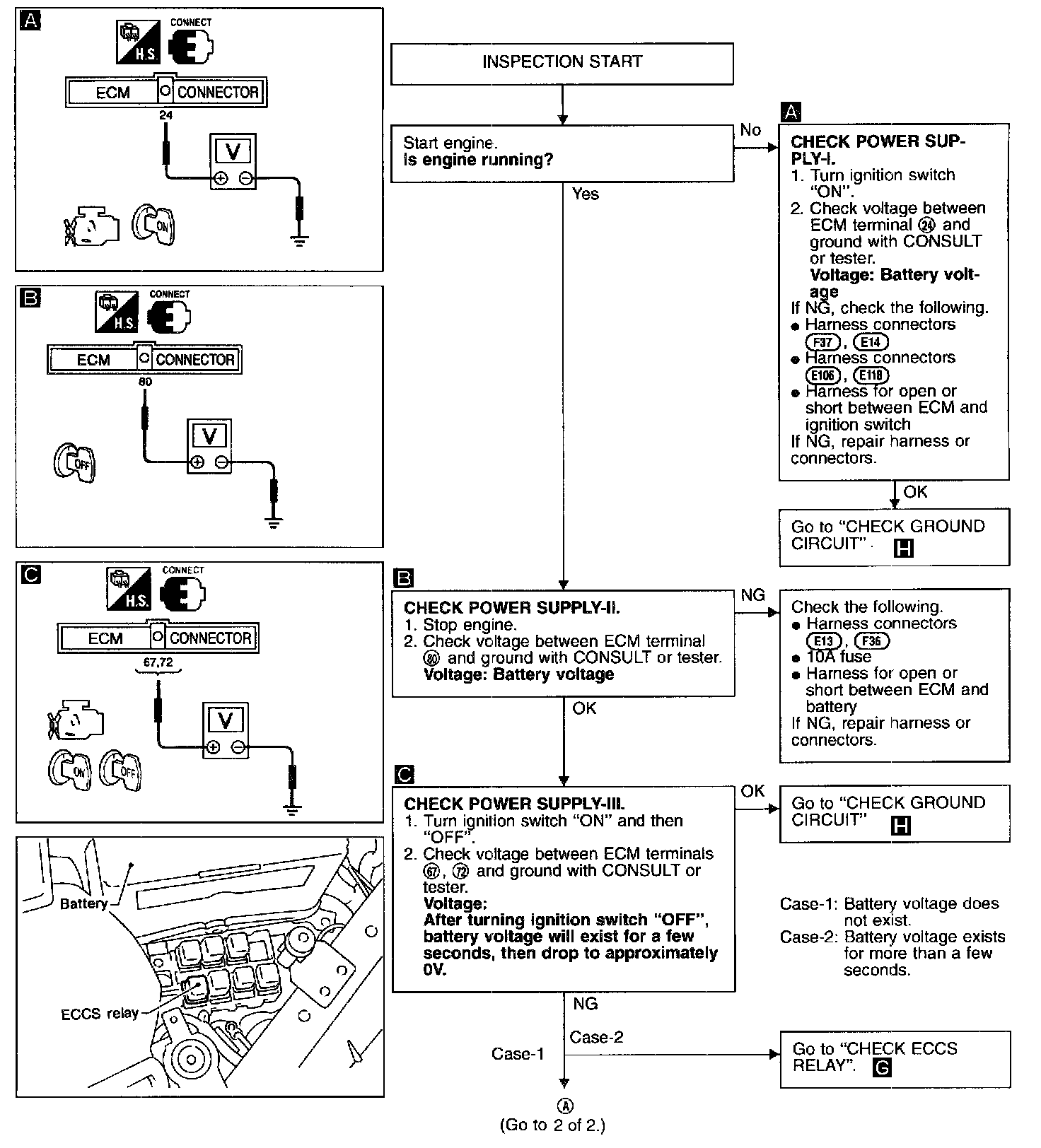

Part 1 Of 2:

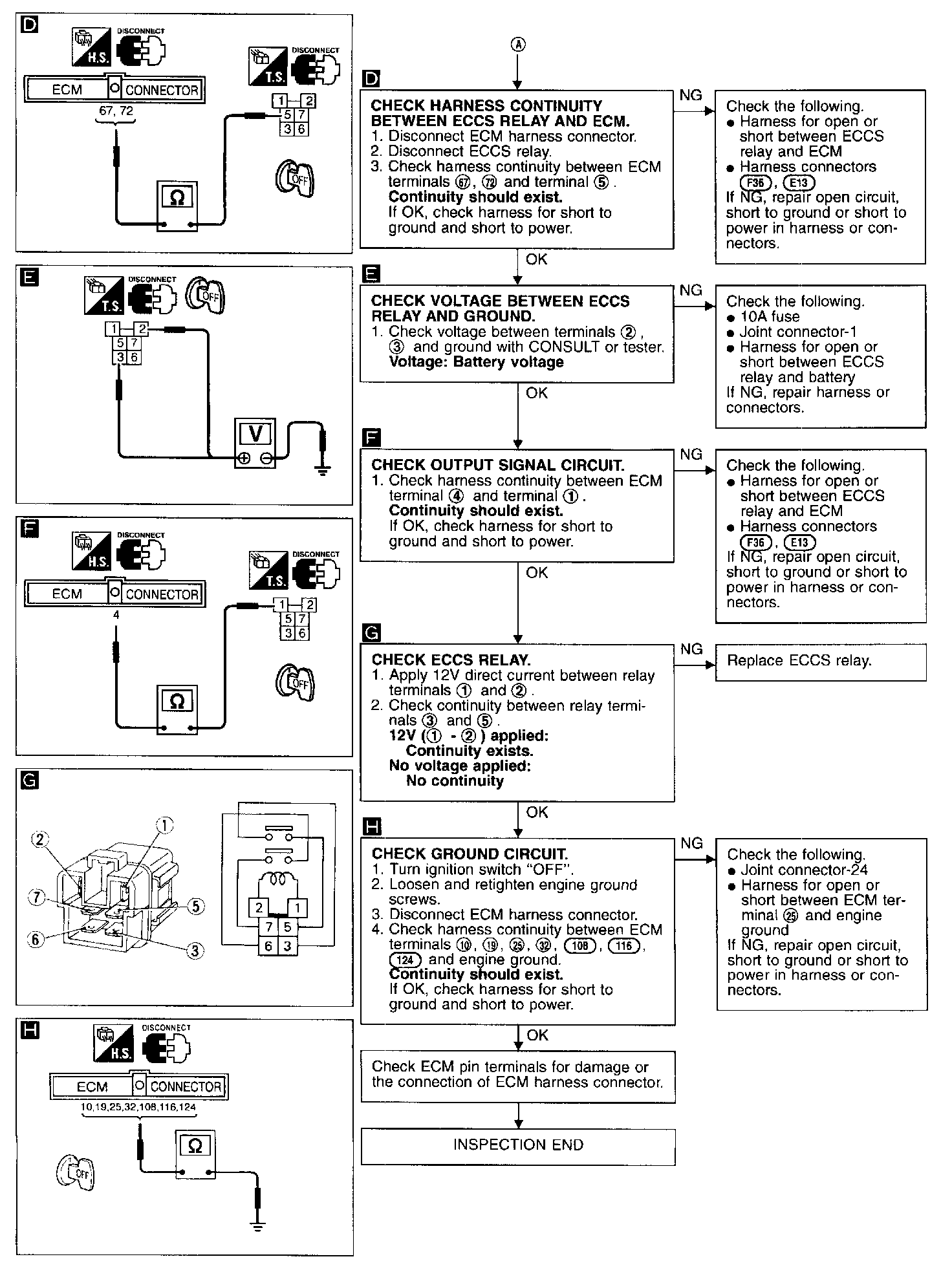

Part 2 Of 2:
