Interior Lamp Control - IVMS

CONSULT
Consult Inspection Procedure




1. Turn ignition switch "OFF".

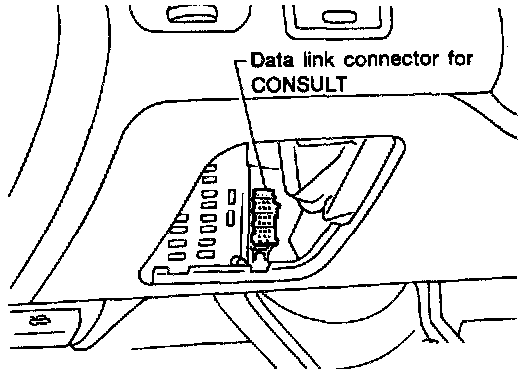

2. Connect "CONSULT" to the data link connector.




3. Turn ignition switch "ON".

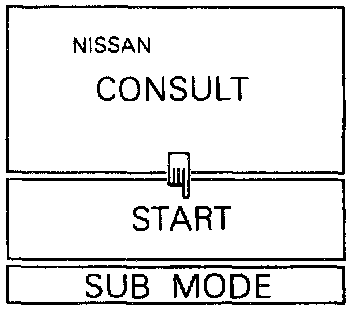

4. Touch "START".

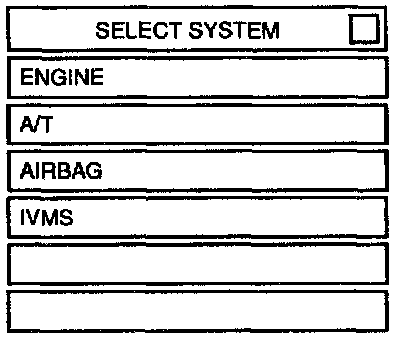

5. Touch "IVMS".

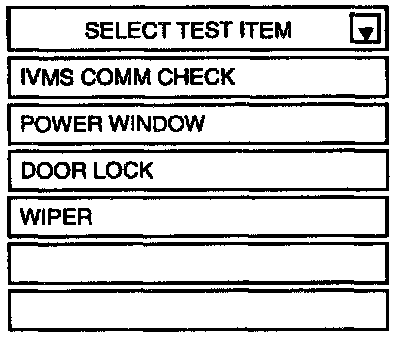

6. Touch "ROOM LAMP TIMER"

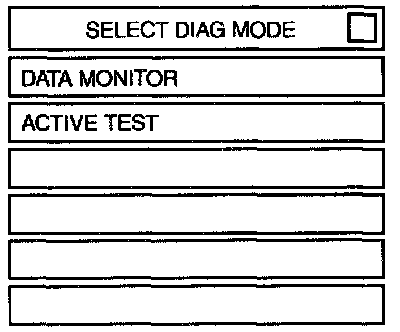

^ DATA MONITOR and ACTIVE TEST are available for the interior lamp control.


Trouble Diagnosis

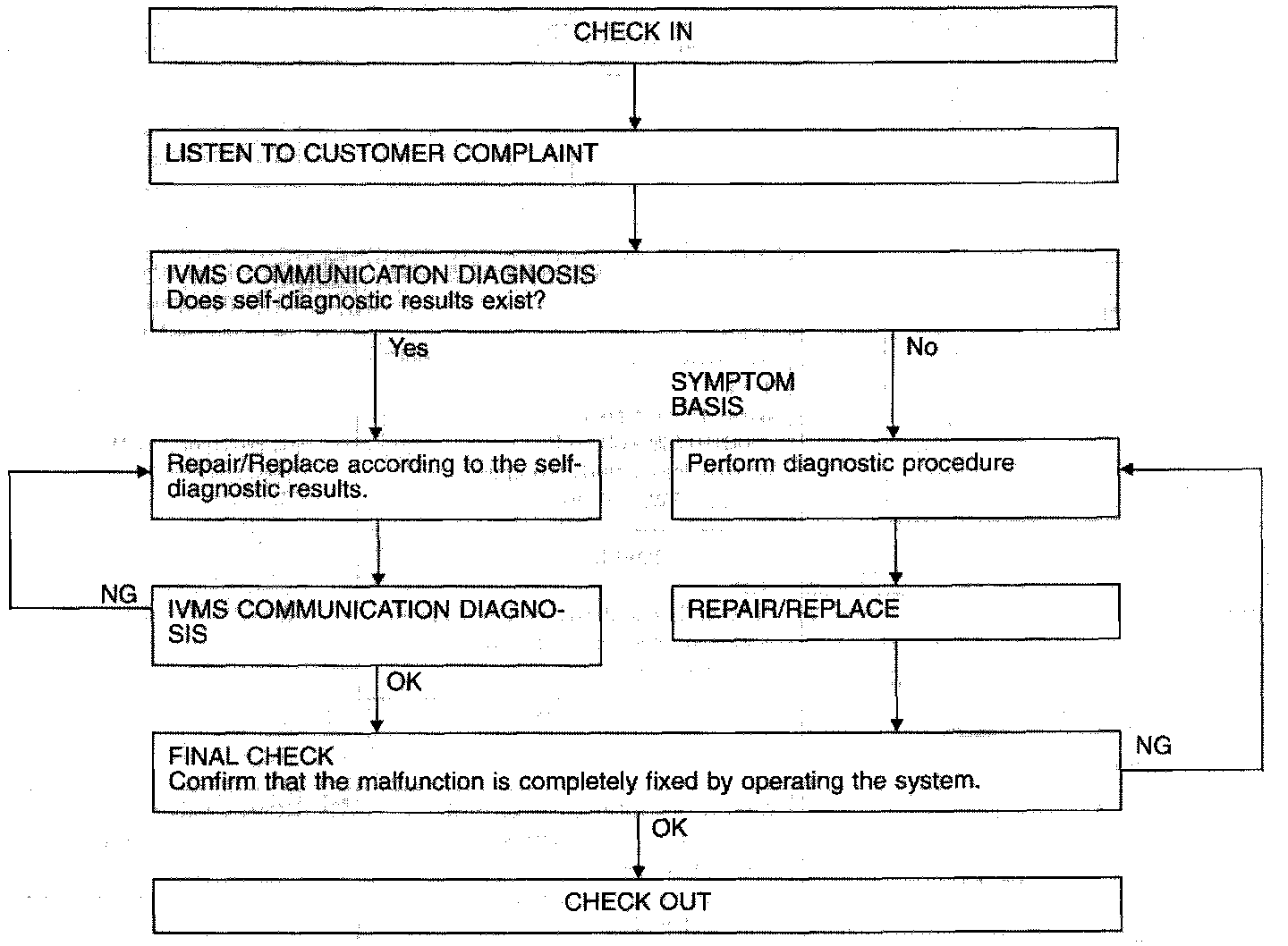

Work Flow

NOTE:
^ When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. Therefore, after reconnecting the LCU connectors, erase the memory.
^ To erase the memory, perform the procedure below.
Erase the memory with CONSULT or turn the ignition switch to "OFF" position and remove 7.5 A fuse (No. (56), located in the fuse and fusible link box).

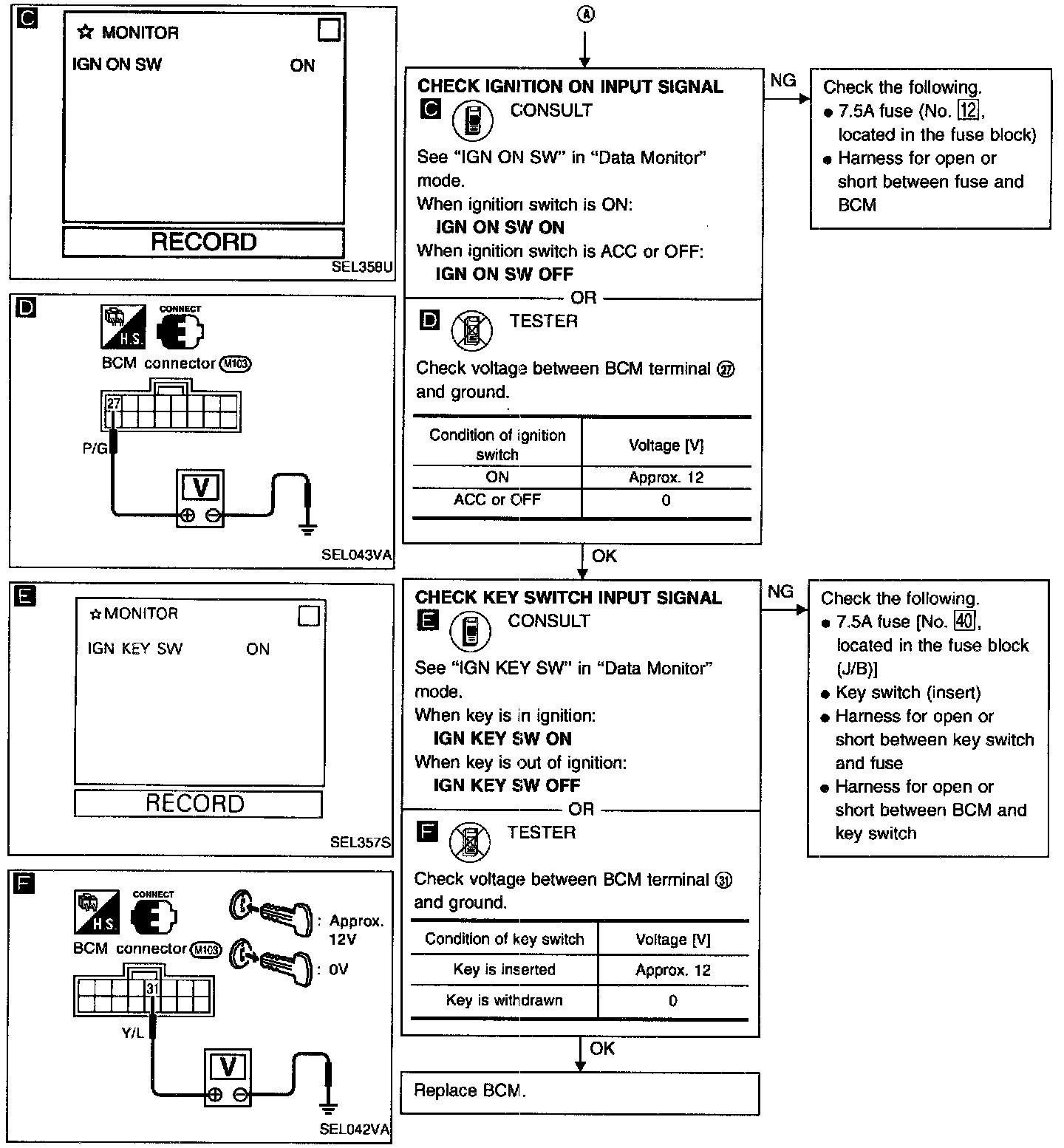

DIAGNOSTIC PROCEDURE 1

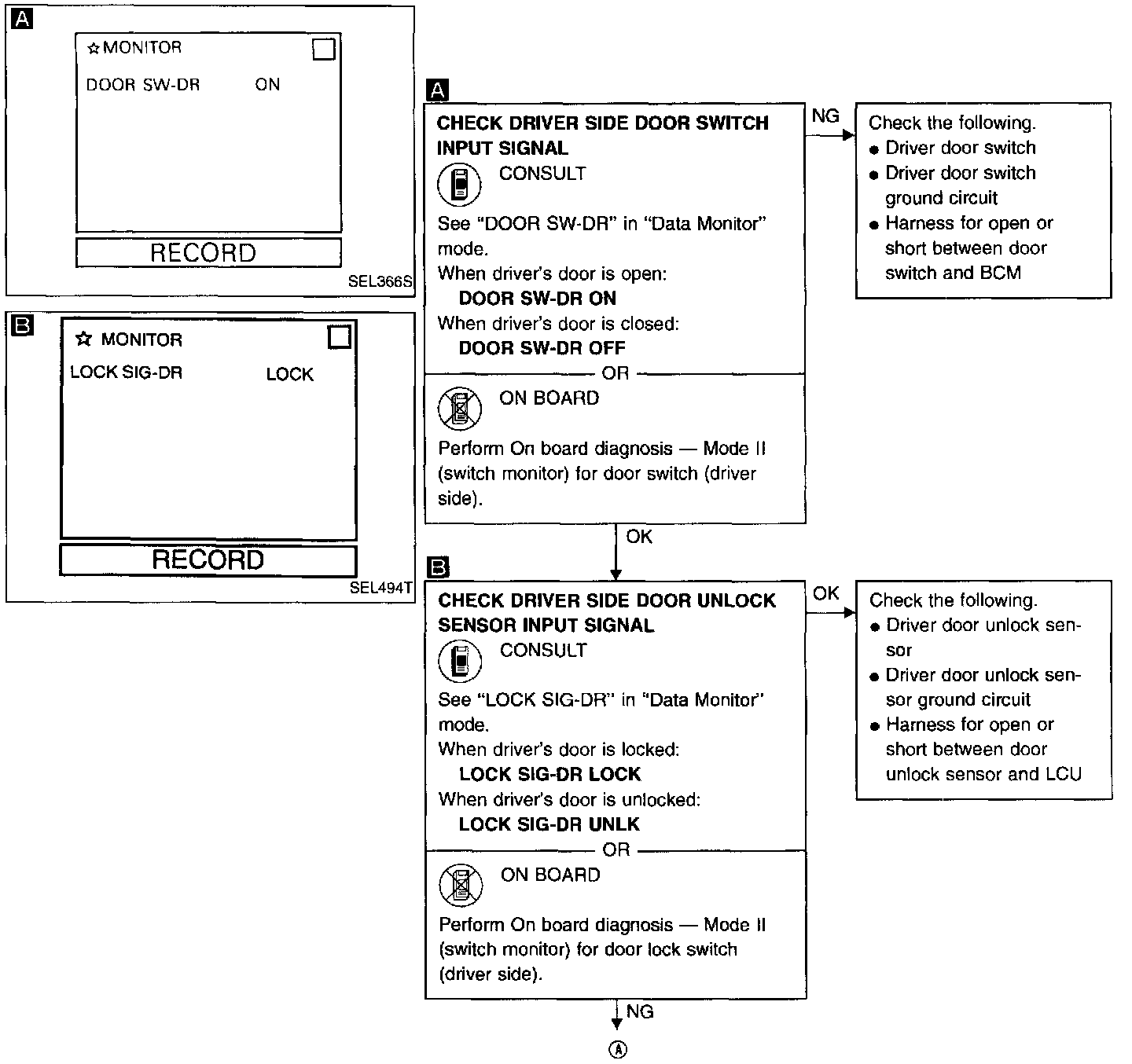

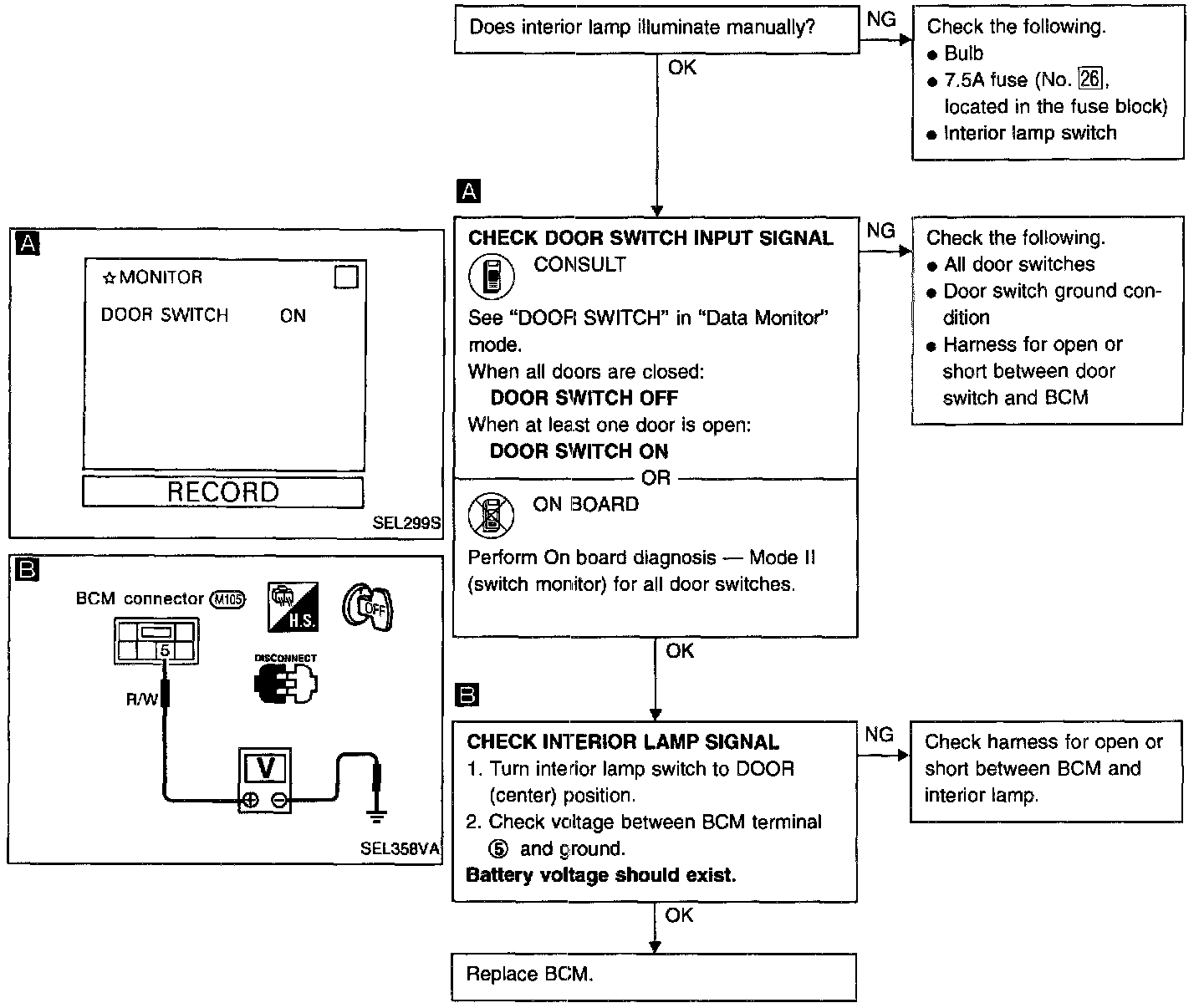

SYMPTOM: Interior lamp does not illuminate/does not turn off when door is opened/closed.

DIAGNOSTIC PROCEDURE 2







SYMPTOM: Interior lamp timer does not operate/does not cancel properly.
