Electrical Components Inspection

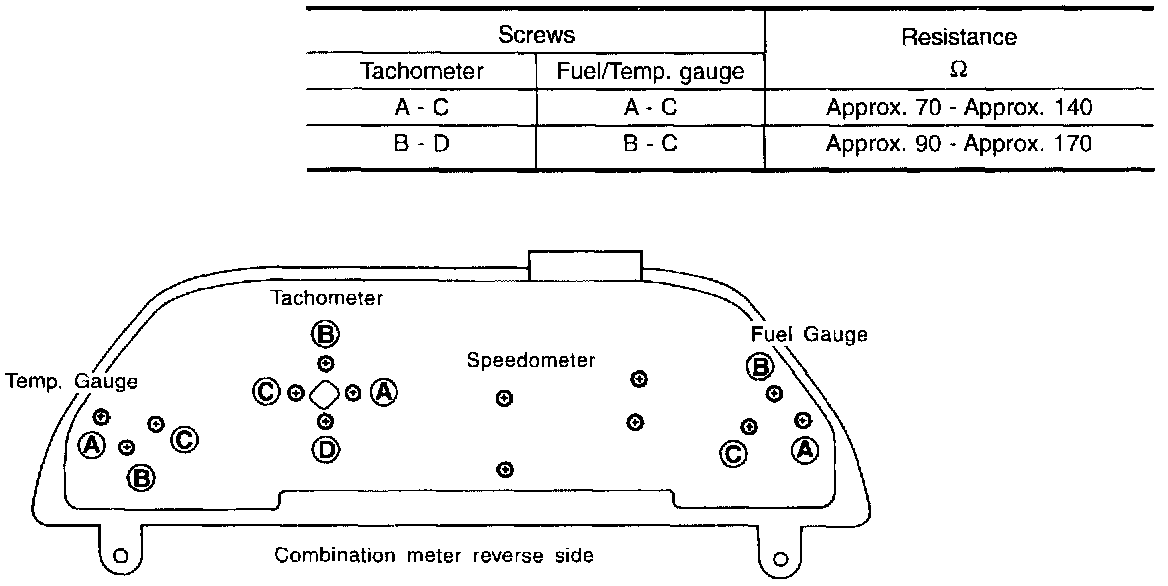

Meter/Gauge Resistance Check




1. Disconnect FPC connector. Refer to "Flexible Print Circuit (FPC)".
2. Check resistance between installation screws of meter/gauge.

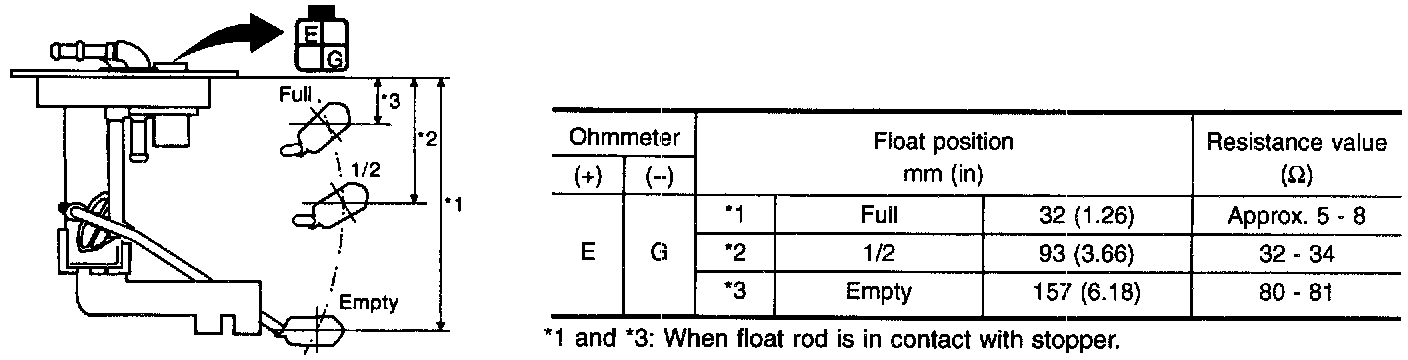

Fuel Tank Gauge Unit Check




Check the resistance between terminals (G) and (E)

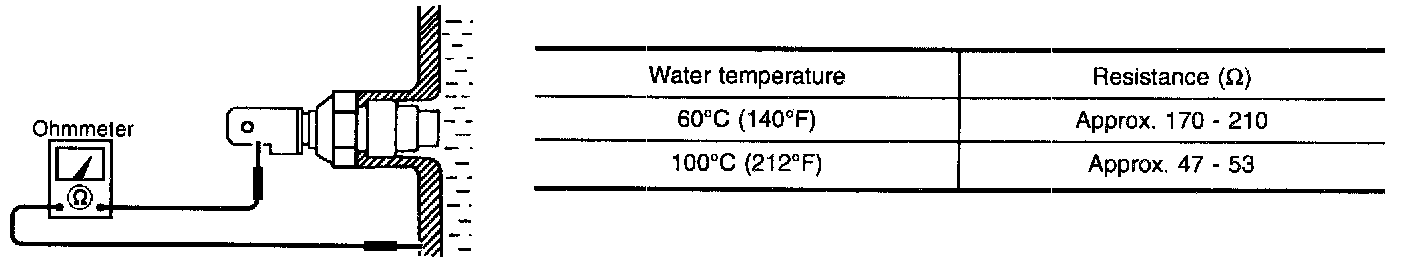

Thermal Transmitter Check




Check the resistance between the terminals of thermal transmitter and body ground

Vehicle Speed Sensor Check




1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage across (a) and (b).
