Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Manual A/C >> Preliminary Checks >> Preliminary Check 3 - Magnet Clutch Does Not Engage

Preliminary Check 3 - Magnet Clutch Does Not Engage




PRELIMINARY CHECK 3
Magnet clutch does not engage in DEF mode.

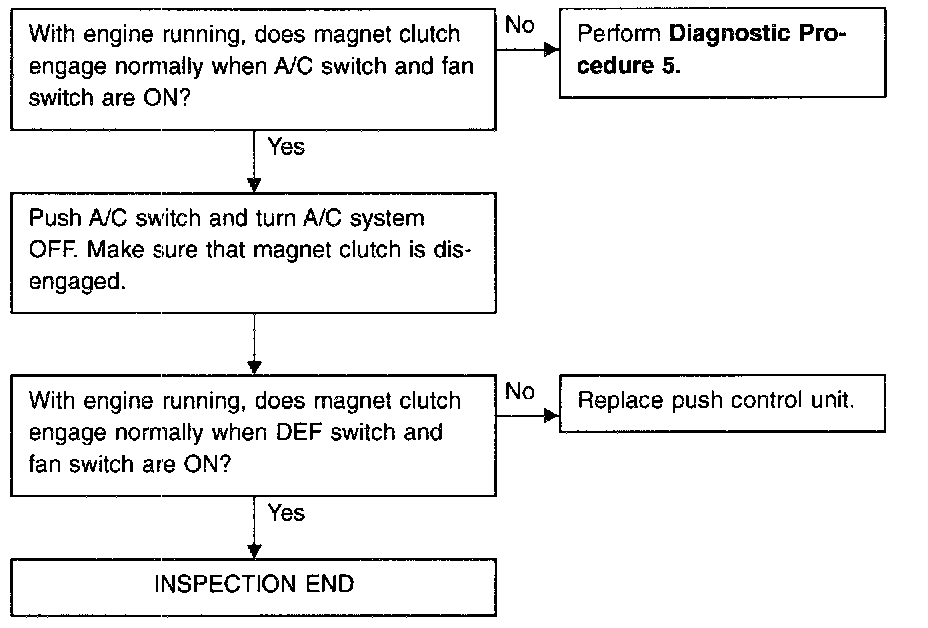

^ Perform PRELIMINARY CHECK 2 before referring to the flow chart.
