Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Procedures >> Auto A/C >> Diagnostic Procedure 4

Diagnostic Procedure 4




Diagnostic Procedure 4

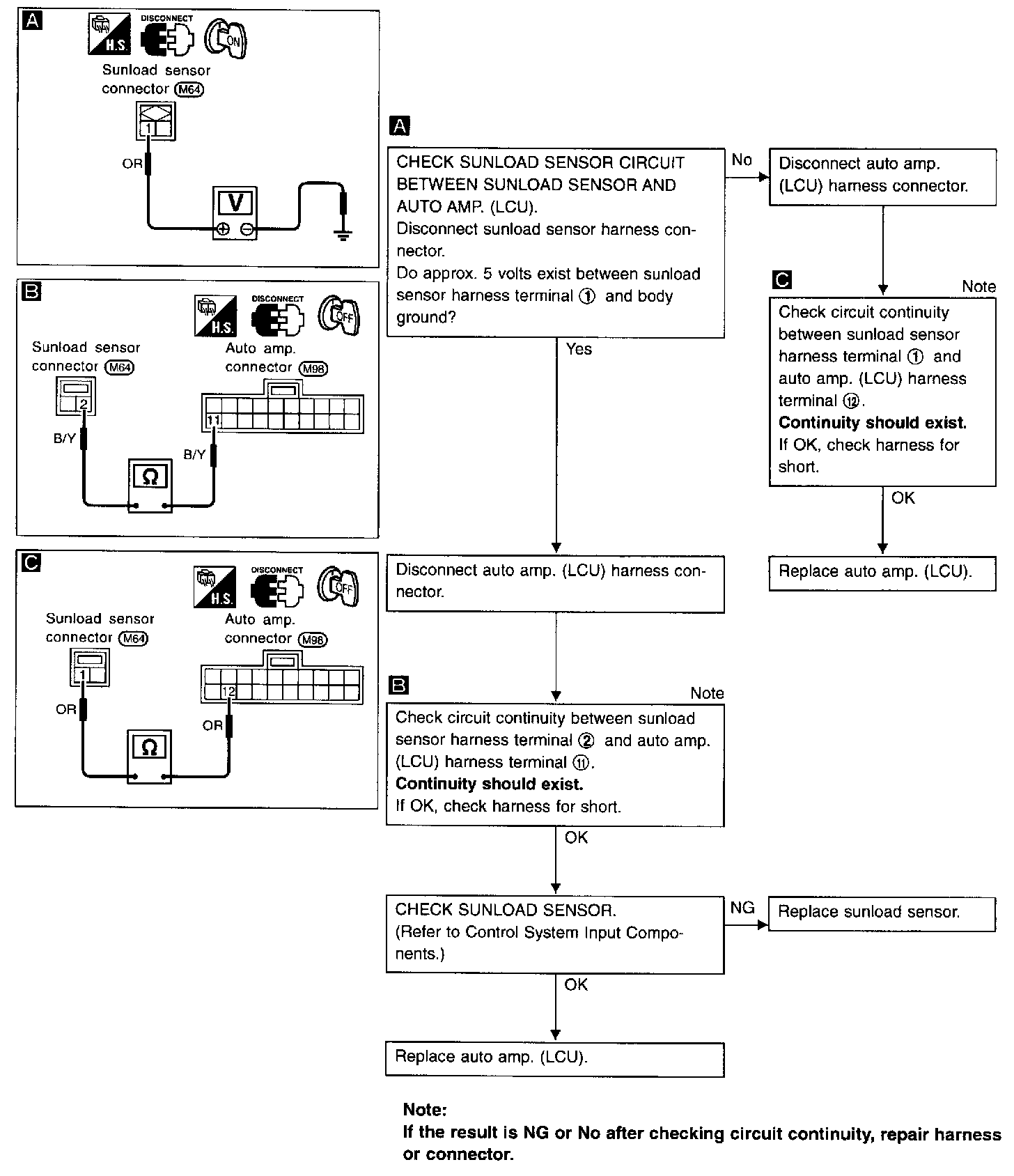

SYMPTOM: Sunload sensor circuit is open or shorted. (25 or -25 is indicated on display as a result of conducting Self-diagnosis STEP 2.)
