Preliminary Check 7: Discharged Air Temperature Does Not Change
Preliminary Check 7: Discharged Air Temperature Does Not Change

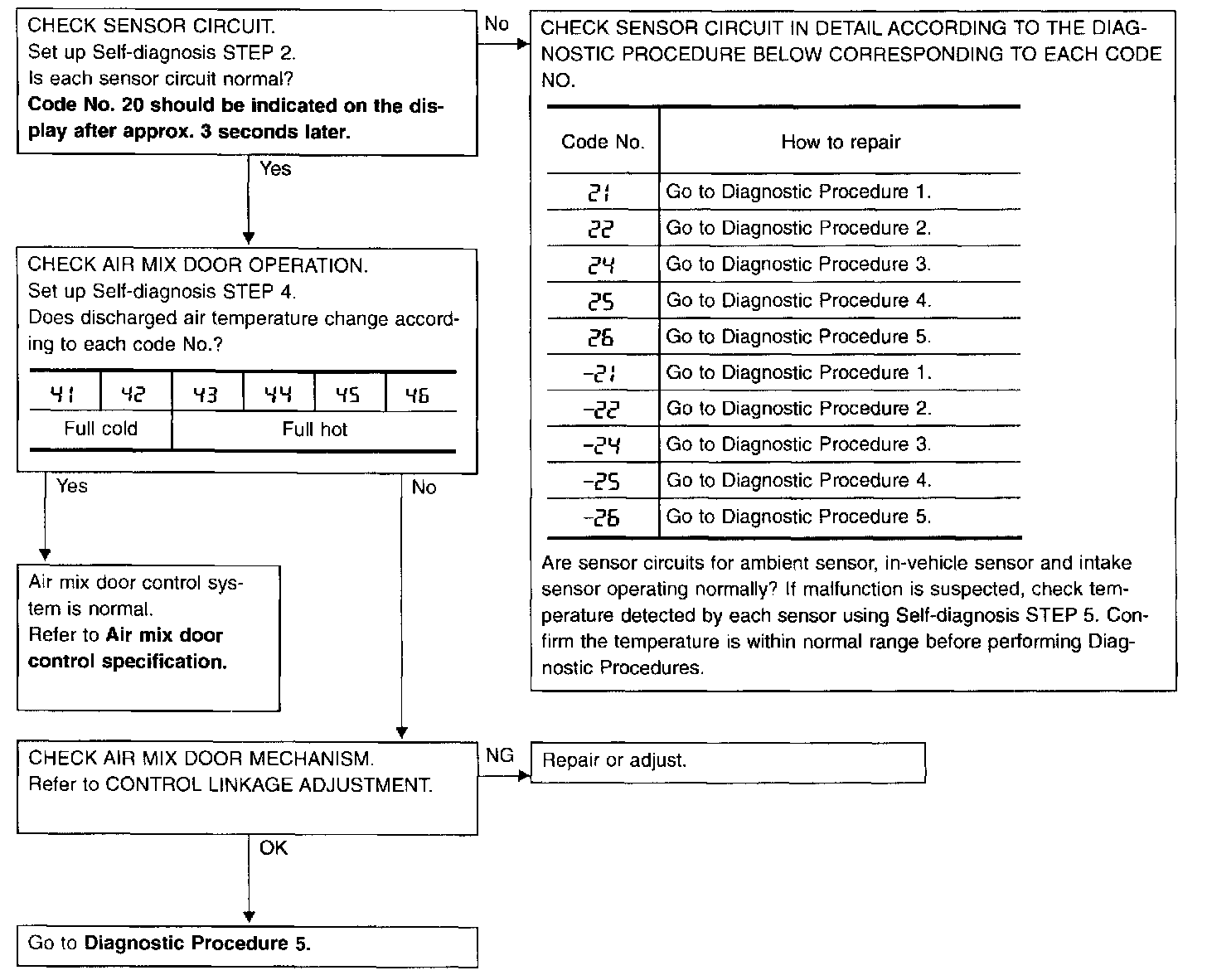

PRELIMINARY CHECK 7
Discharged air temperature does not change.
^
Perform Self-diagnosis STEP 1 before referring to the flow chart.
