Home
>>
Nissan-Datsun
>>
1999
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Auto A/C
>>
Preliminary Checks
>>
Preliminary Check 2: Intake Door Does Not Change
Preliminary Check 2: Intake Door Does Not Change

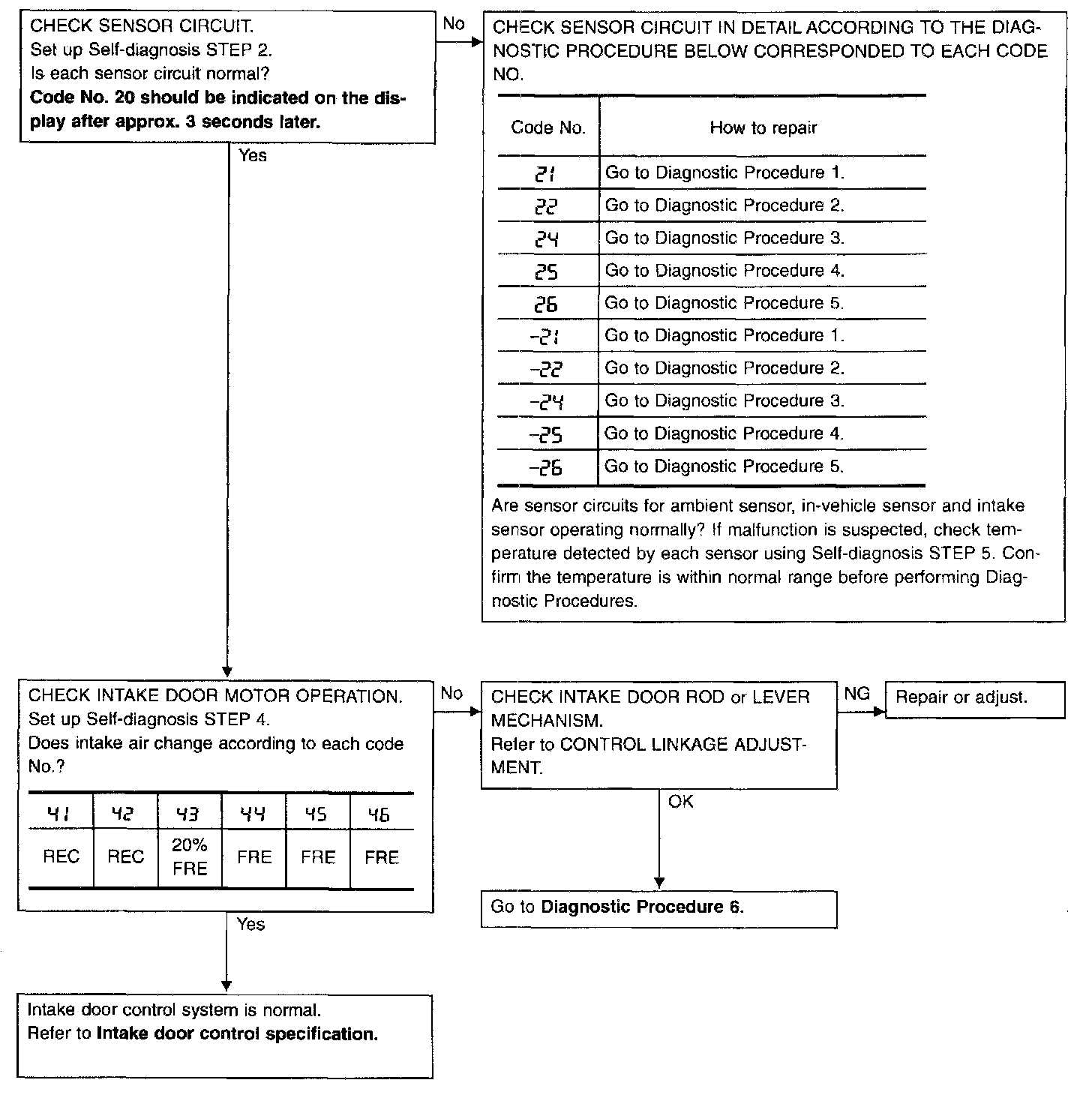

PRELIMINARY CHECK 2
Intake door
does not change.
^
Perform Self-diagnosis STEP 1 before referring to the flow chart.
