Preliminary Check 1: Air Outlet Does Not Change
Preliminary Check 1: Air Outlet Does Not Change

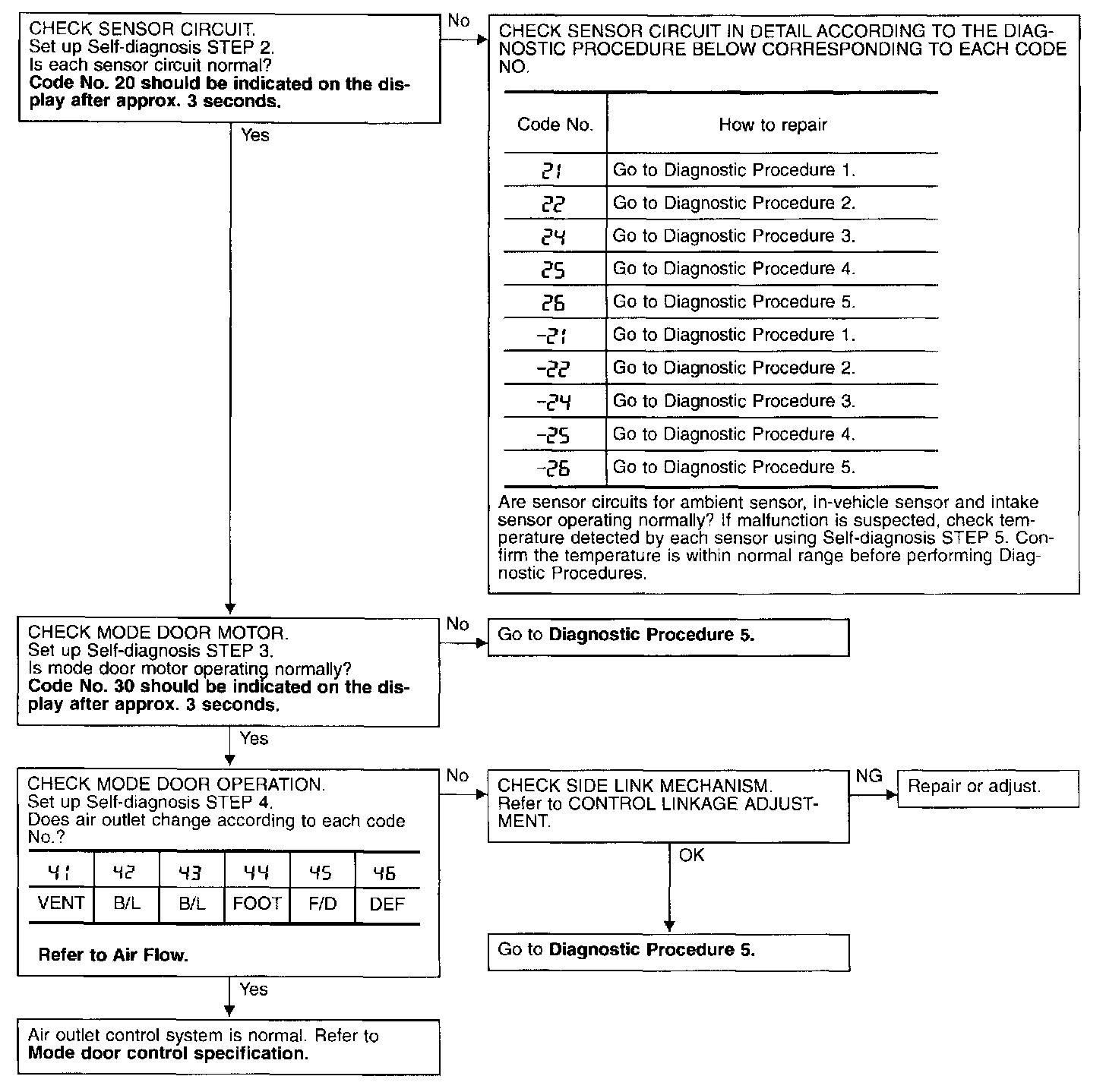

PRELIMINARY CHECK 1
Air outlet does not change.
^
Perform Self-diagnosis STEP 1 before referring to the flow chart.
