Control Assembly: Testing and Inspection

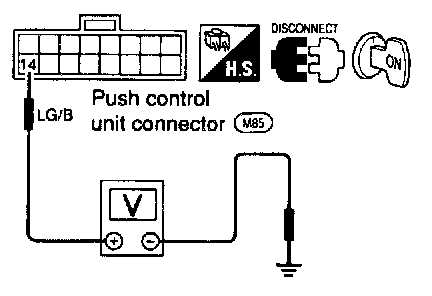

Check power supply circuit for push control unit with ignition switch at ON.
1. Disconnect push control unit harness connector.
2. Connect voltmeter from harness side.

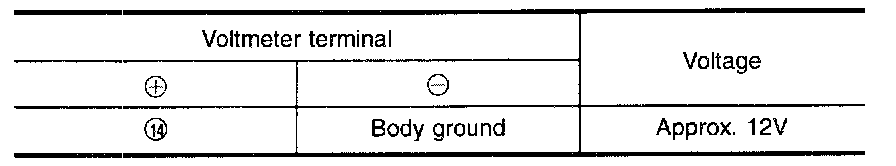

3. Measure voltage across terminal (14) and body ground.

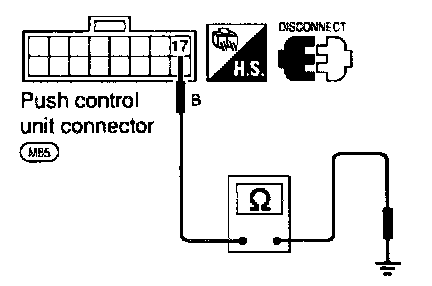

Check body ground circuit for push control unit.
1. Disconnect push control unit harness connector.
2. Connect ohmmeter from harness side.

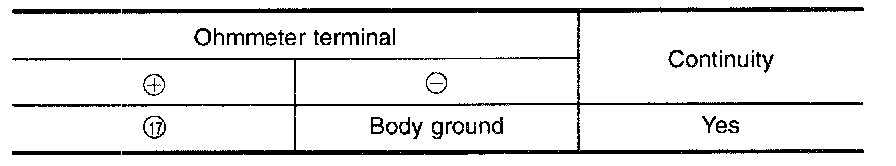

3. Check for continuity between terminal (17) and body ground.
