Intake Door Control

Components parts

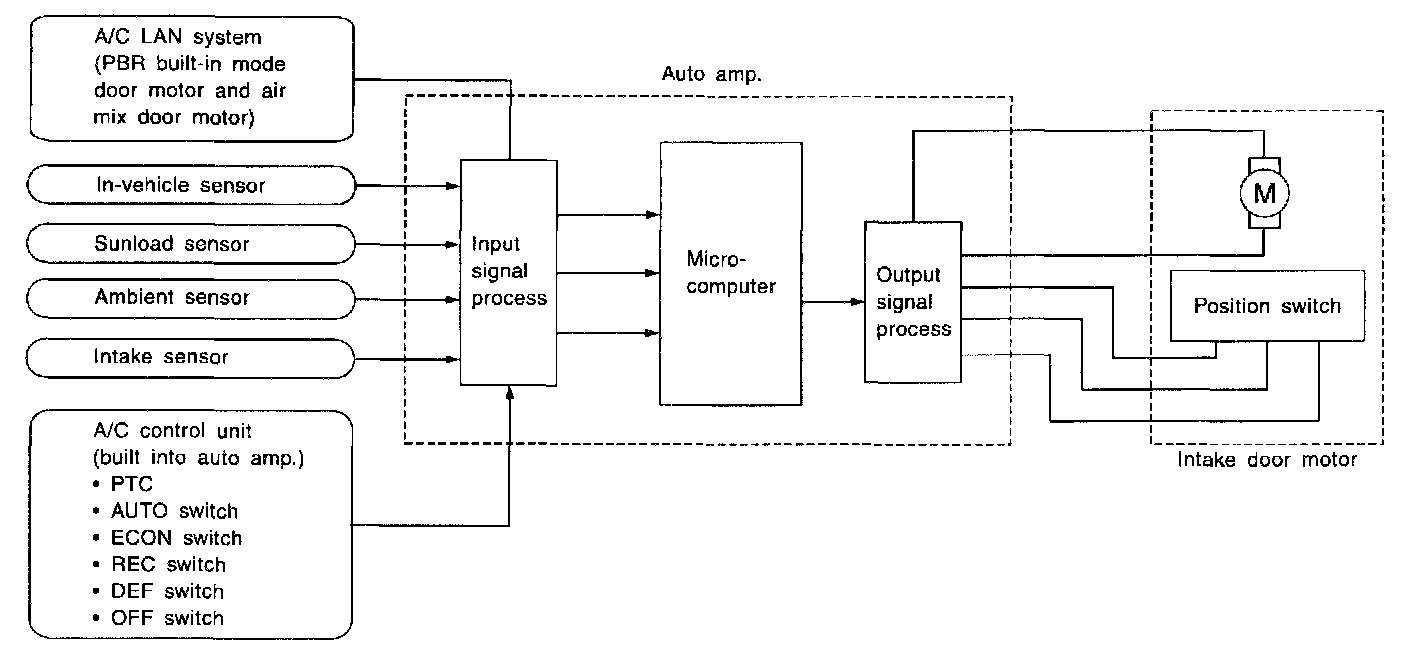

Intake door control system components are:
1. Auto amp.
2. Intake door motor
3. A/C LAN system (PBR built-in mode door motor and air mix door motor)
4. In-vehicle sensor
5. Ambient sensor
6. Sunload sensor
7. Intake sensor




System operation
The intake door control determines intake door position based on the ambient temperature and the in-vehicle temperature. When the ECON, DEF, or OFF buttons are pushed, the auto amp. sets the intake door at the "Fresh" position.

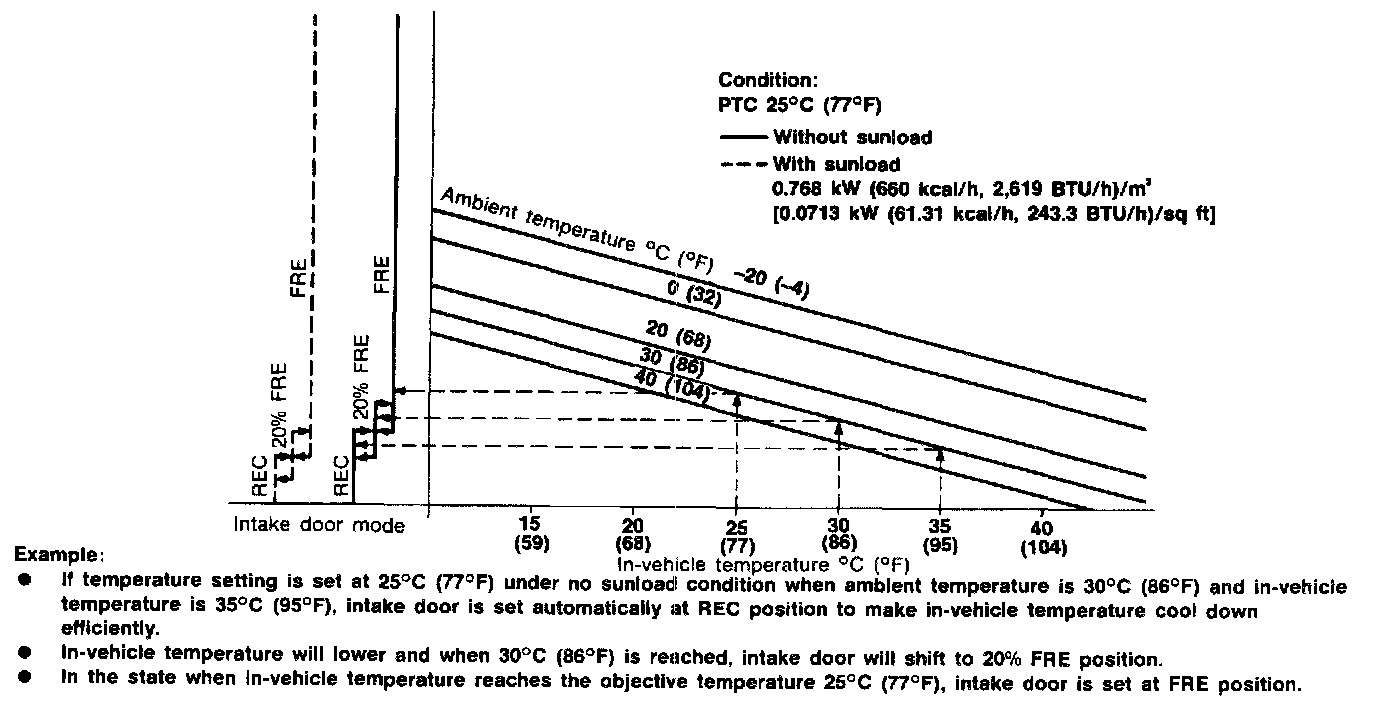

Intake door control specification
