Rear Crankshaft Main Bearing Seal: Service and Repair

Rear Oil Seal

1. Remove transaxle. Refer to Transmission and Drivetrain
2. Remove flywheel or drive plate.
3. Remove oil pan.





4. Remove rear oil seal retainer.

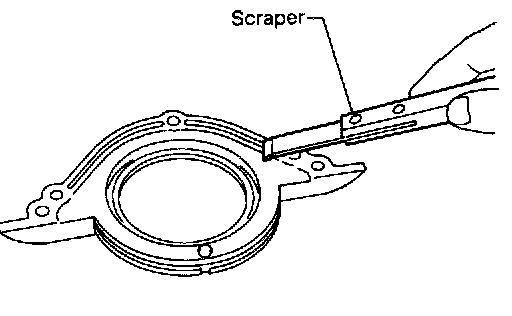

5. Remove traces of liquid gasket using scraper.
^ Remove old liquid gasket from the bolt hole and thread.





6. Apply liquid gasket to rear oil seal retainer.
