Front Crankshaft Seal: Service and Repair

Front Oil Seal

1. Remove the following parts:
^ Engine undercover
^ Front RH wheel and engine side cover
^ Drive belts
^ Crankshaft position sensor (REF)
^ Crankshaft pulley
Be careful not to damage sensor edge.

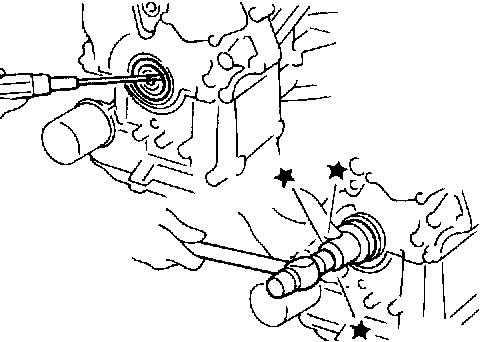

2. Remove front oil seal using a suitable tool.
Be careful not to scratch front cover.
3. Apply engine oil to new oil seal and install it using a suitable tool.
