Variable Induction Control Solenoid

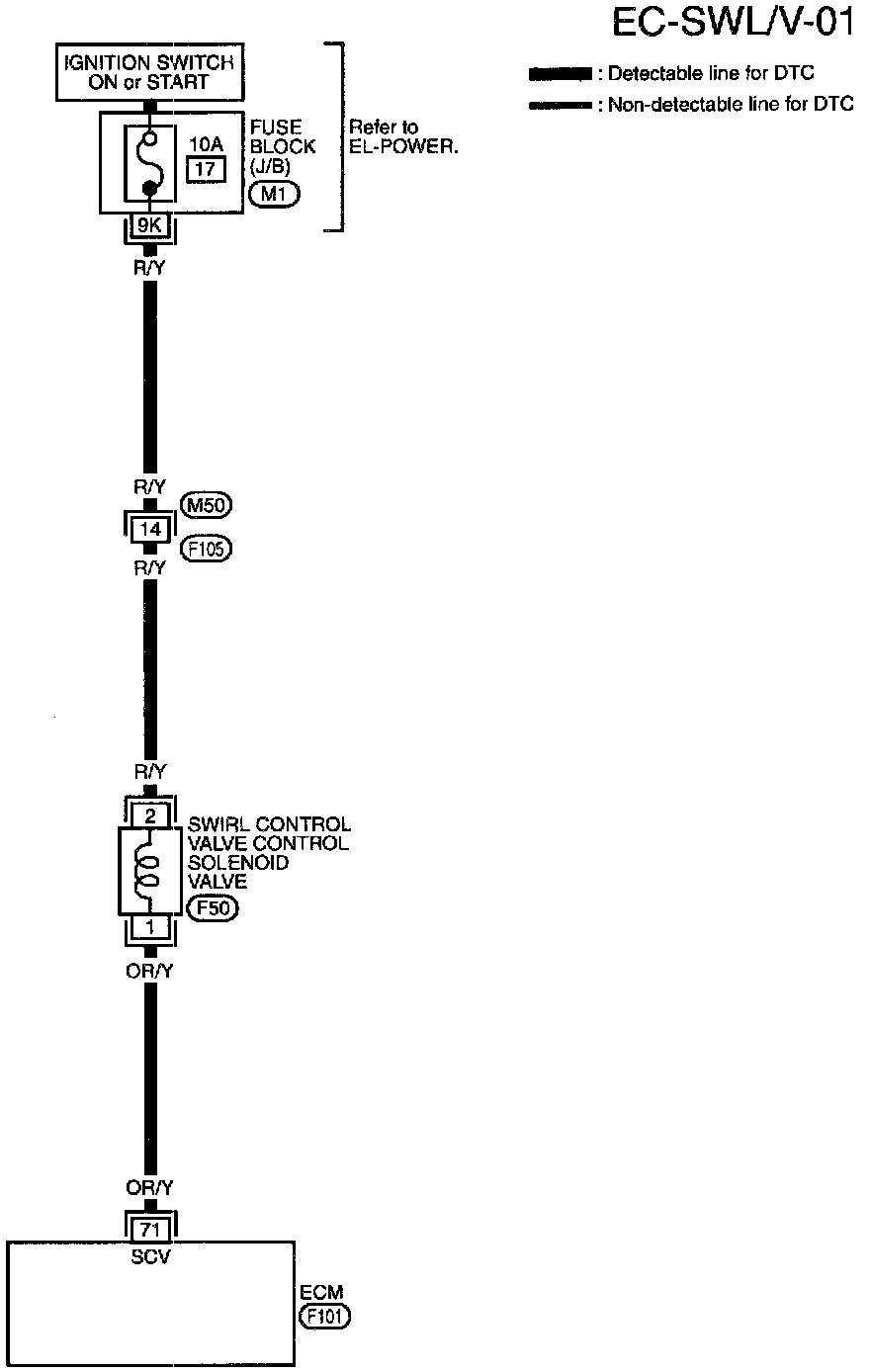

Circuit Diagram

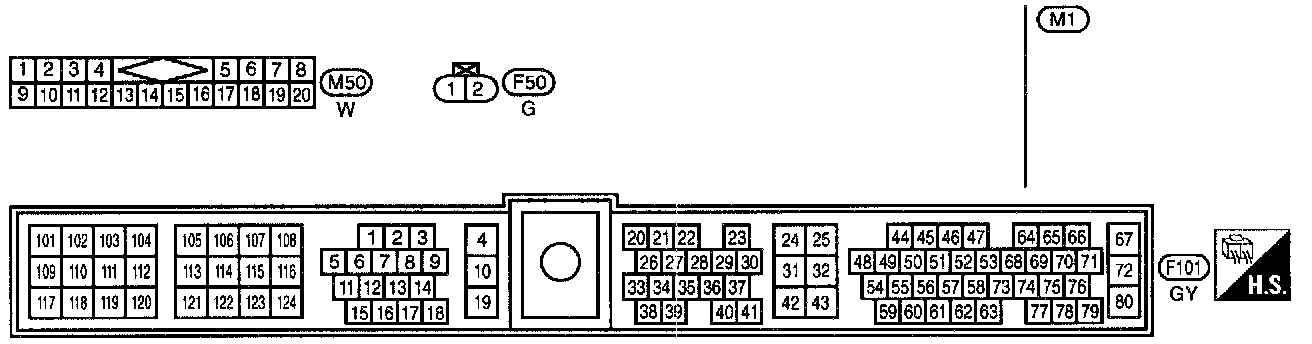

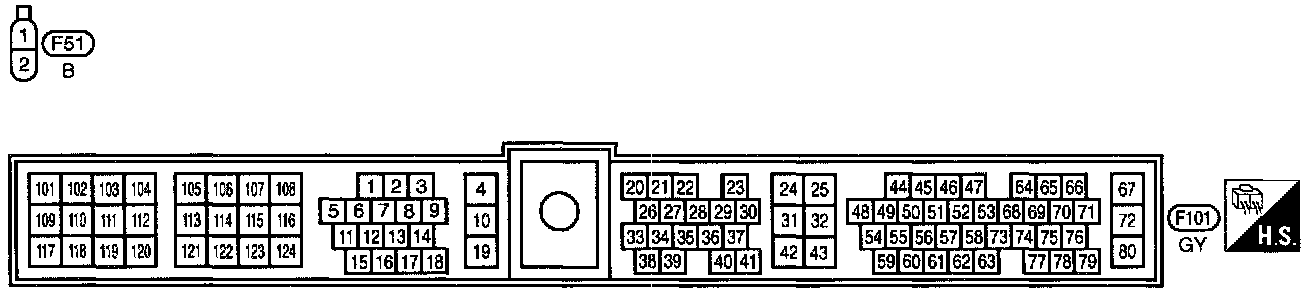

Circuit Connectors





M1 - Fuse Block - Junction Box (J/B)

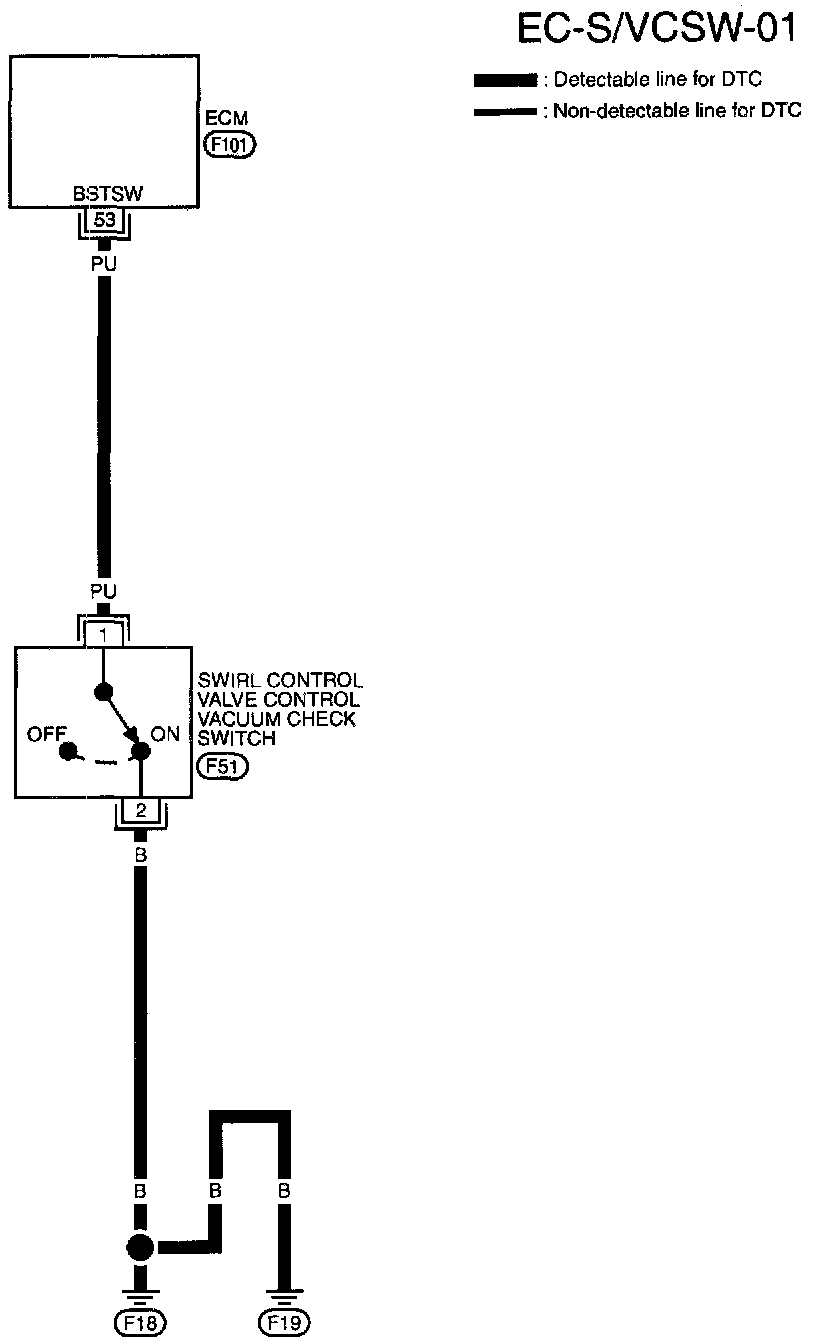

EC-S/VCSW-01
