EC-TFTS

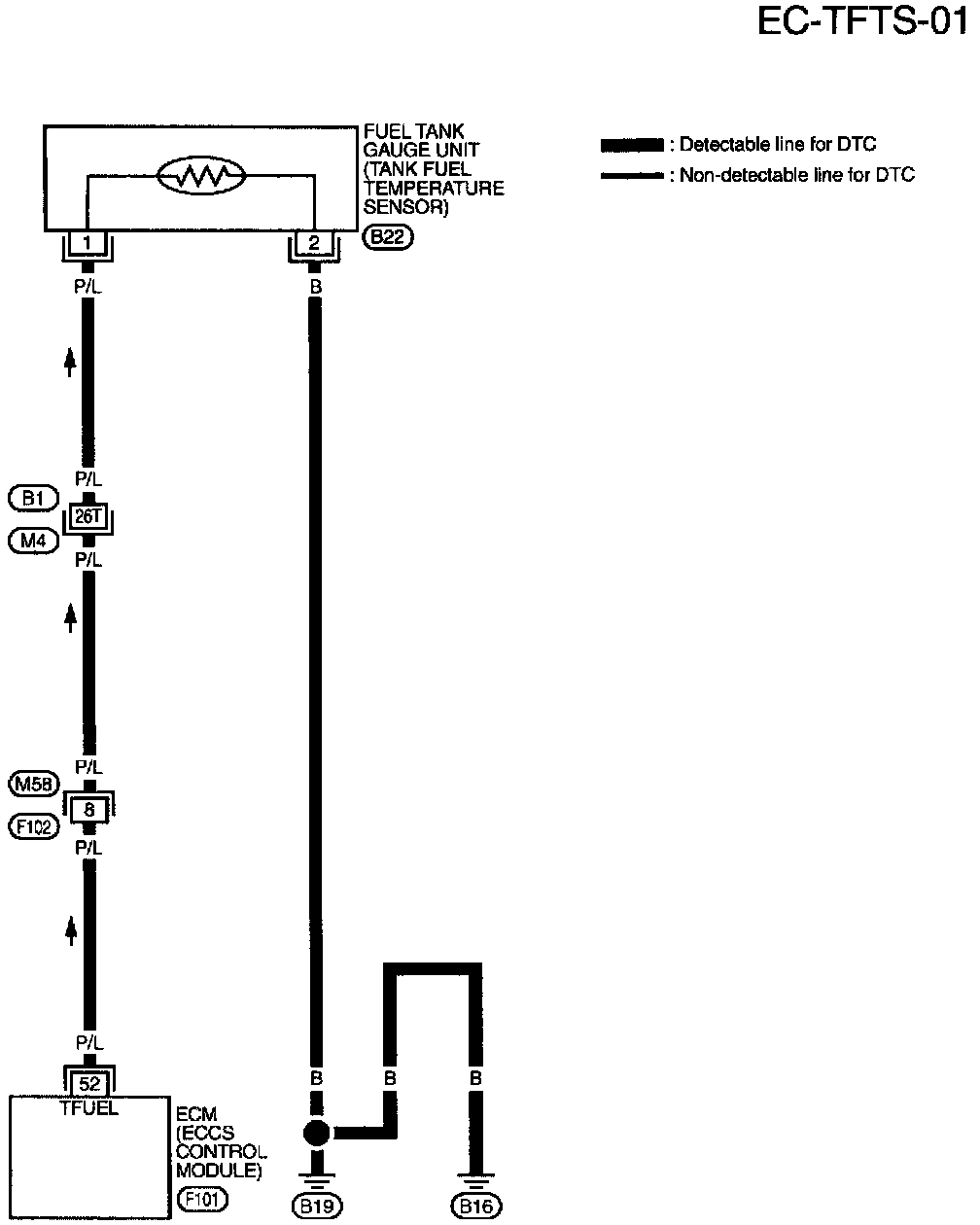

EC-TFTS-1




Circuit Connectors





B1, M4 - Body, Engine Room, Main Haness - Terminal Arrangement
