EC-PRE/SE

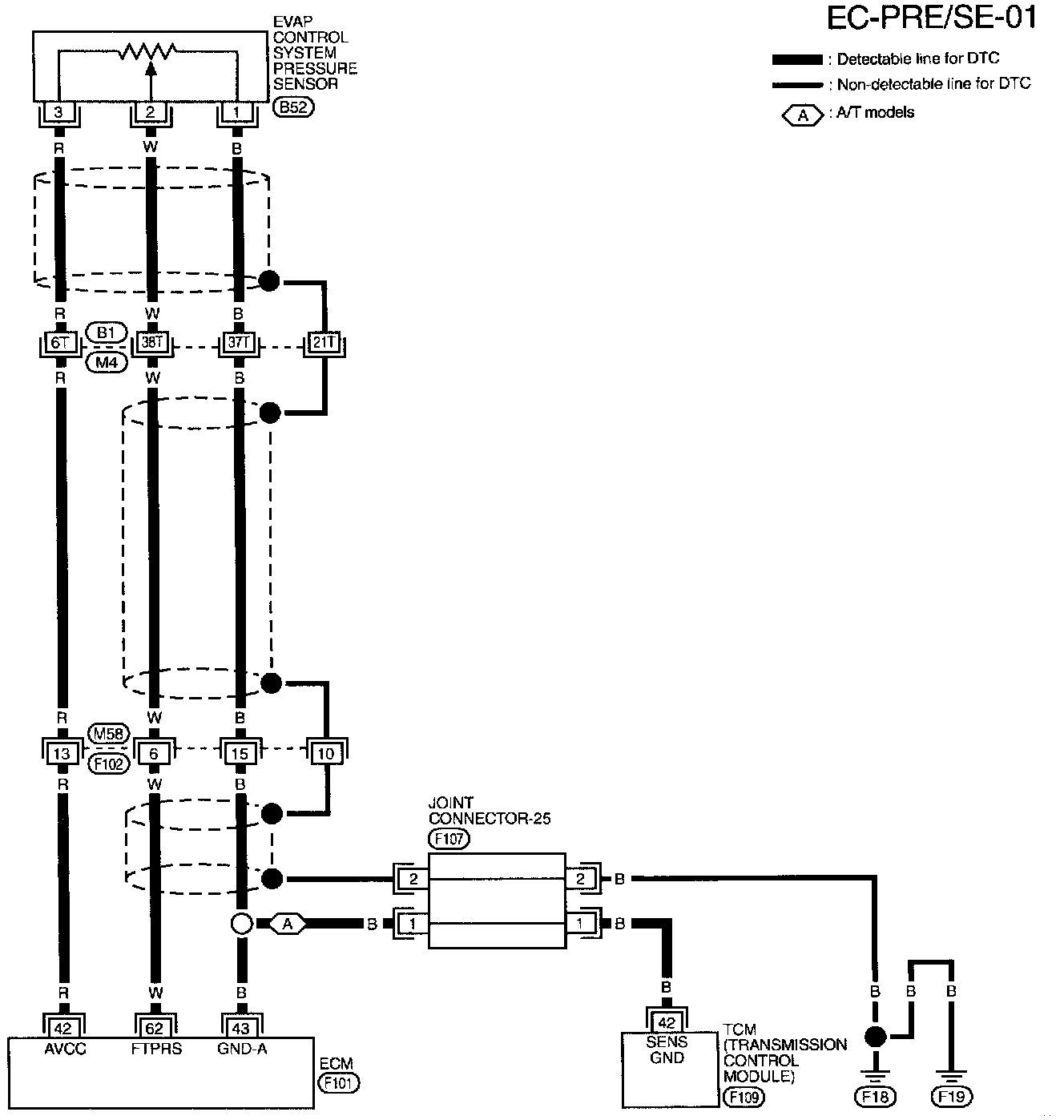

EC-PRE/SE-1

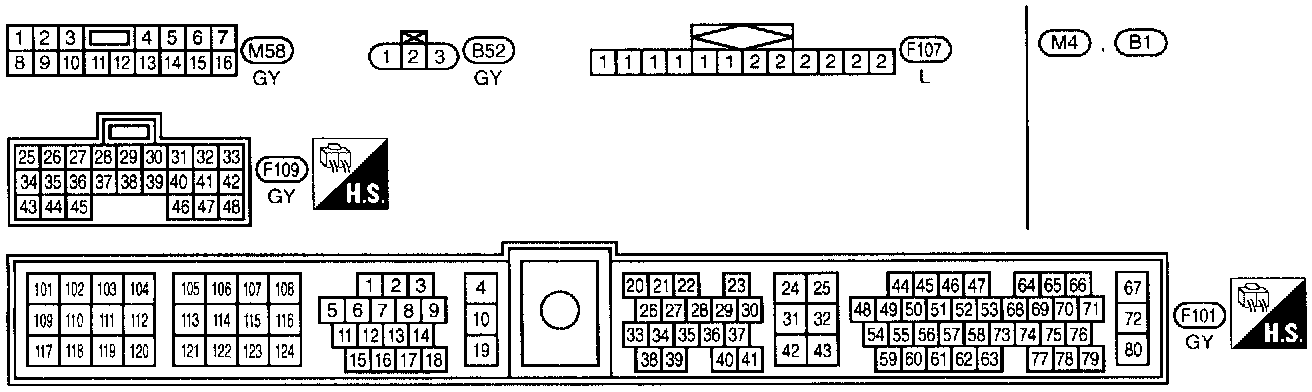

Circuit Connectors





B1, M4 - Body, Engine Room, Main Haness - Terminal Arrangement
