Cellular Phone

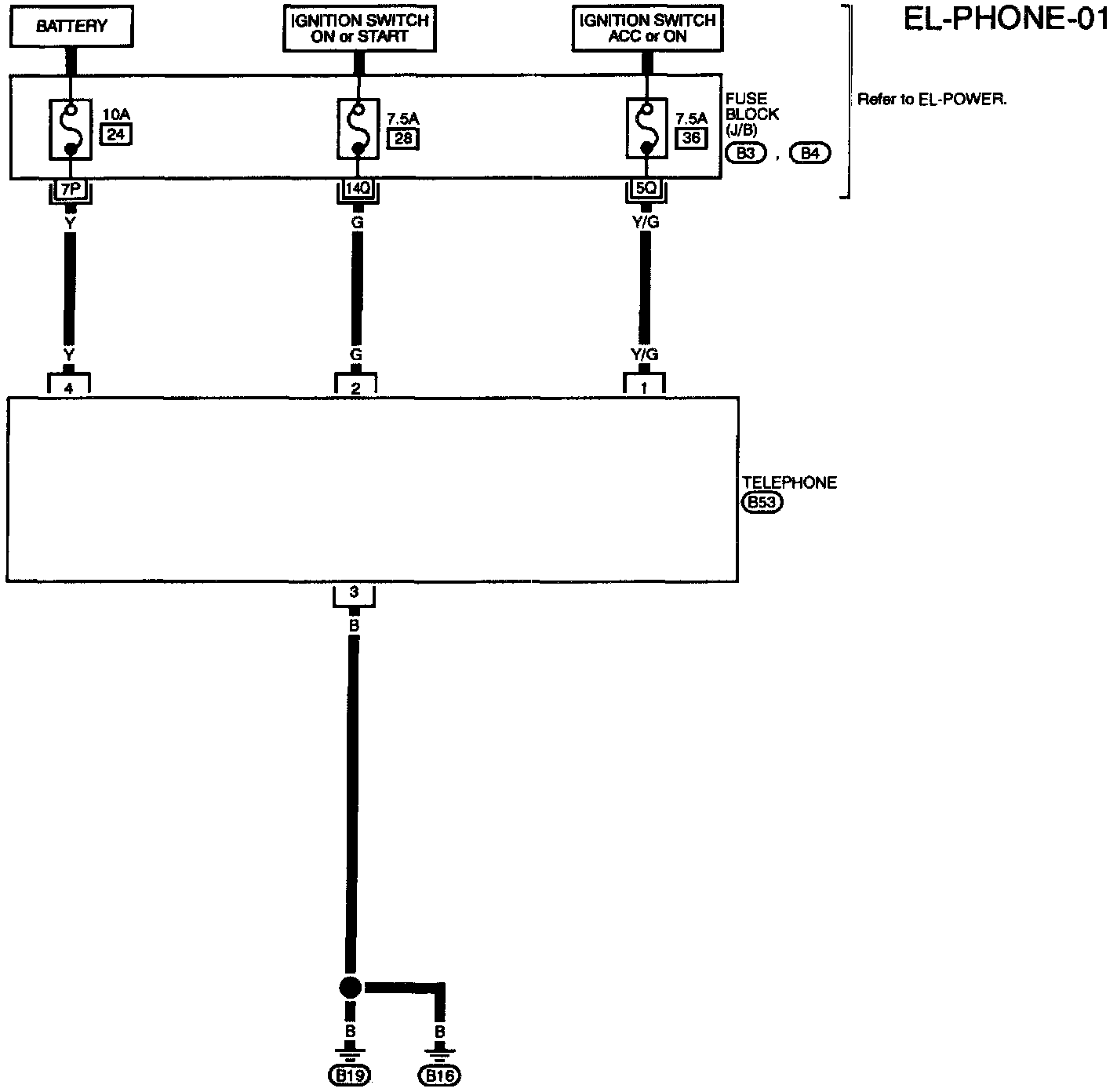

Circuit Diagram

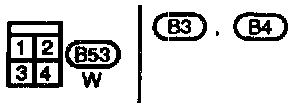

Circuit Connectors





B3, B4 Fuse Block - Junction Box (J/B) - Terminal Arrangement
