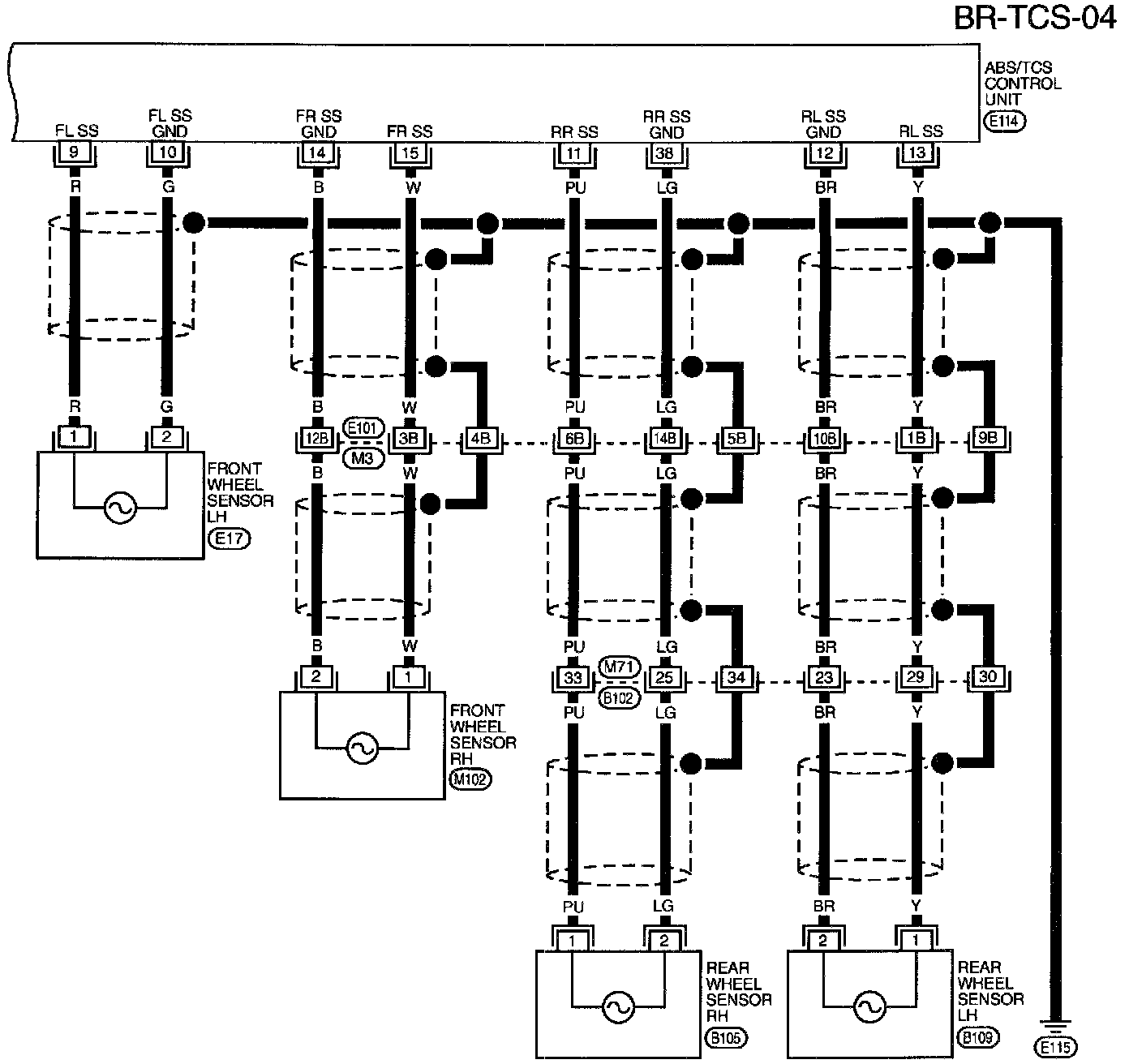

BR-TCS-4




BR-TCS-4





Circuit Connectors





M3, E101 - Body, Engine Room, Main Haness - Terminal Arrangement
