Multiple Junction Connector





Main Harness, Body Harness And Engine Harness Terminal Arrangements

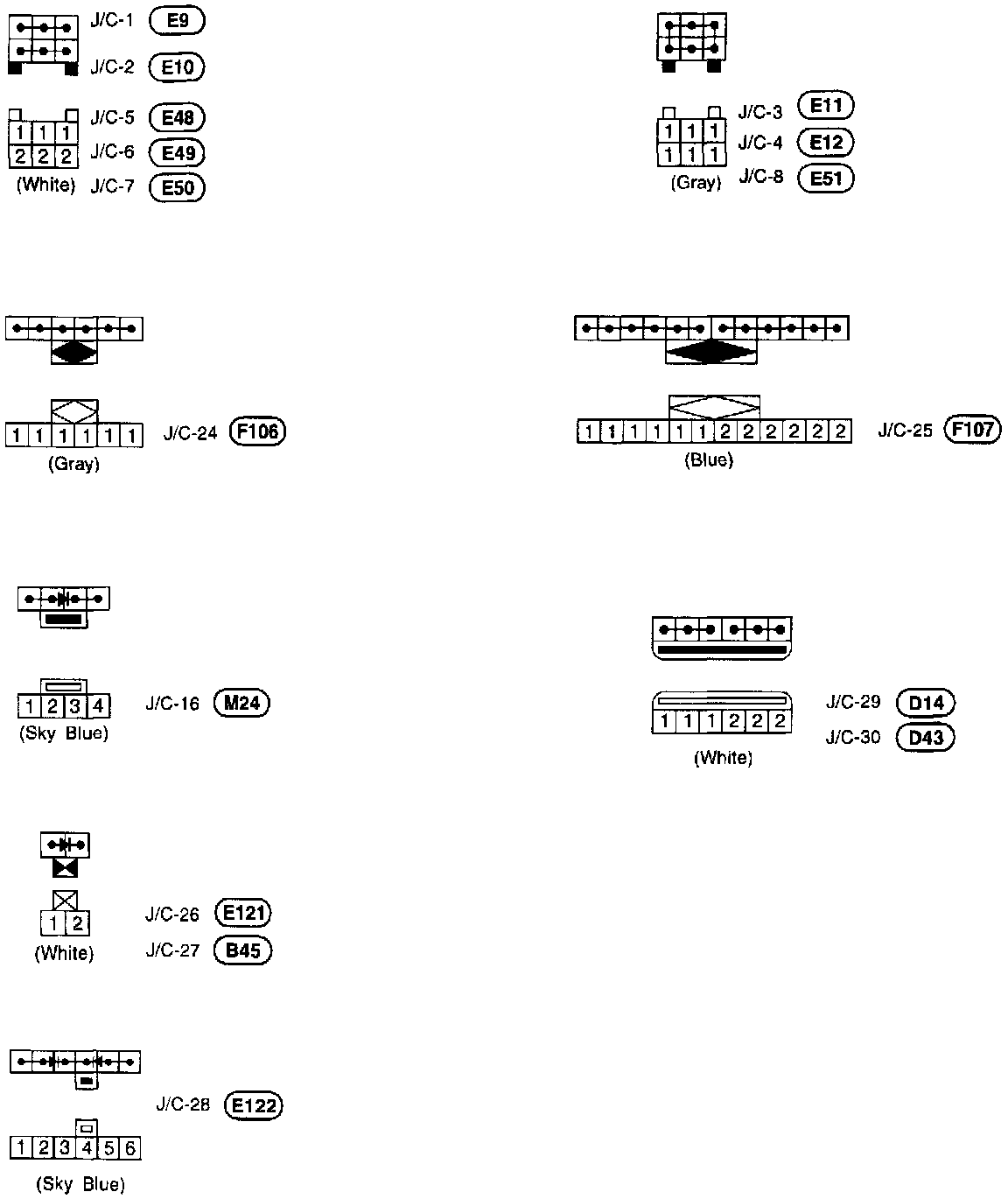

Joint Connector Terminal Arrangement
