Home
>>
Nissan-Datsun
>>
1999
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Front(Right/Left)/Rear(Right/Left) Wheel Sensor
Front(Right/Left)/Rear(Right/Left) Wheel Sensor

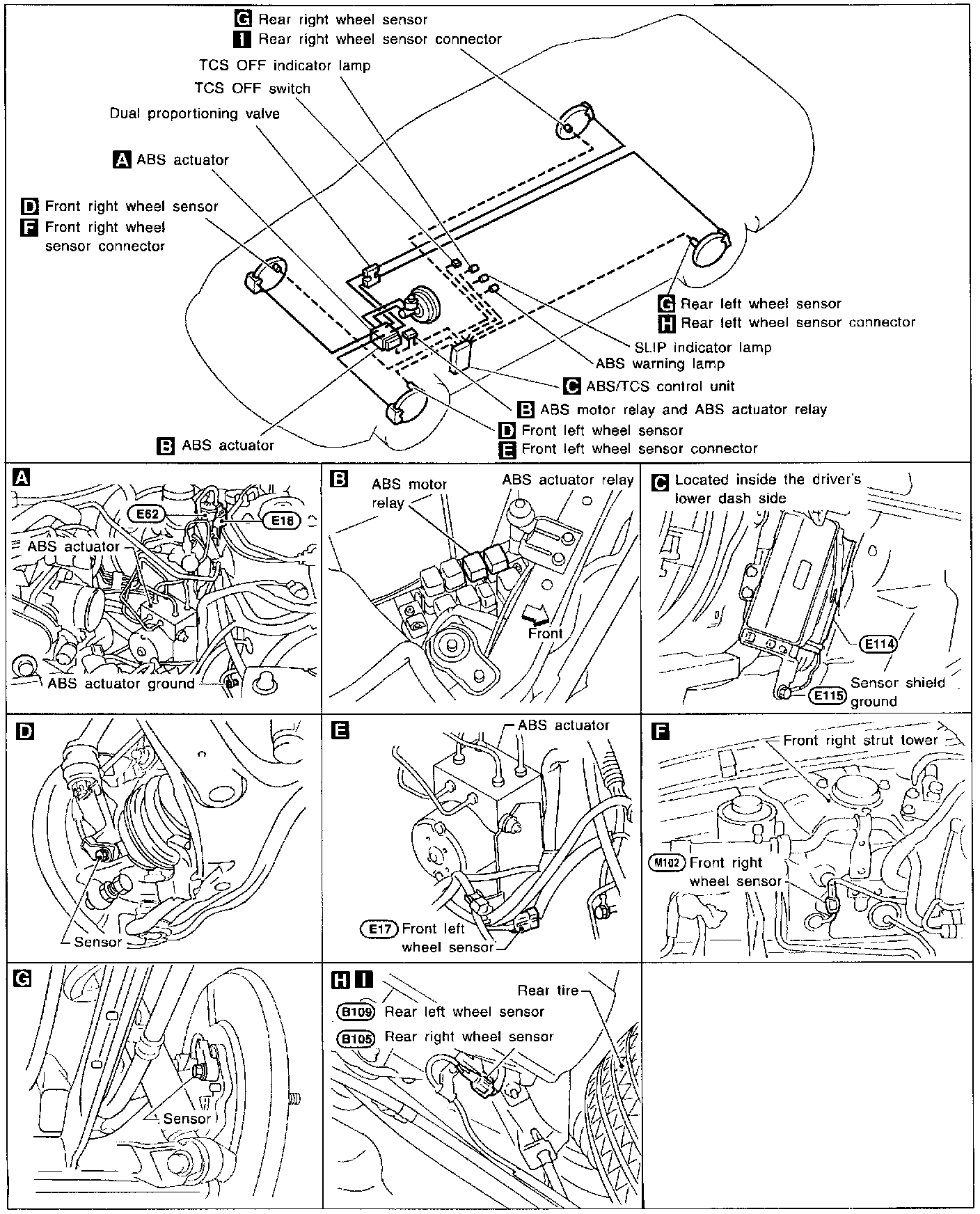

Component Parts and Harness Connector Location
