Automatic Speed Control Device Diagnostic Procedure
Trouble Diagnosis

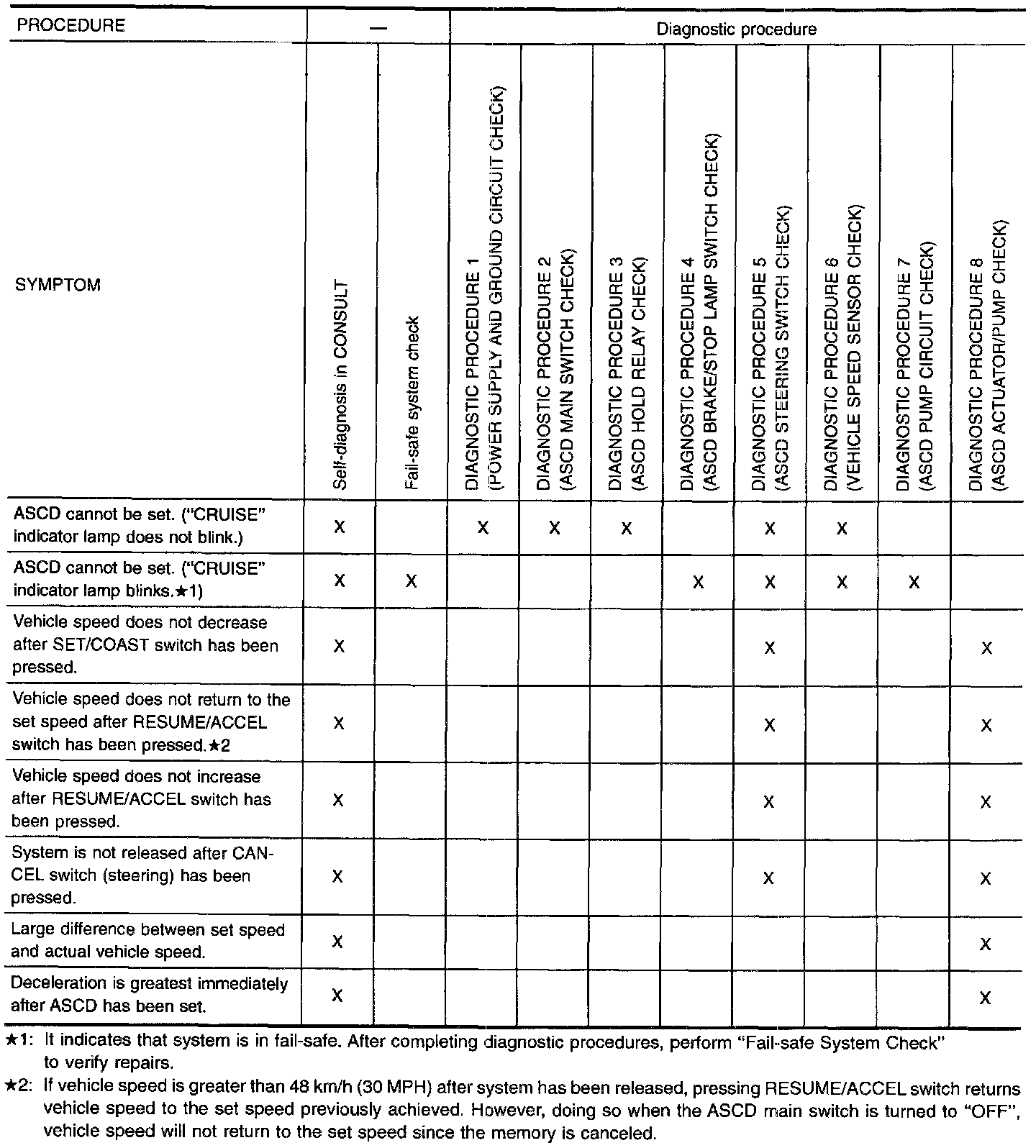

Symptom Chart

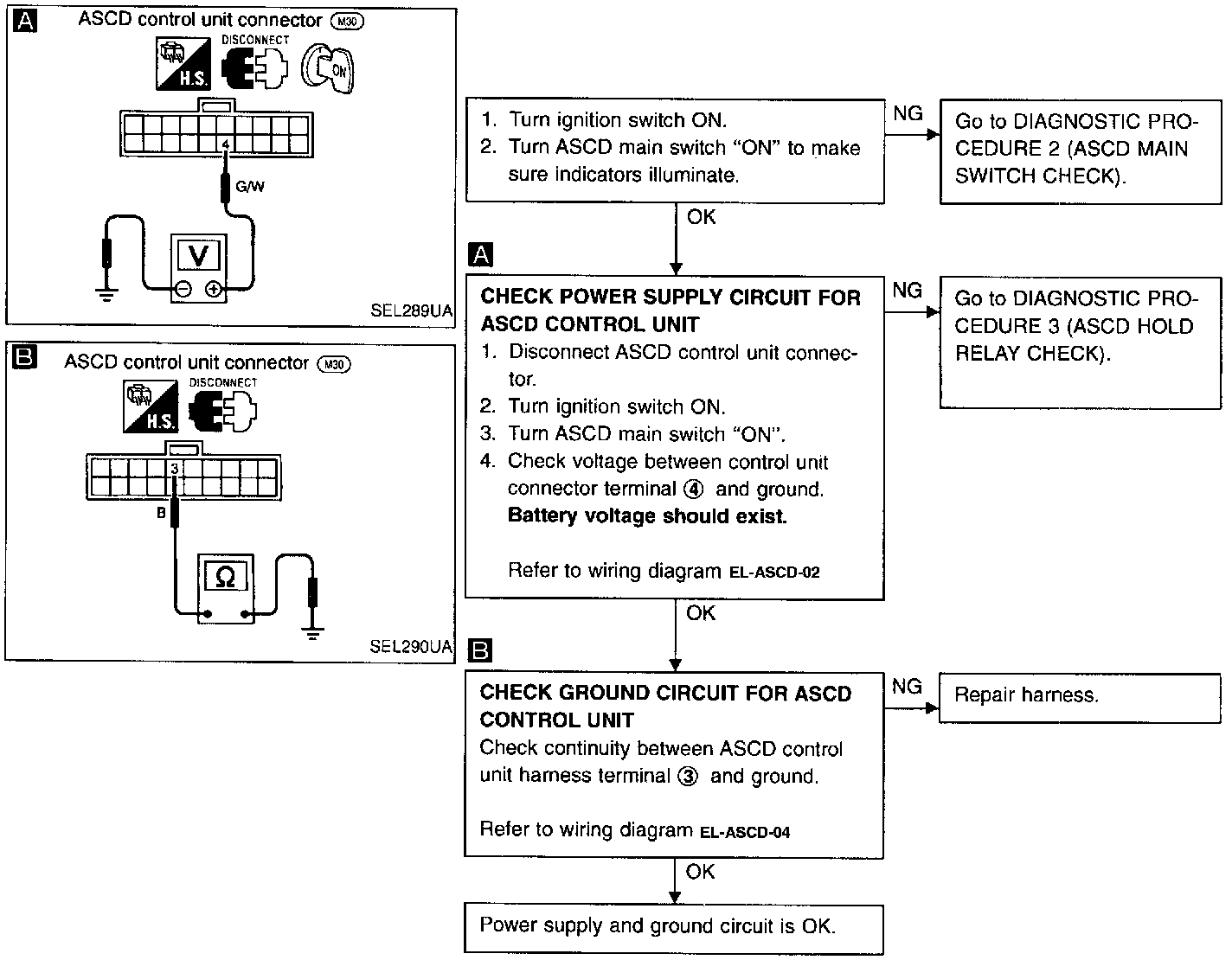

Diagnostic Procedure 1 (Power Supply and Ground Circuit Check)

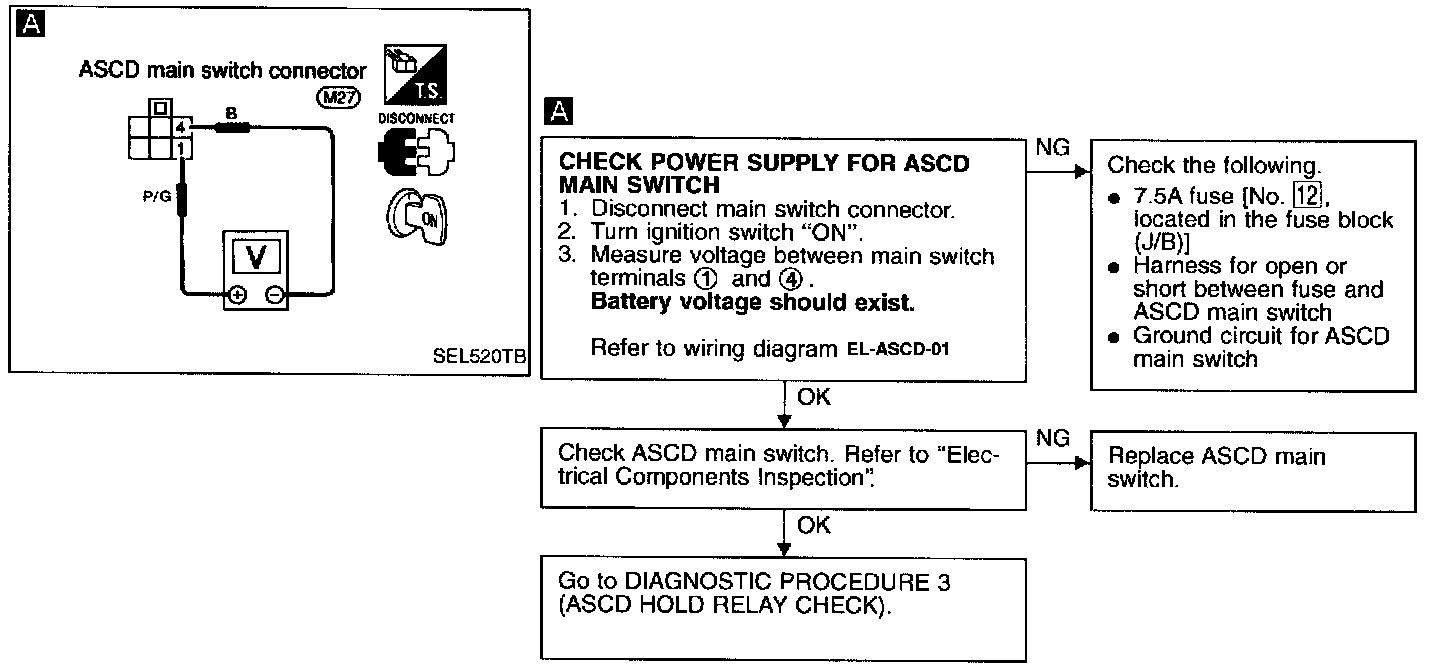

Diagnostic Procedure 2 (ASCD Main Switch Check)

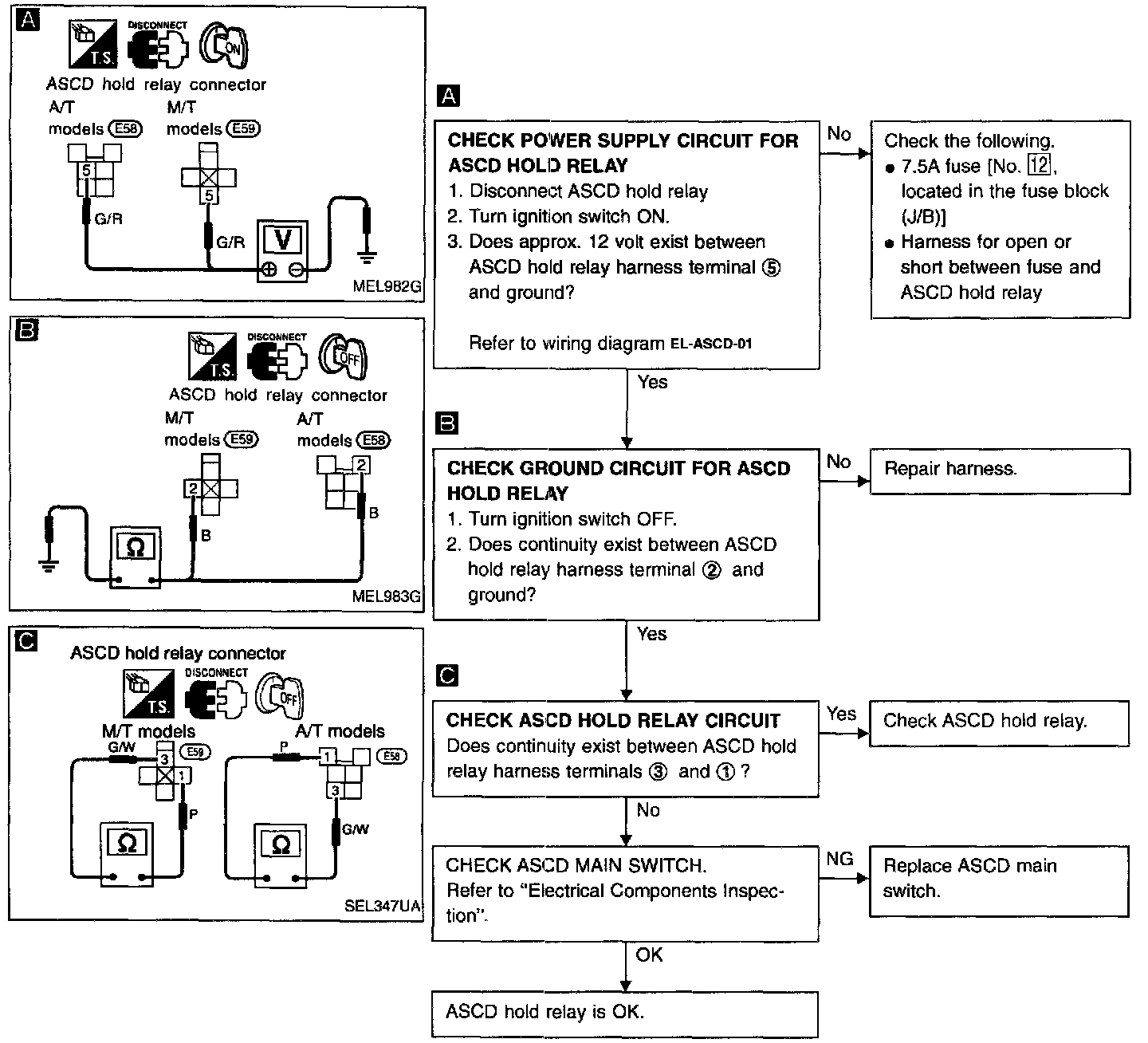

Diagnostic Procedure 3 (ASCD Hold Relay Check)

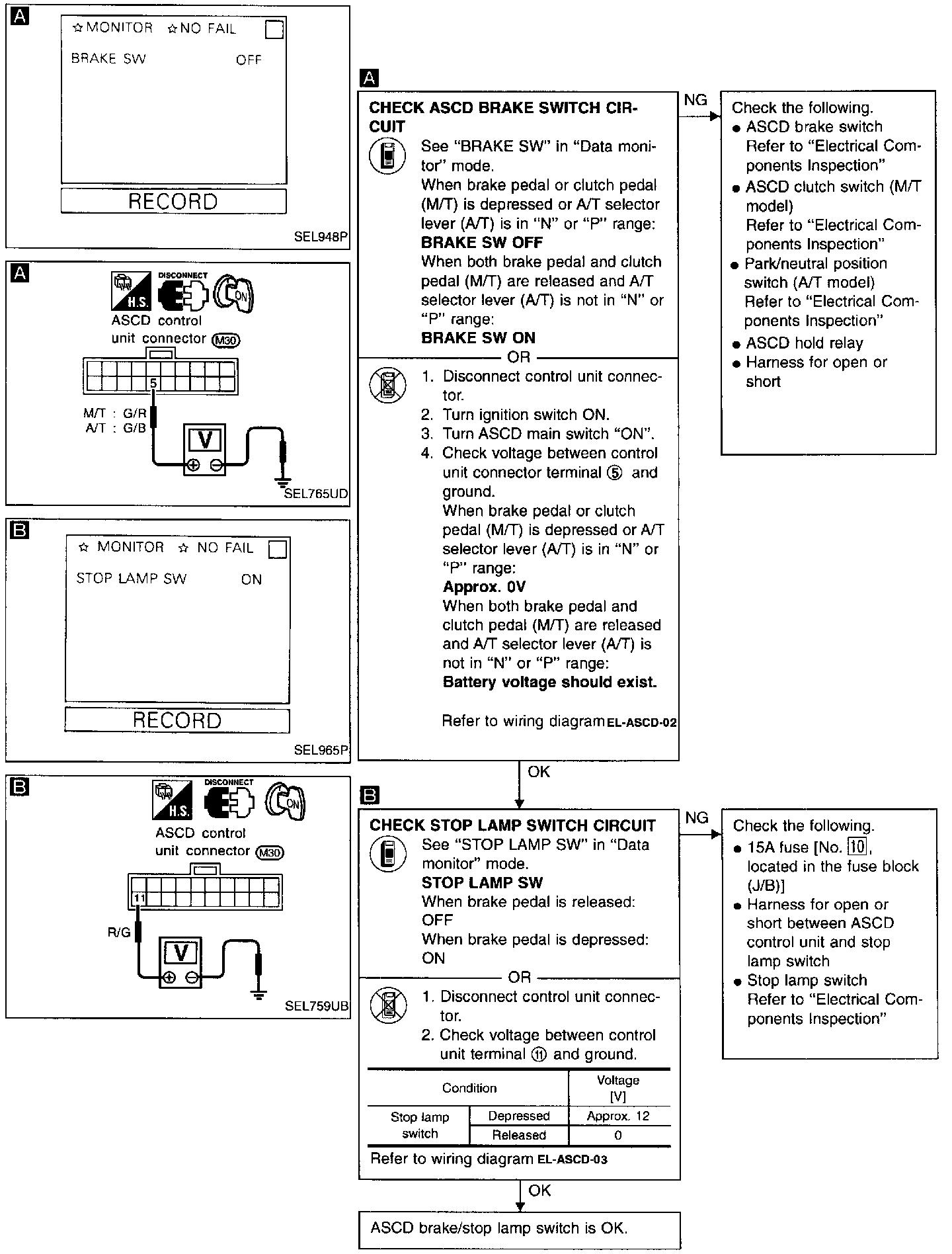

Diagnostic Procedure 4 (ASCD Brake/Stop Lamp Switch Check)

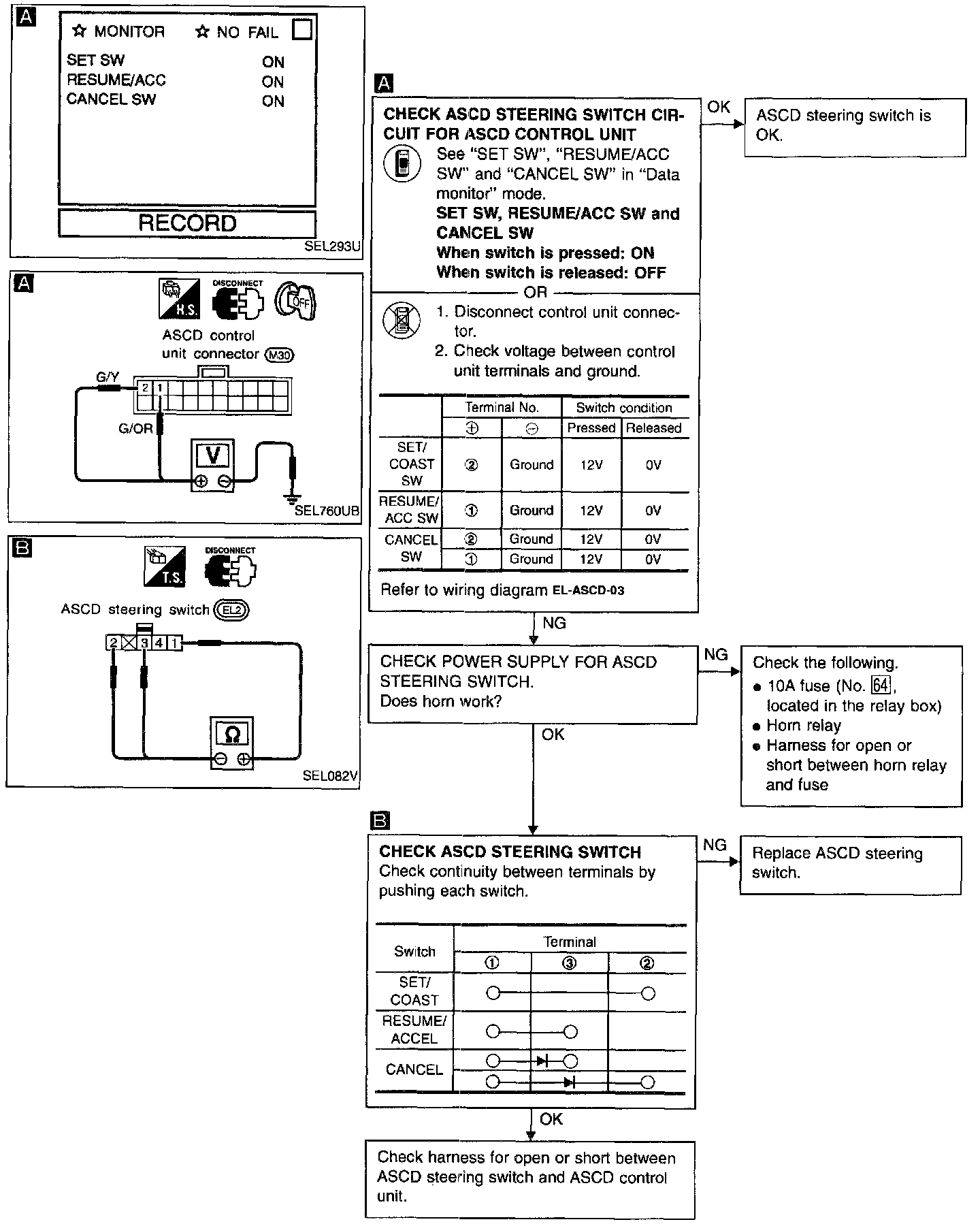

Diagnostic Procedure 5 (ASCD Steering Switch Check)

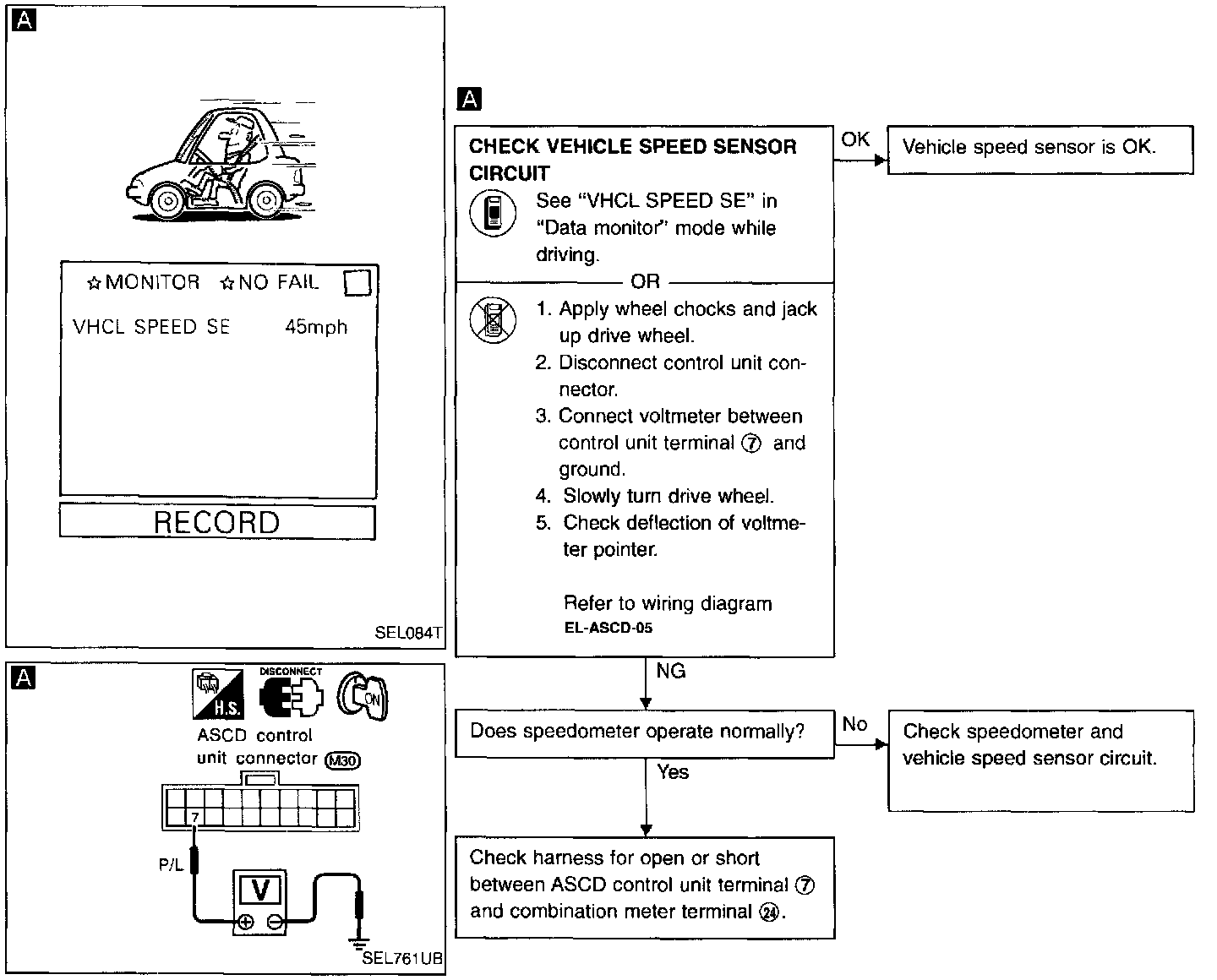

Diagnostic Procedure 6 (Vehicle Speed Sensor Check)

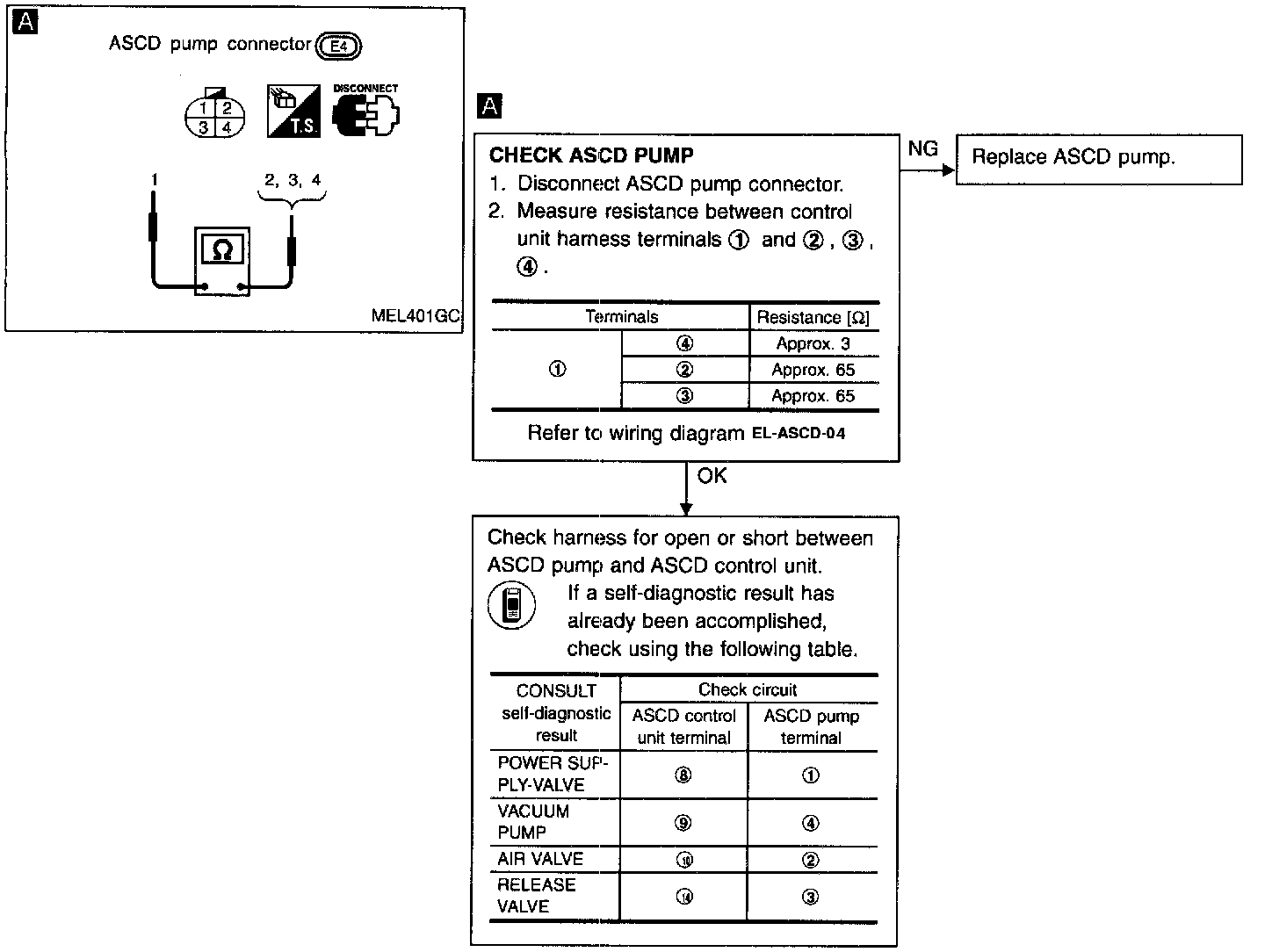

Diagnostic Procedure 7 (ASCD Pump Circuit Check)

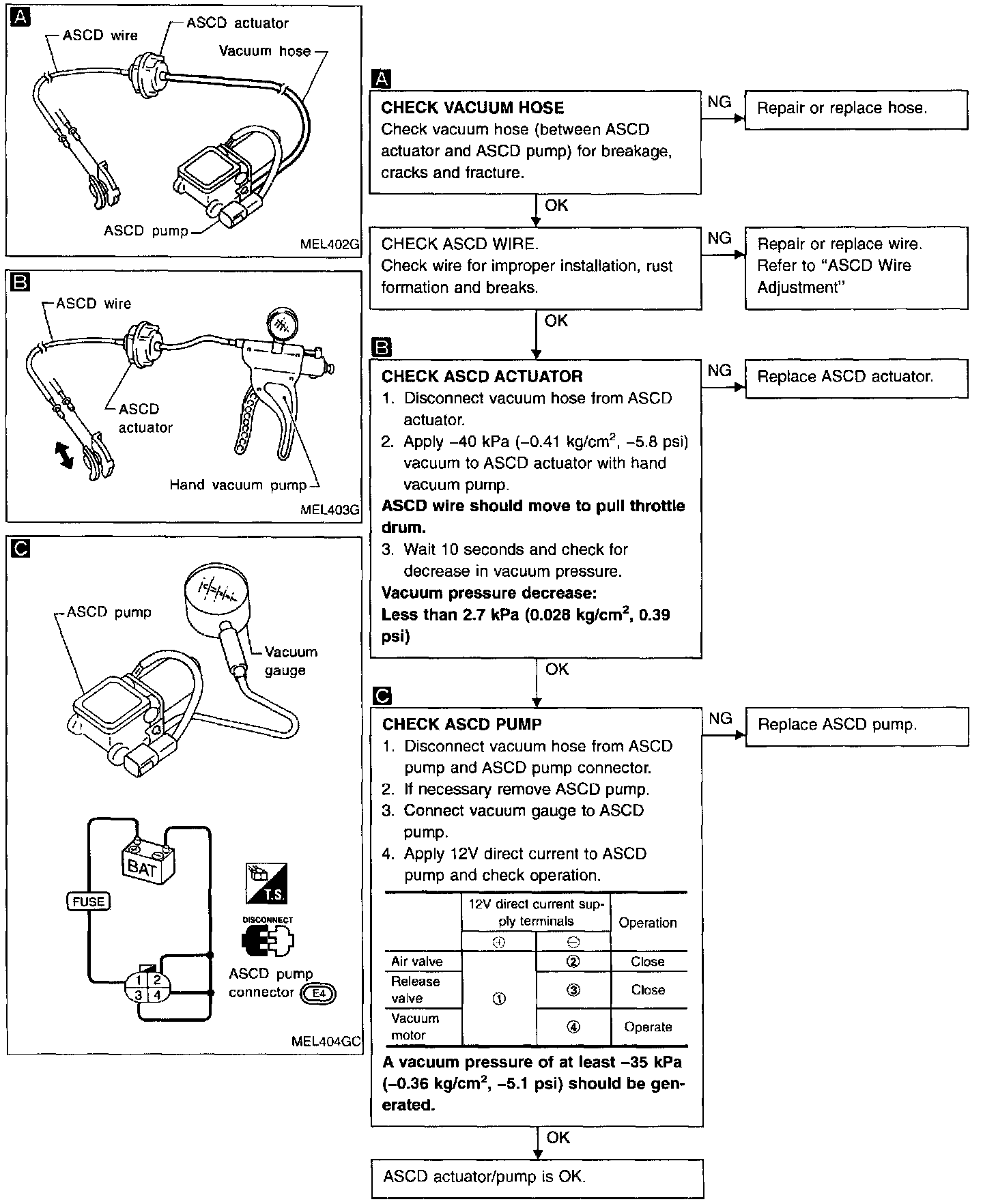

Diagnostic Procedure 8 (ASCD Actuator/Pump Check)
