Vacuum Hose Replacement

REMOVAL AND INSTALLATION





CAUTION: When installing vacuum hoses, pay attention to the following points:
- Do not apply any oil or lubricants to vacuum hose and check valve.

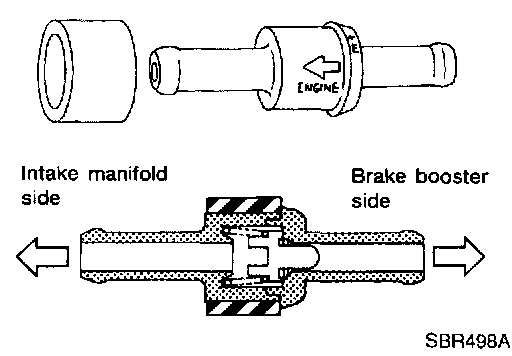

- Insert vacuum tube into vacuum hose as shown.





- Install check valve, paying attention to its direction.
