Vacuum Brake Booster Check Valve: Testing and Inspection

INSPECTION
Hoses And Connectors
Check vacuum lines, connections and check valve for airtightness, improper attachment chafing and deterioration.

Check Valve

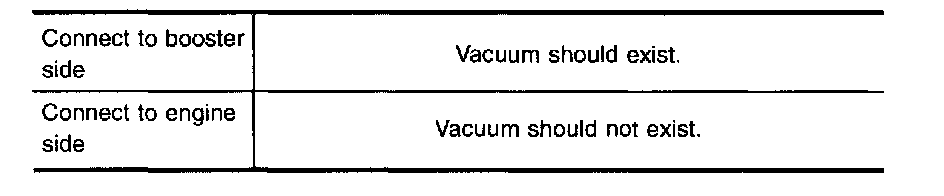

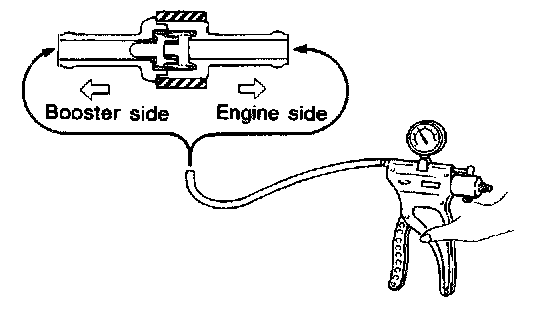

Check vacuum with a vacuum pump.
